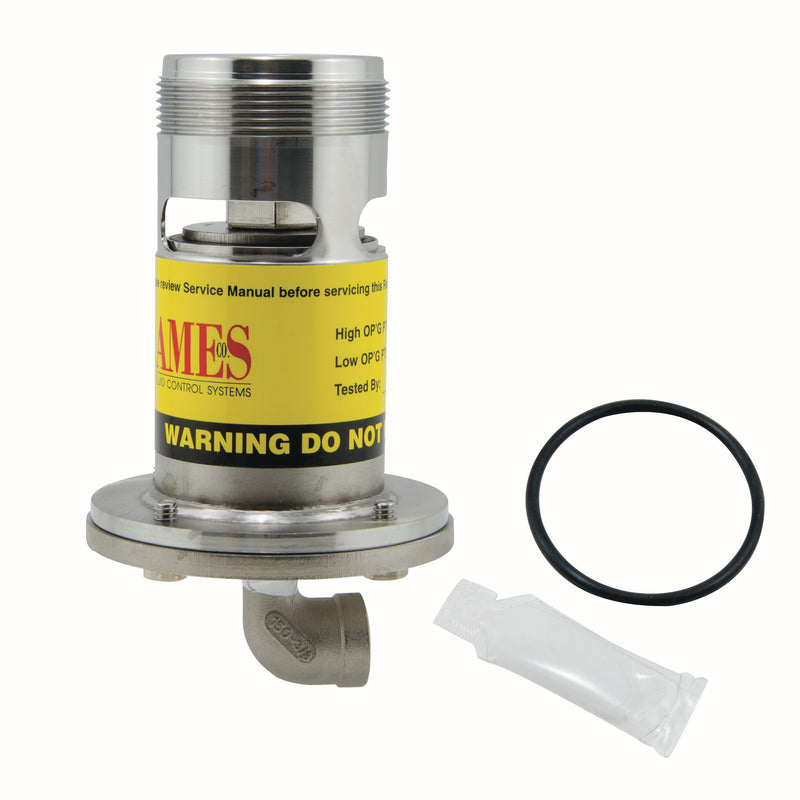

The Watts RK 994/994RPDA-VT is a genuine total relief valve kit for 2 1/2" to 10" 994 / 994RPDA reduced pressure zone (RPZ) backflow preventers.
This total relief valve repair kit provides all the parts necessary to repair or replace the relief valve assembly on a 2 1/2 to 10 inch reduced pressure zone assembly backflow preventer, model 994 and reduced pressure detector assembly backflow preventer, model 994RPDA. This kit consists of body, disc, piston diaphragm assembly, hex head bolt, disc retainer, sleeve, bottom bolt, shut-off plate, and bottom flange.
Features
- Factory replacement kit
- No special tools required for servicing
- All parts are made of high quality materials
- Parts are specific to valve size
Common Questions
- Will this kit fit my valve?
- The RK 994/994RPDA-VT fits 2 1/2", 3", 4", 6", 8" and 10" sizes of Watts series 994 / 994RPDA. Kits are size- and series-specific, so match the model stamped on your valve body or cover before ordering.
- What's included in this kit?
- This is a total relief valve kit. Kit consists of: body, disc, piston diaphragm assembly, hex head bolt, disc retainer, sleeve, bottom bolt, shut-off plate, and bottom flange.
- Are these genuine Watts parts?
- Yes. This is the factory RK 994/994RPDA-VT kit built with genuine Watts OEM components. Aftermarket parts can void your assembly approval and are commonly rejected by inspectors at annual test time.
- My relief valve failed the test — is this the right kit?
- Yes. A relief valve that opens late, weeps continuously or fails to open is a relief valve fault, and this total relief valve kit carries those parts for 994 / 994RPDA. If the checks also failed, a total repair kit rebuilds every subassembly at once.
Specifications
-
Type: RPZ
-
Connection: Flanged
-
Country of Origin: United States
-
Warranty: 1 Year Limited
-
MPN: RK 994/994RPDA-VT
-
Lead-Free: No
-
Product Role: repair_kit
-
Kit Type: Total Relief Valve Kit
-
Fits Brand: Watts
-
Fits Valve Series: 994;994RPDA
-
Fits Valve Size: 2 1/2";3";4";6";8";10"
-
Used With: 2 1/2" 994;2 1/2" 994RPDA;3" 994;3" 994RPDA;4" 994;4" 994RPDA;6" 994;6" 994RPDA;8" 994;8" 994RPDA;10" 994;10" 994RPDA
-
Kit Contents: Kit consists of: body, disc, piston diaphragm assembly, hex head bolt, disc retainer, sleeve, bottom bolt, shut-off plate, and bottom flange.
-
Watts Ordering Code: 0888840
-
Genuine OEM Parts: Yes
