Watts RK 009M2-RT 2 RPZ Backflow Preventer

The Watts RK 009M2-RT 2 is a genuine total rubber parts kit for 2" 009M2 reduced pressure zone (RPZ) backflow preventers. It features a rubber seat.

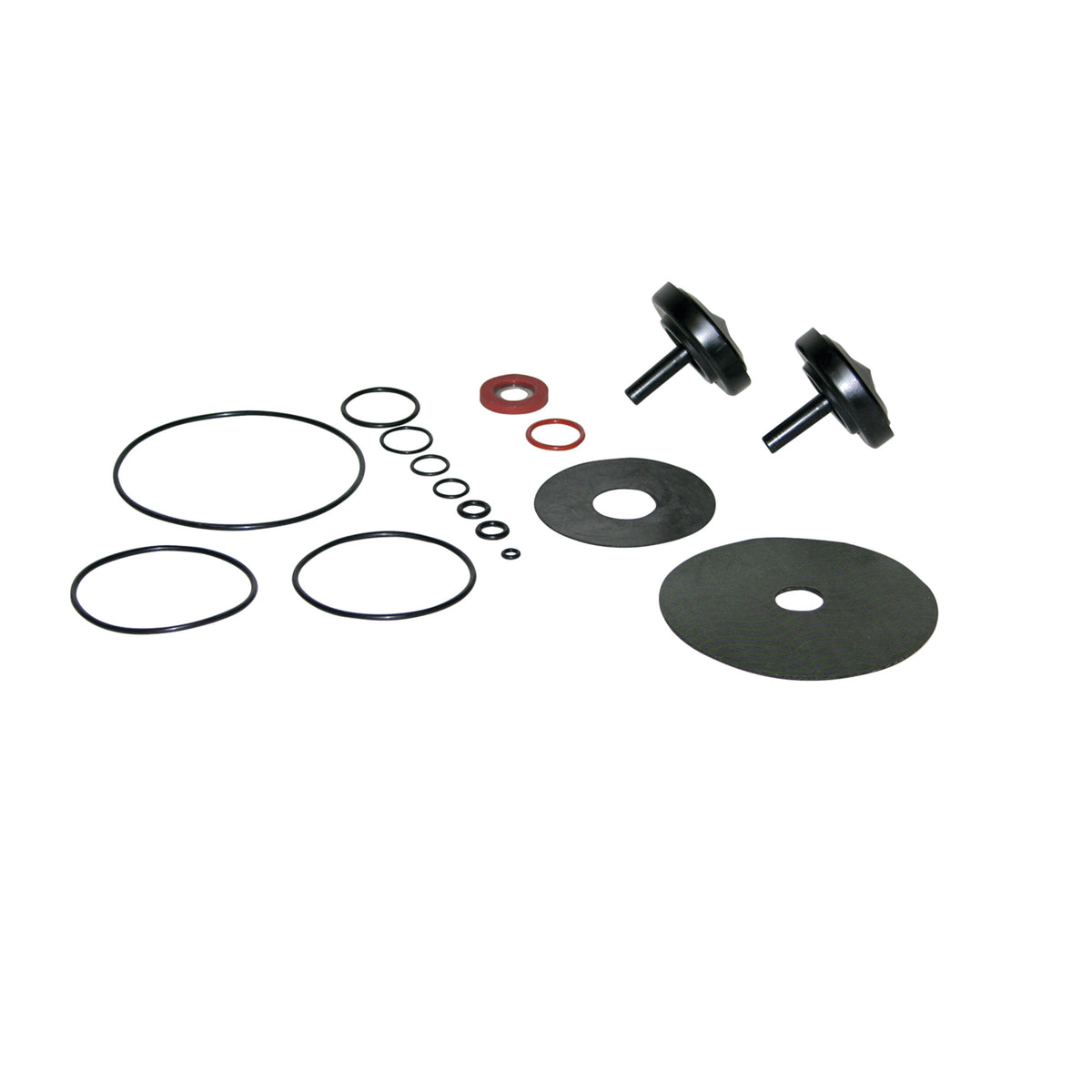

The reduced pressure zone total rubber parts kit for the 2 inch 009M2 Series consist of two check assembly o-rings, two disc assemblies, one cover o-ring, one relief valve diaphragm, relief valve seat o-ring, one sensing passage o-ring, one diaphragm plate o-ring, one relief upper and one lower stem o-ring, one relief valve disc assembly and one bleed screw o-ring.

Features

• 1" 009 M2 reduced pressure zone total rubber parts kit
• All check valve and relief valve O-Rings
• Two disc assemblies, one relief valve disc assembly
• Diaphragm

Common Questions

Will this kit fit my valve?

The RK 009M2-RT 2 fits the 2" size of Watts series 009M2, design revision M2 only. Watts changed internal parts between revisions, so check the model stamped on your valve body or cover before ordering.

What's included in this kit?

This is a total rubber parts kit. Kit consists of: two check assembly o-rings, two disc assemblies, one cover o-ring, one relief valve diaphragm, relief valve seat o-ring, one sensing passage o-ring, one diaphragm plate o-ring, one relief upper and one lower stem o-ring, one relief valve disc assembly and one bleed screw o-ring.

Are these genuine Watts parts?

Yes. This is the factory RK 009M2-RT 2 kit built with genuine Watts OEM components. Aftermarket parts can void your assembly approval and are commonly rejected by inspectors at annual test time.

Which kit do I need if my relief valve failed the test?

For a relief valve fault on 009M2, order the RV kit for rubber parts only or the VT kit to replace the complete relief valve assembly. This total rubber parts kit covers a different part of the assembly.

Specifications

• Type: RPZ
• Seat / Seal Material: Rubber
• Pack Quantity: 24
• Country of Origin: United States
• Warranty: 1 Year Limited
• MPN: RK 009M2-RT 2
• Lead-Free: No
• Product Role: repair_kit
• Kit Type: Total Rubber Parts Kit
• Fits Brand: Watts
• Fits Valve Series: 009
• Fits Model Revision: M2
• Fits Valve Size: 2"
• Used With: 2" 009M2
• Kit Contents: Kit consists of: two check assembly o-rings, two disc assemblies, one cover o-ring, one relief valve diaphragm, relief valve seat o-ring, one sensing passage o-ring, one diaphragm plate o-ring, one relief upper and one lower stem o-ring, one relief valve disc assembly and one bleed screw o-ring.
• Watts Ordering Code: 0887547
• Genuine OEM Parts: Yes
