The Watts RK 009M2-RT 1 1/4-1 1/2 is a genuine total rubber parts kit for 1 1/4" to 1 1/2" 009M2 reduced pressure zone (RPZ) backflow preventers. It features a rubber seat.

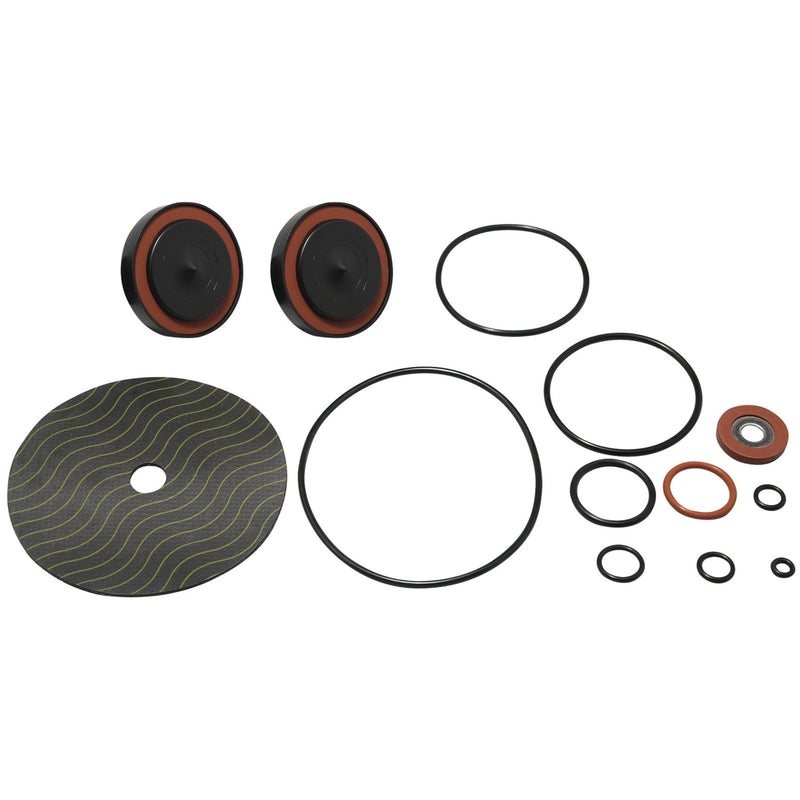

This reduced pressure zone total rubber parts kit for the 1 1/4 to 1 1/2 inch 009M2 Series consist of two check assembly o-rings, two disc assemblies, one cover o-ring, one relief valve diaphragm, relief valve seat o-ring, one sensing passage o-ring, one diaphragm plate o-ring, one relief upper and one lower stem o-ring, one relief valve disc assembly and one bleed screw o-ring.
Features
- 1 1/4 to 1 1/2" 009 M2 reduced pressure zone total rubber parts kit
- All check valve and relief valve O-Rings
- Two disc assemblies, one relief valve disc assembly
- Diaphragm
Common Questions
- Will this kit fit my valve?
- The RK 009M2-RT 1 1/4-1 1/2 fits 1 1/4" and 1 1/2" sizes of Watts series 009M2, design revision M2 only. Watts changed internal parts between revisions, so check the model stamped on your valve body or cover before ordering.
- What's included in this kit?
- This is a total rubber parts kit. Kit consists of: two check assembly o-rings, two disc assemblies, one cover o-ring, one relief valve diaphragm, relief valve seat o-ring, one sensing passage o-ring, one diaphragm plate o-ring, one relief upper and one lower stem o-ring, one relief valve disc assembly and one bleed screw o-ring.
- Are these genuine Watts parts?
- Yes. This is the factory RK 009M2-RT 1 1/4-1 1/2 kit built with genuine Watts OEM components. Aftermarket parts can void your assembly approval and are commonly rejected by inspectors at annual test time.
- Which kit do I need if my relief valve failed the test?
- For a relief valve fault on 009M2, order the RV kit for rubber parts only or the VT kit to replace the complete relief valve assembly. This total rubber parts kit covers a different part of the assembly.
Specifications
-
Type: RPZ
-
Seat / Seal Material: Rubber
-
Pack Quantity: 24
-
Country of Origin: United States
-
Warranty: 1 Year Limited
-
MPN: RK 009M2-RT 1 1/4-1 1/2
-
Lead-Free: No
-
Product Role: repair_kit
-
Kit Type: Total Rubber Parts Kit
-
Fits Brand: Watts
-
Fits Valve Series: 009
-
Fits Model Revision: M2
-
Fits Valve Size: 1 1/4";1 1/2"
-
Used With: 1 1/4" 009M2;1 1/2" 009M2
-
Kit Contents: Kit consists of: two check assembly o-rings, two disc assemblies, one cover o-ring, one relief valve diaphragm, relief valve seat o-ring, one sensing passage o-ring, one diaphragm plate o-ring, one relief upper and one lower stem o-ring, one relief valve disc assembly and one bleed screw o-ring.
-
Watts Ordering Code: 0887309
-
Genuine OEM Parts: Yes
