Specifications
Description

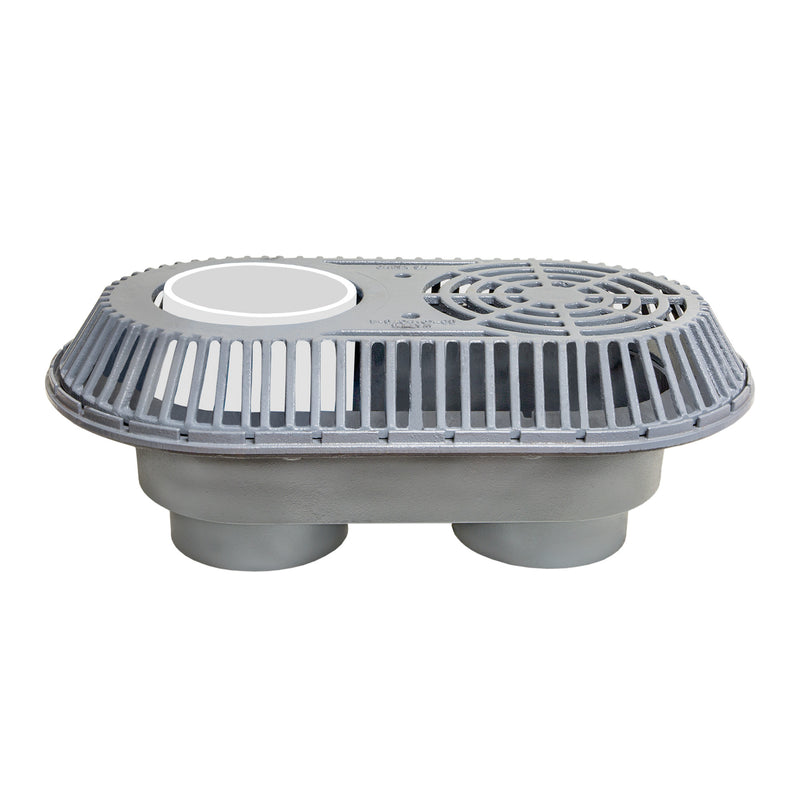

The Watts RD-808-CT is a epoxy-coated cast iron roof drain with a 8" No-Hub outlet. It features a cast iron body.
This epoxy-coated cast iron, dual outlet, large capacity roof drain and overflow combination features a flashing clamp with integral gravel stop, a 4 inch high internal overflow standpipe, a secured, ductile iron, cut-through overflow dome, an 8 inch no hub outlet and 304 square inches of free area. Options include an underdeck clamp, a deck flange with adjustable extension, a stainless steel ballast guard and vandal proofing. Its single cut-out design requires less roof cutting allowing for faster and lower cost installation.
Features
- Dual outlet
- 8" no hub
- 304 SQ IN free area
- Internal stand pipe
Common Questions
- What pipe does it connect to?
- It has a 8" No-Hub outlet.
- What is it made of?
- It has a cast iron body with a epoxy coating.
Specifications
- Size: 8"
- Outlet Size: 8"
- Connection: No-Hub
- Body Material: Cast Iron
- Application: Drainage
- Warranty: 1 Year Limited
- MPN: RD-808-CT
- Drain Role: Combination Primary & Overflow
- Top Material: Ductile Iron
- Spec.Coating: Epoxy
- Flashing Clamp: Yes
- Gravel Stop: Yes
- Underdeck Clamp: Yes
Product Information
| SKU | UPC | Warranty | Spec Sheet |
|---|---|---|---|
| RD-808-CT | 098268164336 | 1 Year Limited | Download |
Dimensions
| Size Nominal | 8" | Outlet Size | 8" |
| End Connection | No-Hub | — | — |
Details
| Series | RD-800 | Body Material | Cast Iron |
| Application | Drainage | Flashing Clamp | Yes |
| Drain Role | Combination Primary & Overflow | Coating | Epoxy |
| Gravel stop | Yes | Top material | Ductile Iron |
| Underdeck clamp | Yes | — | — |
