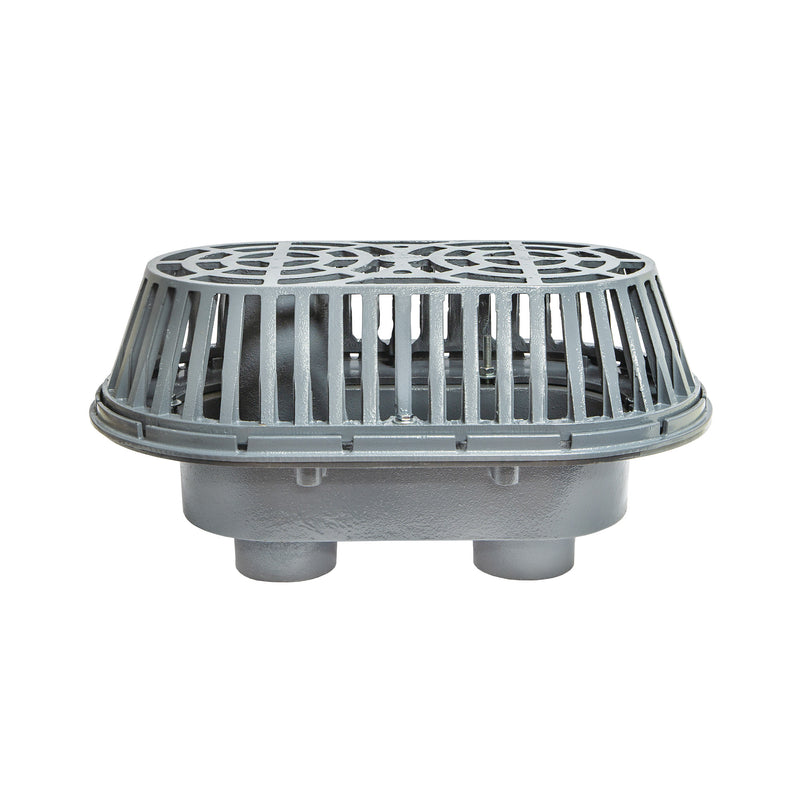

Watts RD-706 Roof Drain, Cast Iron, No-Hub

The Watts RD-706 is a epoxy-coated cast iron roof drain with a 6" No-Hub outlet. It features a cast iron body.

This dual outlet, epoxy-coated cast iron roof drain/overflow combination features a flashing clamp, integral gravel stop, a 4 inch high internal overflow standpipe, secured ductile iron dome and 6 inch no hub outlets. Underdeck clamp, deck flange, ballast guard, 2 inch standpipe and various dome options are also available.

Features

• Cast iron
• Gravel stop
• Ductile iron dome
• No hub

Common Questions

What pipe does it connect to?

It has a 6" No-Hub outlet.

What is it made of?

It has a cast iron body with a epoxy coating.

Specifications

• Size: 6"
• Outlet Size: 6"
• Connection: No-Hub
• Body Material: Cast Iron
• Application: Drainage
• Country of Origin: China
• Warranty: 1 Year Limited
• MPN: RD-706
• Drain Role: Combination Primary & Overflow
• Top Material: Ductile Iron
• Spec.Coating: Epoxy
• Flashing Clamp: Yes
• Gravel Stop: Yes
• Underdeck Clamp: Yes
