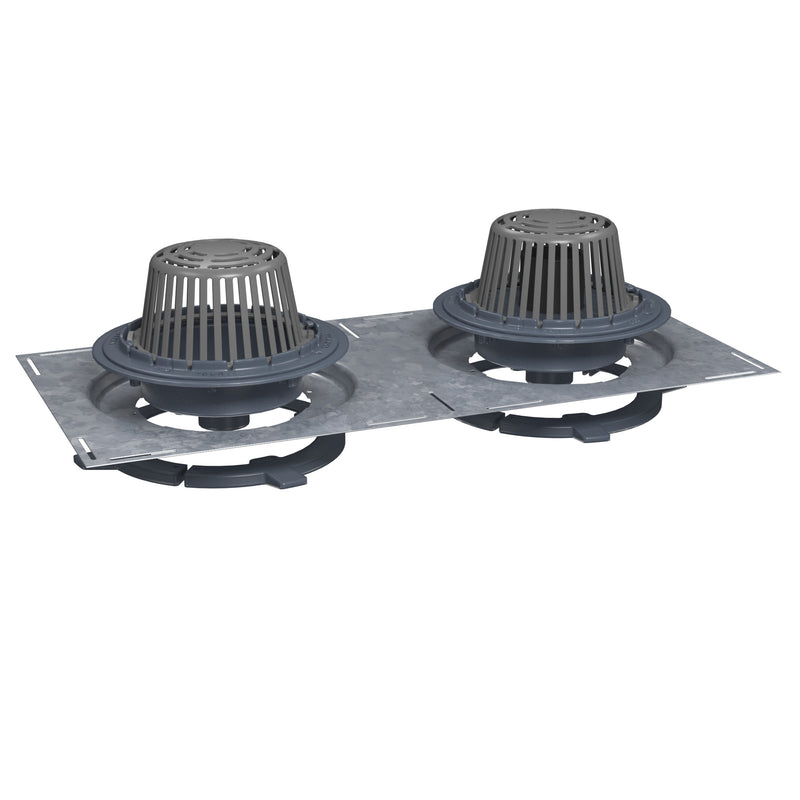

Watts RD-354-D-F2-K80-L Roof Drain, Cast Iron, No-Hub

The Watts RD-354-D-F2-K80-L is a epoxy-coated cast iron roof drain with a 4" No-Hub outlet. It features a cast iron body.

This Watts combination primary and overflow roof drain is manufactured from epoxy coated cast iron for long life and durability. It features a flashing clamp, underdeck clamp, integral gravel stop, a 4-1/2 inch internal overflow standpipe and a secured aluminum, vandal proof dome. A 4 inch no hub outlet allows for quick and easy installation.

Features

• 4" NH outlet
• Epoxy coated cast iron body
• Aluminum dome
• Flashing clamp

Common Questions

What pipe does it connect to?

It has a 4" No-Hub outlet.

What is it made of?

It has a cast iron body with a epoxy coating.

Specifications

• Size: 4"
• Outlet Size: 4"
• Connection: No-Hub
• Body Material: Cast Iron
• Application: Drainage
• Country of Origin: China
• Warranty: 1 Year Limited
• MPN: RD-354-D-F2-K80-L
• Drain Role: Combination Primary & Overflow
• Top Material: Cast Iron
• Spec.Coating: Epoxy
• Flashing Clamp: Yes
• Gravel Stop: Yes
• Underdeck Clamp: Yes
