Specifications
Description

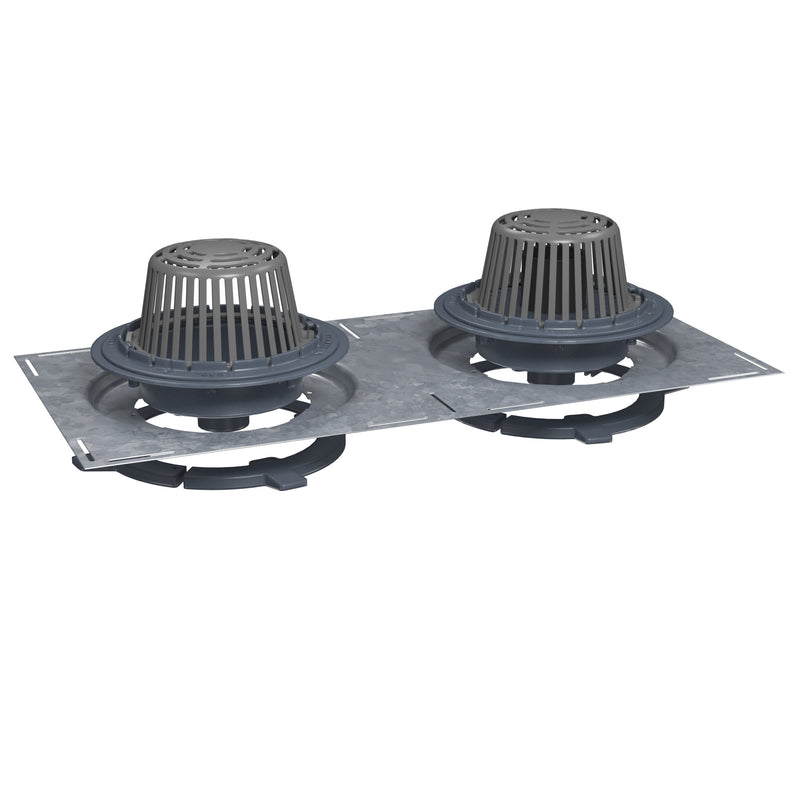

The Watts RD-354-D-F2-K80 is a epoxy-coated cast iron roof drain with a 4" No-Hub outlet. It features a cast iron body.
This Watts combination primary and overflow roof drain is manufactured from epoxy coated cast iron for long life and durability. It features a flashing clamp, underdeck clamp, integral gravel stop, a 4-1/2 inch internal overflow standpipe and a secured aluminum dome. A 4 inch no hub outlet allows for quick and easy installation.
Features
- 4" NH outlet
- Epoxy coated cast iron body
- Aluminum dome
- Flashing clamp
Common Questions
- What pipe does it connect to?
- It has a 4" No-Hub outlet.
- What is it made of?
- It has a cast iron body with a epoxy coating.
Specifications
- Size: 4"
- Outlet Size: 4"
- Connection: No-Hub
- Body Material: Cast Iron
- Application: Drainage
- Country of Origin: China
- Warranty: 1 Year Limited
- MPN: RD-354-D-F2-K80
- Drain Role: Combination Primary & Overflow
- Top Material: Cast Iron
- Spec.Coating: Epoxy
- Flashing Clamp: Yes
- Gravel Stop: Yes
- Underdeck Clamp: Yes
Product Information
| SKU | UPC | Country of Origin | Warranty | Spec Sheet |
|---|---|---|---|---|
| RD-354-D-F2-K80 | 098268622324 | China | 1 Year Limited | Download |
Dimensions
| Size Nominal | 4" | Outlet Size | 4" |
| End Connection | No-Hub | — | — |
Details
| Series | RD-350-F2 | Body Material | Cast Iron |
| Application | Drainage | Flashing Clamp | Yes |
| Drain Role | Combination Primary & Overflow | Coating | Epoxy |
| Gravel stop | Yes | Top material | Cast Iron |
| Underdeck clamp | Yes | — | — |
