Specifications
Description

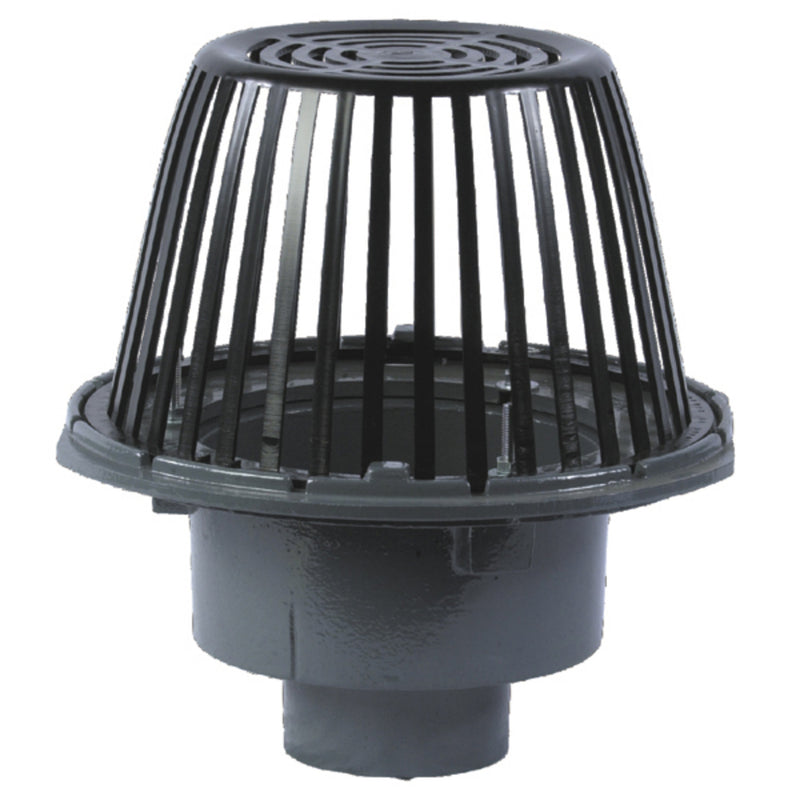

The Watts RD-103-B-D-K-R is a epoxy-coated roof drain with a 3" No-Hub outlet.
This Watts large area roof drain is engineered with epoxy coated cast iron for long life and durability. The self-locking ductile iron dome allows for easy maintenance. It features a flashing clamp with integral gravel guards to ensure reliable high-volume drainage, a sump receiver, a 2 inch external water dam and an underdeck clamp. A 3 inch no hub outlet allows for quick and easy for installation.
Features
- Epoxy coated cast iron
- 2" External water dam
- Underdeck clamp
- Ductile iron dome
Common Questions
- What pipe does it connect to?
- It has a 3" No-Hub outlet.
- What is it made of?
- It has a epoxy coating.
Specifications
- Size: 3"
- Outlet Size: 3"
- Connection: No-Hub
- Application: Drainage
- Country of Origin: China
- Warranty: 1 Year Limited
- MPN: RD-103-B-D-K-R
- Drain Role: Primary
- Top Material: Ductile Iron
- Spec.Coating: Epoxy
- Flashing Clamp: Yes
- Underdeck Clamp: Yes
Product Information
| SKU | UPC | Country of Origin | Warranty | Spec Sheet |
|---|---|---|---|---|
| RD-103-B-D-K-R | 098268300222 | China | 1 Year Limited | Download |
Dimensions
| Size Nominal | 3" | Outlet Size | 3" |
| End Connection | No-Hub | — | — |
Details
| Series | RD-100 | Application | Drainage |
| Flashing Clamp | Yes | Drain Role | Primary |
| Coating | Epoxy | Top material | Ductile Iron |
| Underdeck clamp | Yes | — | — |
