Watts QT-131-D-TAS Carrier, Cast Iron, NPT

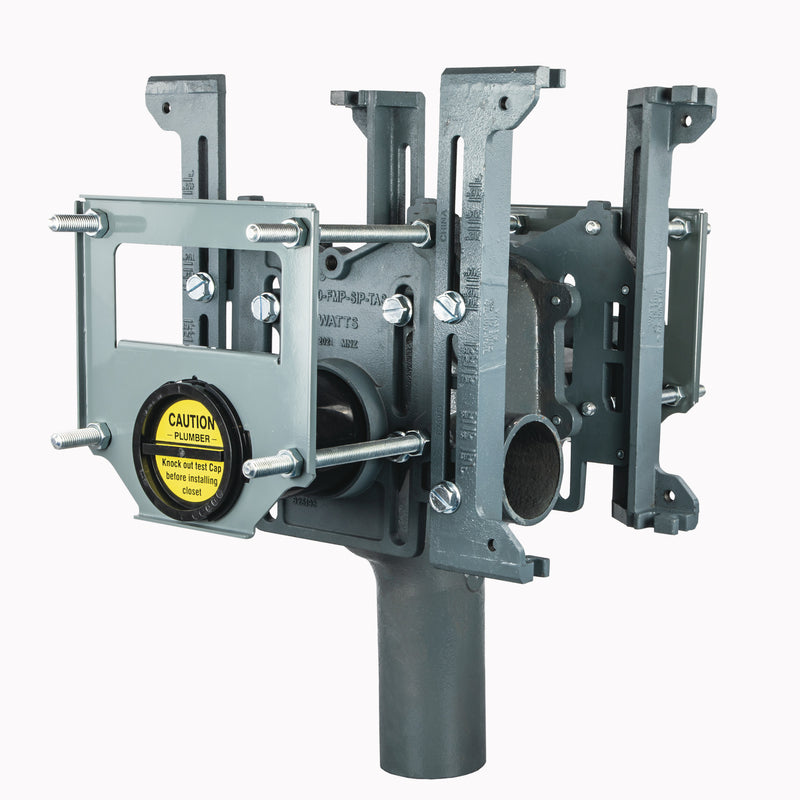

The Watts QT-131-D-TAS is a double vertical cast iron carrier. It features a cast iron body.

This Watts QT QuickTurn™ back-to-back vertical, wall mount carrier for 4 inch TAS bowl outlet rough-in is designed to improve pre-fab efficiency. The QT carrier uprights marry effectively with angle iron or mounting rails for multi-carrier shop assembly and transport to job site. One-size bolts and nuts eliminate the need to change out sockets during installation. The smooth ABS QT nipple with integral test cap seals with an O-ring, eliminating the need for thread sealants and creating a repeatable seal for adjustability from outside the finished wall. The QT wall plate aligns flush with the finished wall and locks the quarter-turn nipple in at the proper depth. Manufactured from epoxy coated cast iron, the QT carrier fitting, patent pending faceplate assembly and foot supports provide long life and durability. It features 4 inch NH waste and 2 inch NH vent connections, 4 inch NH side inlet(s), a bowl gasket, plated hardware and chrome cap nuts and is adjustable to various heights.

Features

• Back-to-back vertical
• Wall mounted for TAS 4" rough-In
• 4" NH side inlet(s)
• Adjustable ABS nipple

Common Questions

Will it fit my waste run?

This is the vertical configuration. Confirm the hand against the rough-in before ordering — carriers are not reversible on site.

Specifications

• Connection: NPT
• Body Material: Cast Iron
• Application: Drainage
• Country of Origin: China
• Warranty: 1 Year Limited
• MPN: QT-131-D-TAS
• Orientation: Vertical
• Single / Double: Double
• Spec.Adjustable: Yes
• Spec.Coating: Epoxy
