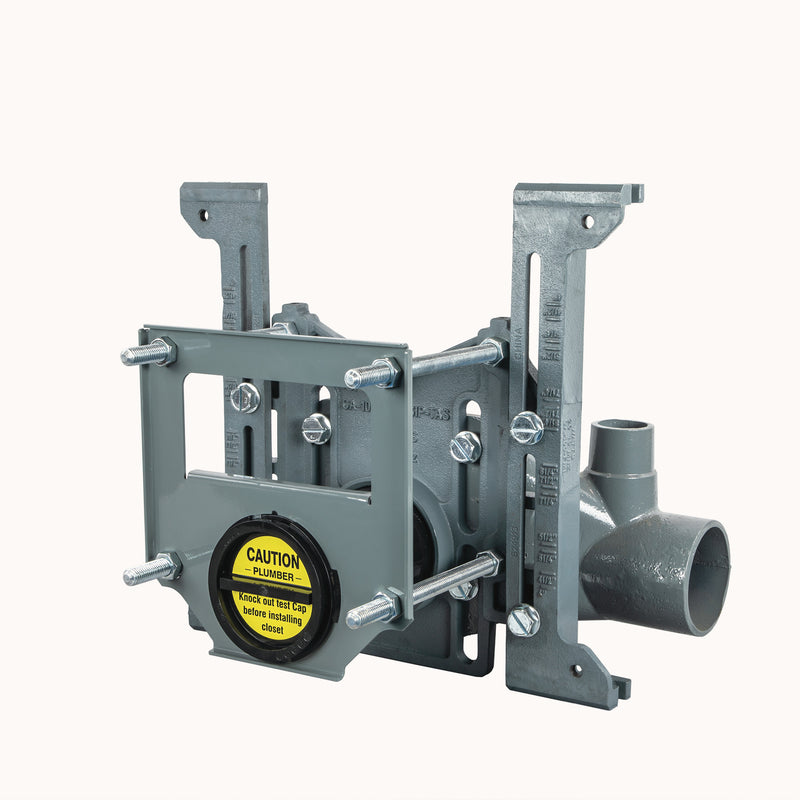

Watts QT-101-R-TAS Carrier, Cast Iron, No-Hub

The Watts QT-101-R-TAS is a single horizontal right cast iron carrier. It features a cast iron body.

This Watts QT QuickTurn™ right horizontal, wall mount carrier for 4 inch TAS bowl outlet rough-in is designed to improve pre-fab efficiency. The QT carrier uprights marry effectively with angle iron or mounting rails for multi-carrier shop assembly and transport to job site. One-size bolts and nuts eliminate the need to change out sockets during installation. The smooth ABS QT nipple with integral test cap seals with an O-ring, eliminating the need for thread sealants and creating a repeatable seal for adjustability from outside the finished wall. The QT wall plate aligns flush with the finished wall and locks the quarter-turn nipple in at the proper depth. Manufactured from epoxy coated cast iron, the QT carrier fitting, patent pending faceplate assembly and foot supports provide long life and durability. It features 4 inch no hub waste and 2 inch no hub vent connections, a neoprene bowl gasket, plated hardware and chrome cap nuts, and is adjustable to various heights.

Features

• Right horizontal
• Epoxy coated cast iron
• Adjustable ABS nipple
• Wall mounted for TAS 4" rough-In

Common Questions

Will it fit my waste run?

This is the horizontal right configuration. Confirm the hand against the rough-in before ordering — carriers are not reversible on site.

Specifications

• Connection: No-Hub
• Body Material: Cast Iron
• Application: Drainage
• Country of Origin: China
• Warranty: 1 Year Limited
• MPN: QT-101-R-TAS
• Orientation: Horizontal Right
• Single / Double: Single
• Spec.Adjustable: Yes
• Spec.Coating: Epoxy
