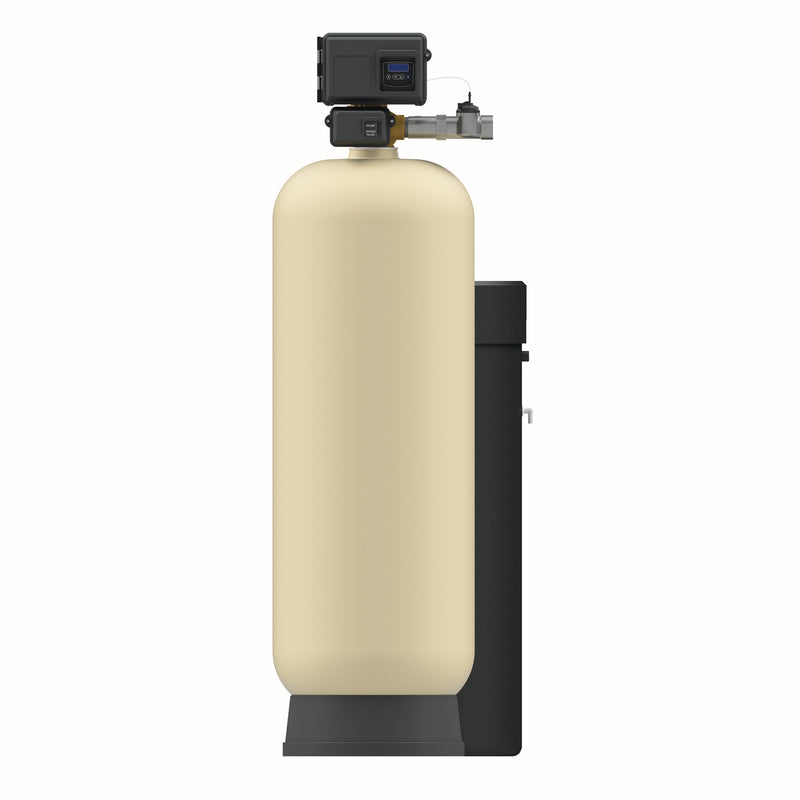

Watts PWS20131G11 Water Softener, Brass, FNPT

The Watts PWS20131G11 is a cation resin complete system. It features a brass body.

This simplex water softening system is a high efficient conventional cation exchange type water softener. It is designed for the point of use or point of entry applications where the benefits of softened water is required. The system has a 21 inch diameter mineral tank, contains 7 cubic feet of high capacity ion exchange resin, and has a peak flow rate of up to 77 gallons per minute. It has a 2" FNPT inlet and outlet and a 1" MNPT drain connection. This unit exchanges scale forming calcium and magnesium ions with non-scale forming sodium ions to create soft water for a variety of applications. This high quality system comes with a mineral tank, resin, and control valve that is NSF and ANSI certified. The corrosion resistant brass control valve is operated by an electronic controller that stores key operational history that can be accessed by the user. The system is metered demand initiated so regeneration only occurs when necessary which saves time, water, and salt.

Features

• High capacity blonde resin for reduced color throw
• Durable brass body control valve
• Digital valve controller stores key operational history
• Corrosion resistant fiberglass mineral tank

Common Questions

What does it filter out?

It uses cation resin media.

What flow rate does it support?

Rated service flow is 77 GPM.

Specifications

• Size: 2"
• Inlet Size: 2"
• Outlet Size: 2"
• Connection: FNPT
• Connection Gender: Female
• Body Material: Brass
• Application: Water Treatment
• Country of Origin: United States
• Warranty: 1 Year Limited
• MPN: PWS20131G11
• Lead-Free: No
• System Role: Complete System
• Media Type: Cation Resin
• Service Flow (GPM): 77
