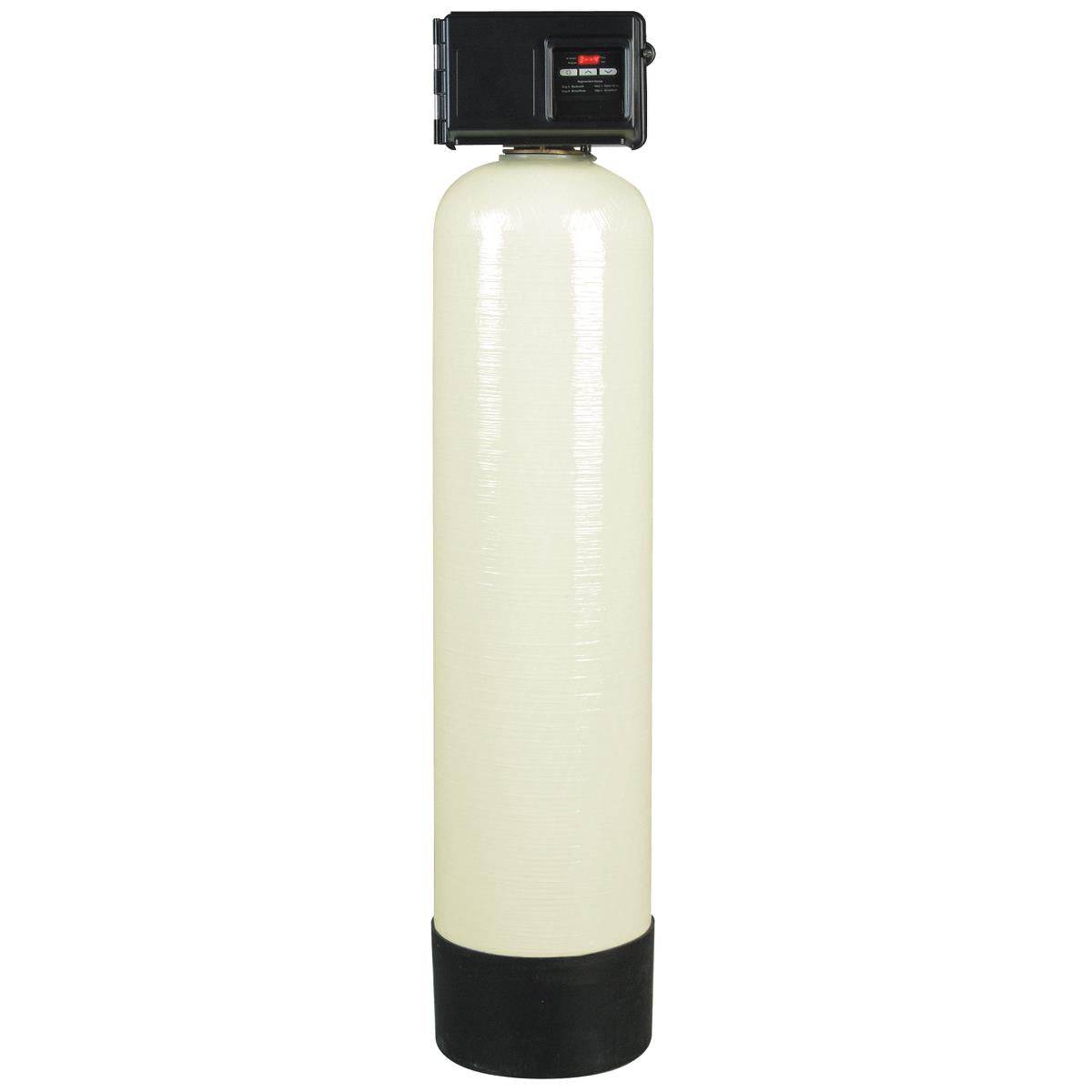

Watts PWM15121D10 1-1/2" Water Filtration System, Brass, FNPT

The Watts PWM15121D10 is a cation resin complete system rated at 5 micron. It features a brass body.

This is a highly effective, automatic backwashing, media filtration system for the removal of sediment and suspended solids from the water. It is suitable for commercial applications with peak flow rates up to 21 gallons per minute and has a media bed size of 3 cubic feet. The mineral tank is constructed of corrosion resistant fiberglass reinforced plastic and has a 14 inch diameter. This system has a 1 1/2" FNPT inlet and outlet and a 1" MNPT drain connection. The workhorse of this system is its specialized sediment filtration media, which has a nominal particle size removal of 3-5 micron. This media along with the tank and system control valve are NSF and ANSI certified. The digital control valve stores key operational history and is constructed of durable brass. This system is designed for point of use or point of entry applications where filtered water is required.

Features

• Specialized filtration media with three micron nominal particle size removal
• Durable brass body control valve
• Digital valve controller stores key operational history
• Corrosion resistant fiberglass mineral tank

Common Questions

What does it filter out?

It is a cation resin element rated at 5 micron.

What flow rate does it support?

Rated service flow is 21 GPM.

Specifications

• Size: 1-1/2"
• Inlet Size: 1-1/2"
• Outlet Size: 1-1/2"
• Connection: FNPT
• Connection Gender: Female
• Body Material: Brass
• Application: Water Treatment
• Country of Origin: United States
• Warranty: 1 Year Limited
• MPN: PWM15121D10
• Lead-Free: No
• System Role: Complete System
• Media Type: Cation Resin
• Micron Rating: 5 micron
• Service Flow (GPM): 21
