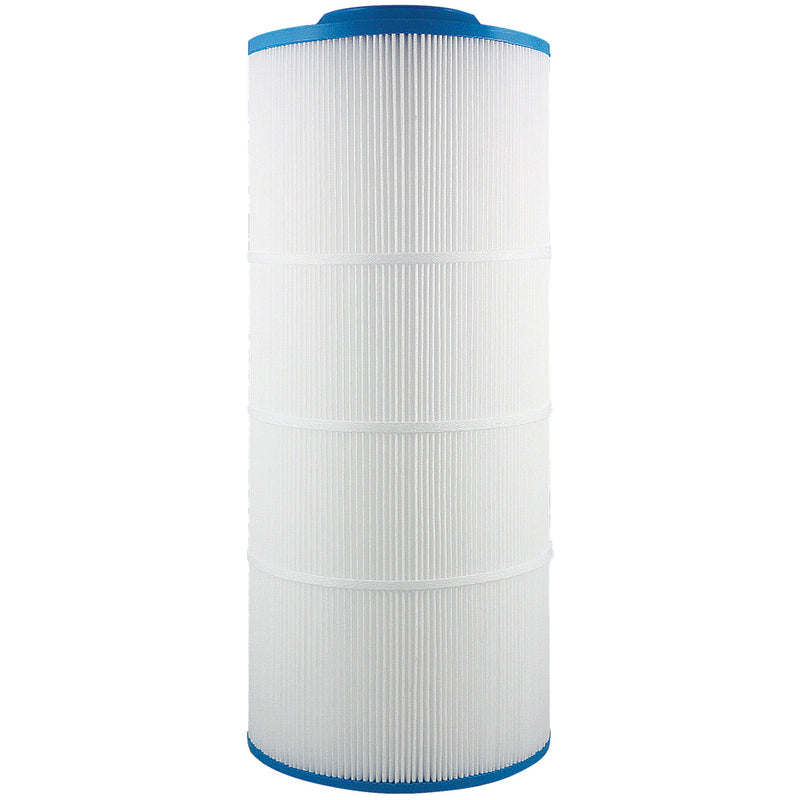

Watts PWJPL90M20 Cartridge

The Watts PWJPL90M20 is a sediment (melt blown) cartridge rated at 20 micron. It is rated to 40 psi and 40°F to 140°F.

This model 90, 20 micron pleated sediment filter features a greater surface area than a wound, spun or melt blown filter. Its lower pressure drop allows for increased flow rates and the use of a smaller filter housings to reduce capital equipment costs. The synthetic filter media is cellulose-free and contains no additives or binders which may cause foaming. The increased dirt holding capacity with longer life and fewer cartridge replacements reduces the filtration costs compared to other pleated cartridge suppliers. The thicker filter media has a greater capacity to capture and retain the particles compared to thin, more rigid media types which have less void space for particle retention. The temperature range is from 40 F to 140 F (4.4 C to 60 C) and the maximum water pressure is 40 psi.

Features

• Collects particles throughout the entire thickness of the filter
• 20 Microns filtration rating
• Cellulose-free synthetic filter media
• Rated for temperatures up to 140 degrees F

Common Questions

What does it filter out?

It is a sediment (melt blown) element rated at 20 micron.

Specifications

• Max Pressure (psi): 40
• Application: Water Treatment
• Country of Origin: China
• Warranty: 1 Year Limited
• MPN: PWJPL90M20
• Temperature: 40°F to 140°F
• Lead-Free: No
• System Role: Cartridge
• Media Type: Sediment (Melt Blown)
• Micron Rating: 20 micron
