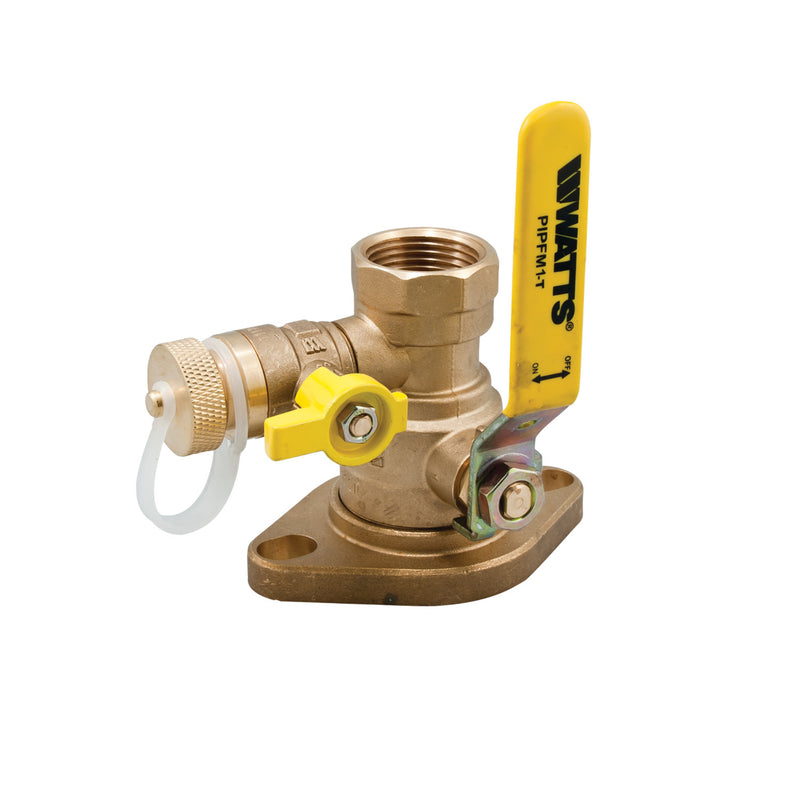

Watts PIPFM1-T 3/4 Ball Valve, Brass, Flanged

The Watts PIPFM1-T 3/4 is a 3/4" ball valve with Flanged connections. It features a brass body and a epdm seat. Rated to 600 psi and up to 406°F.

This 3/4 inch isolation pump is designed to facilitate circulator pump replacement or repairs while the integral purge port facilitates system purging. It features a swivel flange that allows the purge port to be positioned for optimal purging convenience, brass body and flange with a bottom loaded blowout proof stem, threaded NPT inlet and outlet and an adjustable packing gland. The pressure is rated 600 psi (28 bar) WOG and the maximum temperature is 406 F (208 C) at 100 psi (6.9 bar).

Features

• Brass body and flange
• Integral purge port saves time and money compared to purge stations made with ball valves, boiler drains, and copper tees
• NPT threaded end connection
• Ball valve isolation for circulator pumps

Common Questions

Can I use this on natural gas or propane?

No. This valve carries no fuel-gas listing, and code requires an ANSI Z21.15 / CSA listed valve for natural gas or LP. Use a Watts GBV series gas ball valve instead.

Is this rated for potable water?

No. This is a leaded model and cannot be installed in US potable-water systems. Watts builds a lead-free (LF-prefix) equivalent for potable service.

Specifications

• Type: Ball
• Size: 3/4"
• Inlet Size: 3/4"
• Outlet Size: 3/4"
• Connection: Flanged
• Body Material: Brass
• Seat / Seal Material: EPDM
• Max Pressure (psi): 600
• Ways: 2-Way
• Pack Quantity: 18
• Country of Origin: China
• Warranty: 1 Year Limited
• MPN: PIPFM1-T 3/4
• Temperature: up to 406°F
• Lead-Free: No
• Blowout-Proof Stem: Yes
• Handle Type: Lever
• Actuation: Manual
• Fuel Gas Rated: No
• Integral Drain / Waste Port: Yes
