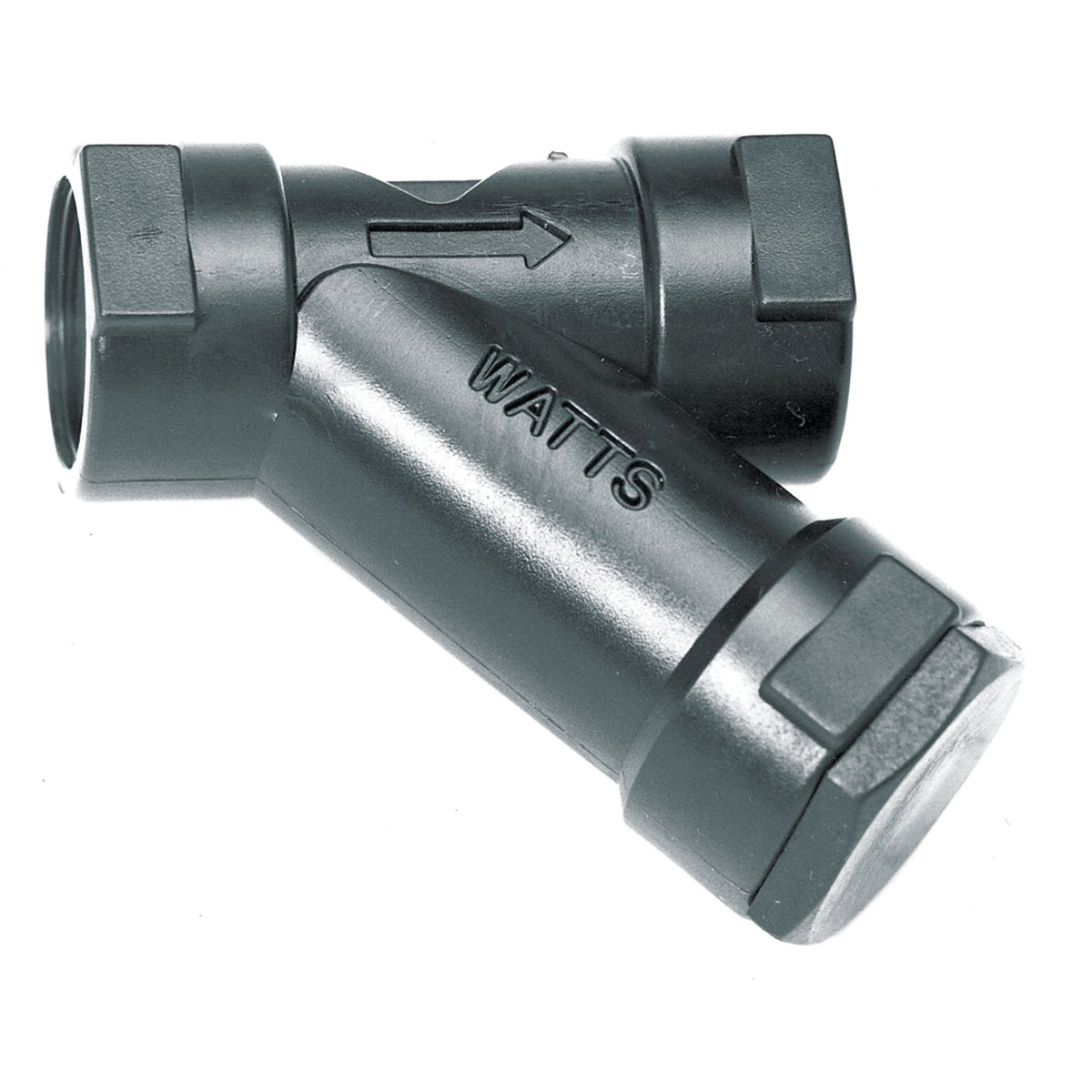

Watts P777-60 1/4 Strainer, Thermoplastic, NPT

The Watts P777-60 1/4 is a 1/4" wye (45°)-pattern strainer with NPT connections that removes pipeline debris and particulates to protect downstream equipment. It ships with a 60 mesh 304 stainless steel screen. It features a thermoplastic body and a buna-n seat. Rated to 300 psi.

This 1/4 inch plastic 45 degree wye-pattern strainer, model P777-60, is designed to protect system components from dirt, rust, and other damaging debris in the piping system. It features an NSF-approved Noryl plastic body with threaded connections, 100 stainless steel mesh screen and quick cleanout plug. The maximum supply pressure is 300 psi (21 bar) CWP.

Features

• Non corrosive plastic body
• Very compact
• Cleanout plug included
• Stainless steel screen
• Includes: Strainer

Common Questions

What mesh or screen size does it come with?

P777-60 1/4 ships with a 60 mesh 304 Stainless Steel screen (60 openings per linear inch). The screen is called out by the number in the model code.

Can I get a finer or coarser screen?

Yes. Watts builds this body with a range of screens and encodes the choice in the model number, so a finer or coarser screen is a different part number rather than an accessory. This one is 60 mesh. Finer screens catch smaller particles but clog faster and cost more pressure drop, so size the screen to the debris you actually have.

Does it have a blowoff / blowdown port?

Yes. The retainer cap/cover is tapped for a blowoff connection, so you can flush accumulated debris by pulling the plug or piping a blowdown valve to it -- no need to break the strainer apart. The closure plug is included.

What is the "seat material" on a strainer?

A strainer has no seat -- nothing closes against anything. The Buna-N called out here is the retainer-cap seal (the gasket between the cap and the body), which is what limits the temperature and chemical compatibility of the closure.

Specifications

• Type: Strainer
• Size: 1/4"
• Connection: NPT
• Body Material: Thermoplastic
• Cap Seal / Gasket Material: Buna-N
• Max Pressure (WOG, psi): 300
• Application: Domestic Water
• Pack Quantity: 50
• Country of Origin: Mexico
• Warranty: 1 Year Limited
• MPN: P777-60 1/4
• Lead-Free: No
• Strainer Pattern: Wye (45°)
• Screen Type: Mesh
• Screen Mesh: 60
• Screen Material: 304 Stainless Steel
• Blowoff / Drain Tapping: Yes
• Blowoff Plug Included: Yes
• Body Coating: None
• Alternate Screens Available: Yes
