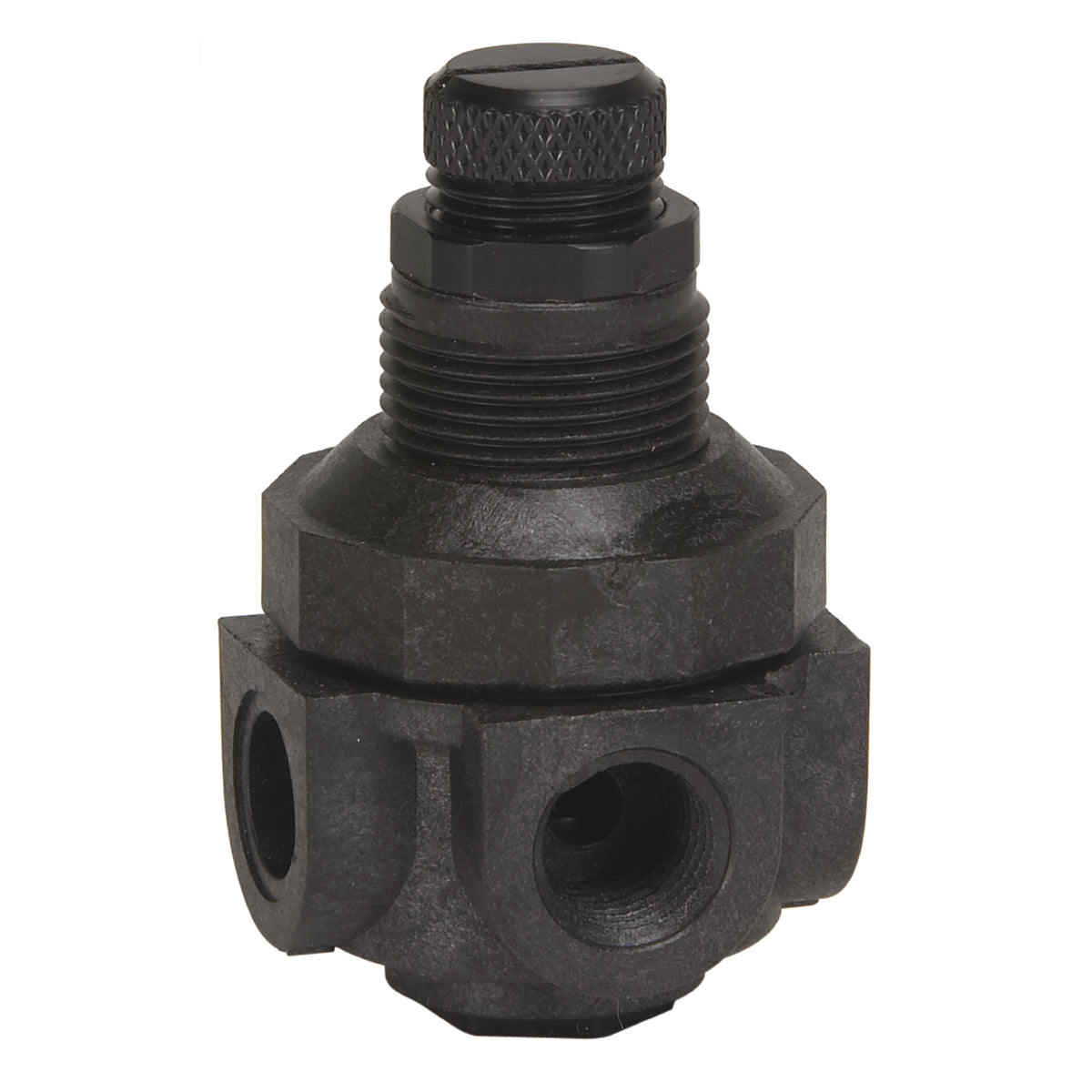

Watts P60M1-0-125 1/4 Pressure Reducing Valve, Thermoplastic, NPT

The Watts P60M1-0-125 1/4 is a 1/4" pressure reducing valve with NPT connections. It reduces inlet pressure of up to 125 psi to an adjustable 0-125 psi downstream. It features a thermoplastic body and a rubber seat. Rated to 125 psi and 33°F to 150°F.

This 1/4 inch miniature water pressure regulator is compact and lightweight with a high flow capacity. It is used in general purpose and OEM applications where a small economical package is required. It is also suitable for deionized water applications. It has a balanced piston design for applications to regulate pressure in systems that require a constant downstream and accurate flow performance. It consists of a thermoplastic body construction, NPT female connections in a straight through gauge port, a rubber disc, diaphragm, and seals of FDA grade elastomers, stainless steel internal metal components. The reduced pressure range is 0 to 125 psi (0 to 8.79 bar) and the temperature range is 33 to 150 degrees F (0.5 to 66 degrees C).

Features

• Corrosion resistant thermoplastic body
• All internal rubber components such as disc, diaphragm and seals are all FDA grade elastomers
• All internal metal components in contact with fluid are of 300 series stainless steel
• Compact design and lightweight construction
• Bottom clean out plug for service
• Temperature range is 33 F to 150 degrees F (0.5 C to 66 degrees C)
• Maximum Inlet pressure is 300 psi (21 bar)

Common Questions

What pressure is it set to out of the box?

The adjustable reduced-pressure range of P60M1-0-125 1/4 is 0 to 125 psi. Verify the outlet setting with a gauge after installation and adjust to your target pressure.

Does it include a strainer?

No - P60M1-0-125 1/4 does not have an integral strainer. On dirty or older supply lines, install a separate inline strainer upstream to keep debris off the seat.

Does it come with a gauge?

P60M1-0-125 1/4 has a gauge tapping (port) but no gauge is included - the port ships plugged. Thread in your own gauge to read the reduced downstream pressure.

Specifications

• Type: Pressure Regulator
• Size: 1/4"
• Inlet Size: 1/4"
• Outlet Size: 1/4"
• Connection: NPT
• Body Material: Thermoplastic
• Seat / Seal Material: Rubber
• Max Pressure (psi): 125
• Shutoff: None
• Pack Quantity: 50
• Country of Origin: United States
• Warranty: 1 Year Limited
• MPN: P60M1-0-125 1/4
• Temperature: 33°F to 150°F
• Lead-Free: No
• Adjustable Range - Min (psi): 0
• Adjustable Range - Max (psi): 125
• Thermal Expansion Bypass: No
• Integral Strainer: No
• Gauge: Gauge Tap
• Union Configuration: None
• Capacity Class: Small Process
• Regulated Media: Water
