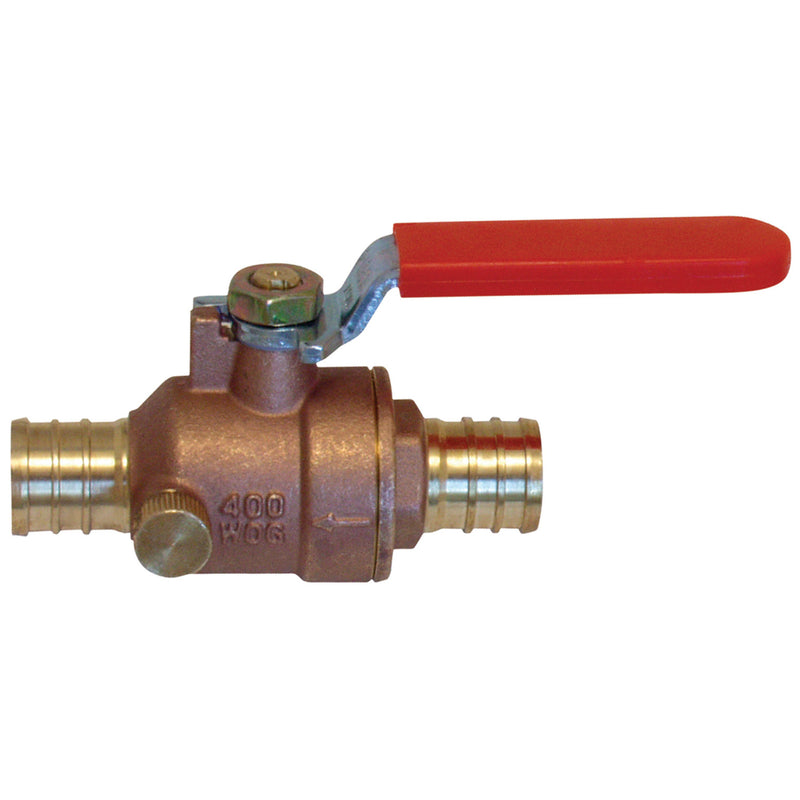

Watts LFWPBVD-12 3/4" Lead-Free Ball Valve, Brass, PEX

The Watts LFWPBVD-12 is a 3/4" lead-free 2-piece full port ball valve with PEX connections. It features a brass body and a fkm (viton) seat. Rated to 160 psi. This model is certified lead-free for potable-water installations.

This 2-piece full port ball valve is designed for use with WaterPEX ® piping. It features a forged brass body with waste drain, chrome plated brass ball, virgin PTFE seats, stem packing, and Viton ® stem O-ring. This ball valve has 3/4 inch crimp end connections designed for use with WaterPEX ® tubing. The ball valve rating is 400 WOG and the crimp connection is rated to 160 psi at 73 degrees F (11 bar at 23 degrees C).

Features

• Durable forged lead free brass body with waste drain
• Quick and easy installation into PEX piping system
• For use with SDR-9 PEX pipe
• Crimp end designed to ASTM-F-1808

Common Questions

Is this full port or standard port?

Full port. The ball bore matches the 3/4" pipe ID, so the valve adds almost no restriction — the right choice for pump suction, main shutoffs, and any run where you cannot give up head.

Can I use this on natural gas or propane?

No. This valve carries no fuel-gas listing, and code requires an ANSI Z21.15 / CSA listed valve for natural gas or LP. Use a Watts GBV series gas ball valve instead.

Is this rated for potable water?

Yes. It is a lead-free model (weighted lead content at or below 0.25%), so it is legal for potable water. Check the spec sheet if your submittal specifically requires an NSF/ANSI 61 listing.

Can it be serviced without cutting it out?

No. A 2-piece body is not designed for in-line rebuild; it is replaced as a unit. Choose a three-piece valve (LFB6800 / S-6800 series) where in-line serviceability matters.

Specifications

• Type: Ball
• Size: 3/4"
• Inlet Size: 3/4"
• Outlet Size: 3/4"
• Connection: PEX
• Body Material: Brass
• Seat / Seal Material: FKM (Viton)
• Max Pressure (psi): 160
• Application: Domestic Water
• Port Style: Full
• Ways: 2-Way
• Pack Quantity: 40
• Country of Origin: China
• Warranty: 1 Year Limited
• MPN: LFWPBVD-12
• Lead-Free: Yes
• Valve Construction: 2-Piece
• Ball Material: Chrome-Plated Brass
• Handle Type: Lever
• Actuation: Manual
• Fuel Gas Rated: No
• Integral Drain / Waste Port: Yes
