Specifications
Description

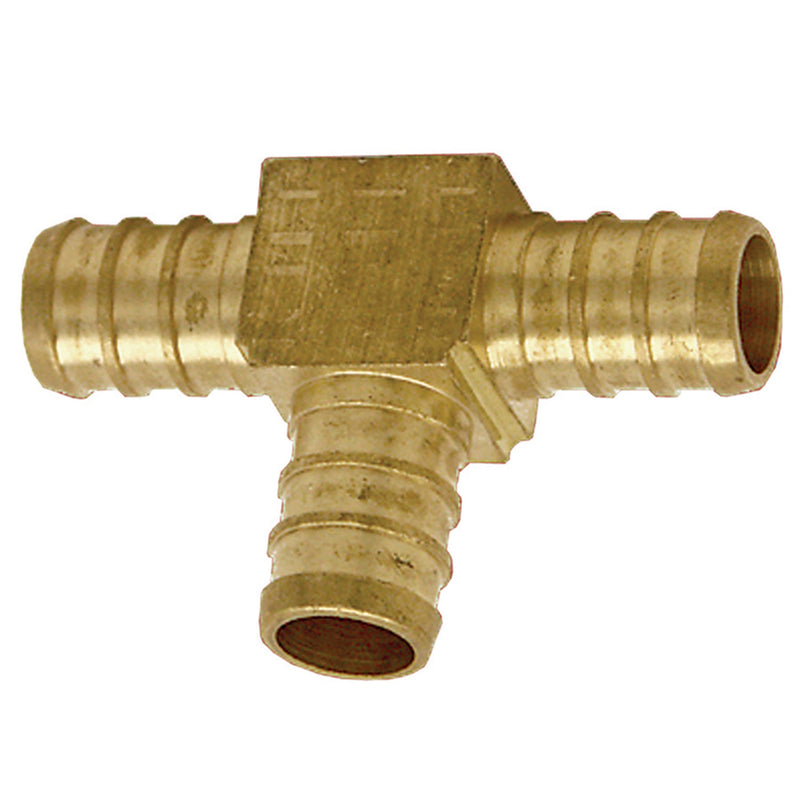

The Watts LFWP18B-120812 is a lead-free copper PEX Crimp tee in 3/4" x 1". It features a copper body. This model is certified lead-free for potable-water installations.
This lead free CrimpRing™ tee is used to make a three way connection between potable or radiant heating PEX tubing. This 3/4 crimp by 1/2 crimp by 3/4 crimp branch tee is made of lead free brass and must be joined to the PEX tubing using a copper crimp ring to form a fast, reliable, and permanent seal. It is recommended that an electric crimp tool be used to make the crimp connection.
Features
- Manufactured from lead free brass
- NSF-PW, B137.5, ASTM F877, F1807 certified
- Used for three way connection between SDR-9 PEX pipe
- Provides leak proof seal
Common Questions
- How does it join the pipe?
- It is a PEX Crimp fitting. The port configuration is 3/4" x 1".
- What is it made of?
- The body is copper. It is certified lead-free for potable water.
- Is this a reducing fitting?
- The ports are 3/4" x 1". Match this against the run before ordering.
Specifications
- Size: 1/2"
- Inlet Size: 3/4"
- Outlet Size: 1/2"
- Connection: PEX
- Body Material: Copper
- Application: Domestic Water
- Country of Origin: China
- Warranty: 1 Year Limited
- MPN: LFWP18B-120812
- Certifications: CSA-B137.5, CSA
- Lead-Free: Yes
- Fitting Type: Tee
- Connection System: PEX Crimp
- Port Configuration: 3/4" x 1"
Product Information
Dimensions
| Size Nominal | 1/2" | Inlet Size | 3/4" |
| Outlet Size | 1/2" | End Connection | PEX |
Details
| Series | LFWP18B | Lead Free | Yes |
| Body Material | Copper | Application | Domestic Water |
| Configuration | 3/4" x 1" | Connection system | PEX Crimp |
| Fitting type | Tee | — | — |
Certifications & Standards
| CSA-B137.5 | CSA |
Compare with similar products
| Series | LFWP18B
| Tee 3523
| QQPT443X
| QQPT434X
|
| Country Of Origin | China
| China
| — | — |
| Warranty | 1 Year Limited
| 1 Year Limited
| — | — |
| Spec Sheet | ||||
| Install Sheet | — | |||
| Device Type | — | — | Qick Sert CR® Large Diameter Polymer Tee
| Qick Sert CR® Large Diameter Polymer Tee
|
| Size Nominal | 1/2"
| 1/2"
| 3/4"
| 3/4"
|
| Inlet Size | 3/4"
| 1/2"
| — | — |
| Outlet Size | 1/2"
| 1/2"
| — | — |
| Lead Free | Yes | — | Yes | Yes |
| End Connection | PEX
| PEX
| Barb
| Barb
|
| Body Material | Copper
| Polyethylene
| Acetal
| Acetal
|
| Max Pressure PSI | — | — | 160.0 psi | 160.0 psi |
| Certifications | CSA-B137.5, CSA
| NSF-61, NSF-14, CSA-B137.5, CSA
| ASTM F2159, ASTM F877, CSA-B137.5, NSF-14, NSF-61
| ASTM F2159, ASTM F877, CSA-B137.5, NSF-14, NSF-61
|
