Specifications
Description

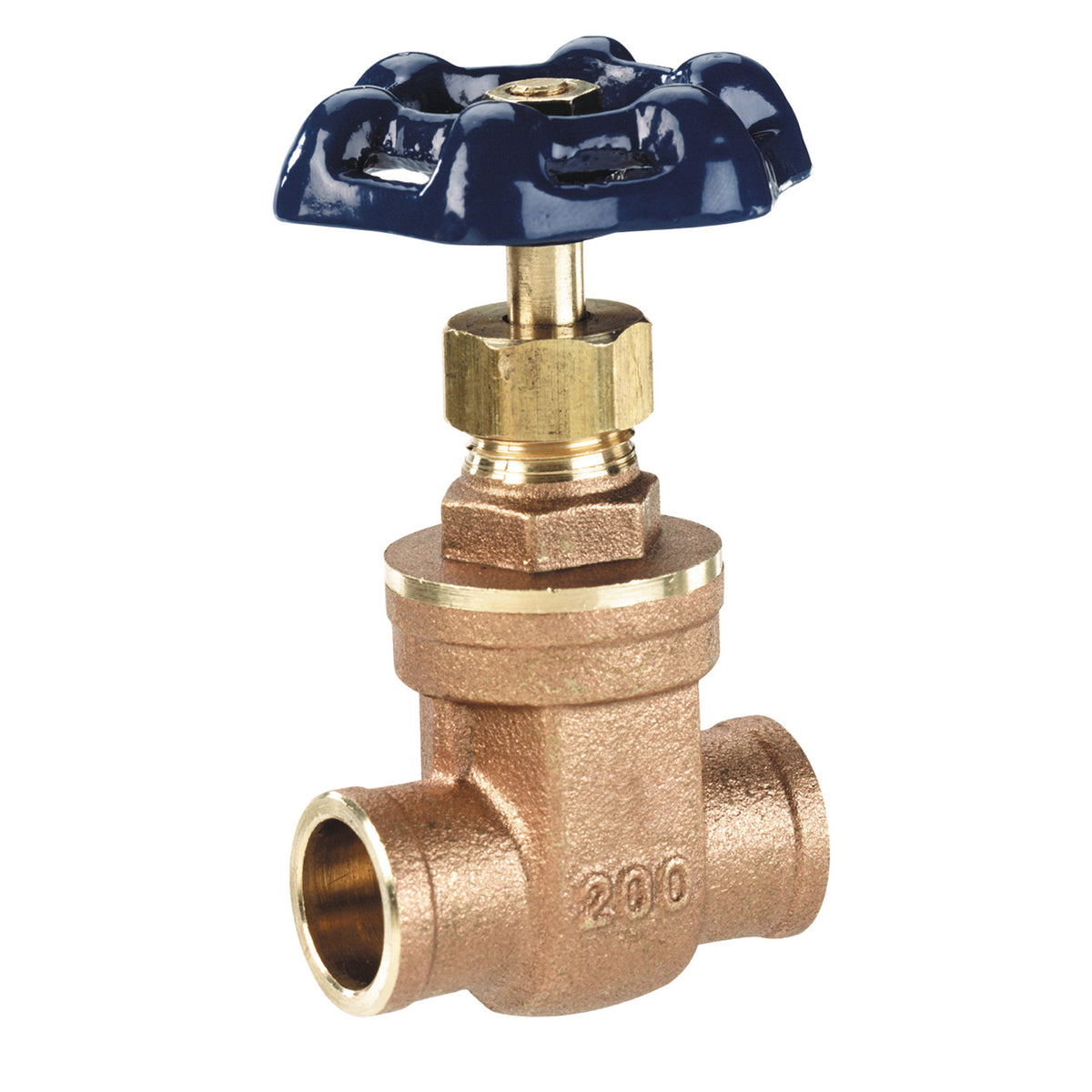

The Watts LFWGVS 1/2 is a 1/2" lead-free gate valve with a non-rising stem (NRS), a solid wedge and Sweat connections. It features a brass body and a buna-n seat. Rated to 200 psi and up to 180°F. This model is certified lead-free for potable-water installations.
This 1/2 inch lead free gate valve is used in commercial and residential general service on water, oil or compressed gas applications. It features a lead free brass body with solder end connections, lead free brass non-rising stem and gland, and cast iron handwheel. The maximum pressure is 200 psi (13.8 bar) WOG.
Features
- Lead free construction
- Non-rising stem
- Solder end connection
- Lead free brass wedge disc and cast iron hand wheel
Common Questions
- Is this UL/FM listed for fire service?
- No. This is a brass general-service gate valve for water, oil and compressed gas lines; it is not listed for fire protection. Use the UL/FM listed 408-OSY-RW series for fire mains.
- Rising or non-rising stem?
- Non-rising stem (NRS). The stem turns but does not travel, so the valve fits tight spaces, buried service and pits. There is no visual open/closed indication — use an OS&Y valve where that is required.
- Is this a complete valve or just the replacement gate?
- Complete valve. The LFWGVS 1/2 ships as a full assembly — body, bonnet, wedge, stem and handwheel. The Watts NRS-RW-GATE / OSY-RW-GATE items are gate assemblies only, sold to service an existing valve.
Specifications
- Type: Gate
- Size: 1/2"
- Inlet Size: 1/2"
- Outlet Size: 1/2"
- Connection: Sweat
- Body Material: Brass
- Seat / Seal Material: Buna-N
- Max Pressure (psi): 200
- Application: Gas
- Shutoff: NRS Gate
- Pack Quantity: 120
- Country of Origin: Taiwan
- Warranty: 1 Year Limited
- MPN: LFWGVS 1/2
- Temperature: up to 180°F
- Certifications: NSF/ANSI 372
- Lead-Free: Yes
- Valve Style: Gate
- Stem Type: Non-Rising (NRS)
- Wedge / Disc Type: Solid
- UL/FM Listed: No
- Pressure Rating: 200 psi WOG
- Operator / Handle: Handwheel
- Bonnet Style: Threaded
- Waste / Drain Port: No
- Replacement Part: No
Product Information
| SKU | UPC | Country of Origin | Warranty | Spec Sheet |
|---|---|---|---|---|
| 0555167 | 098268449952 | Taiwan | 1 Year Limited | Download |
Dimensions
| Size Nominal | 1/2" | Inlet Size | 1/2" |
| Outlet Size | 1/2" | End Connection | Sweat |
Details
| Series | LFWGV | Device Type | Gate |
| Lead Free | Yes | Body Material | Brass |
| Seat Material | Buna-N | Application | Gas |
| Max Pressure PSI | 200.0 psi | Max Temp °F | 180.0 °F |
| Pack Qty | 120 | Shutoff | NRS Gate |
| Valve Style | Gate | Stem Type | Non-Rising (NRS) |
| Wedge Type | Solid | WOG WSP Rating | 200 psi WOG |
| Operator | Handwheel | Bonnet Type | Threaded |
Certifications & Standards
| NSF/ANSI 372 | — |
