Specifications
Description

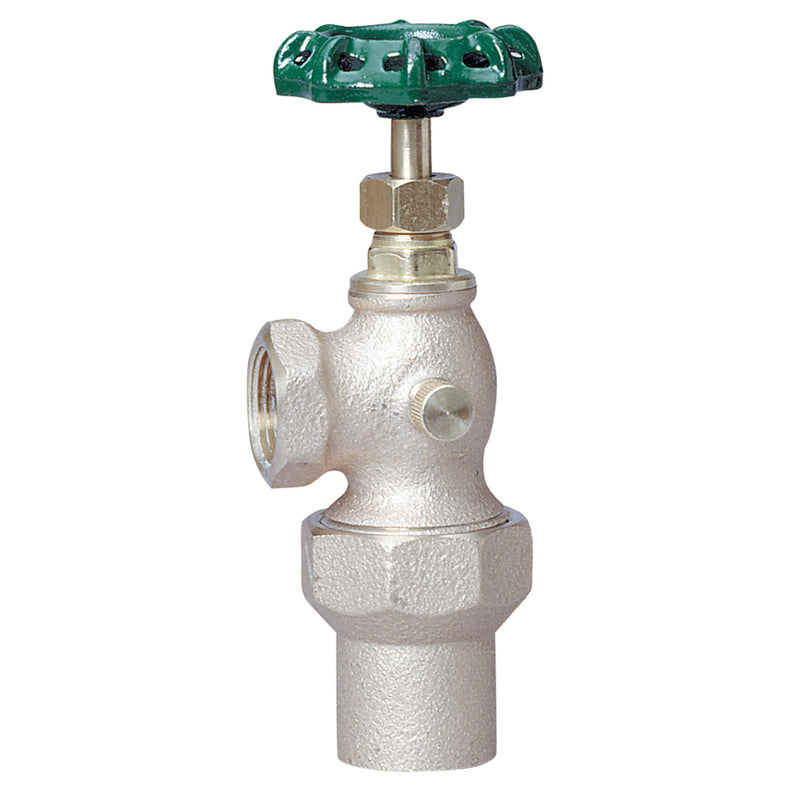

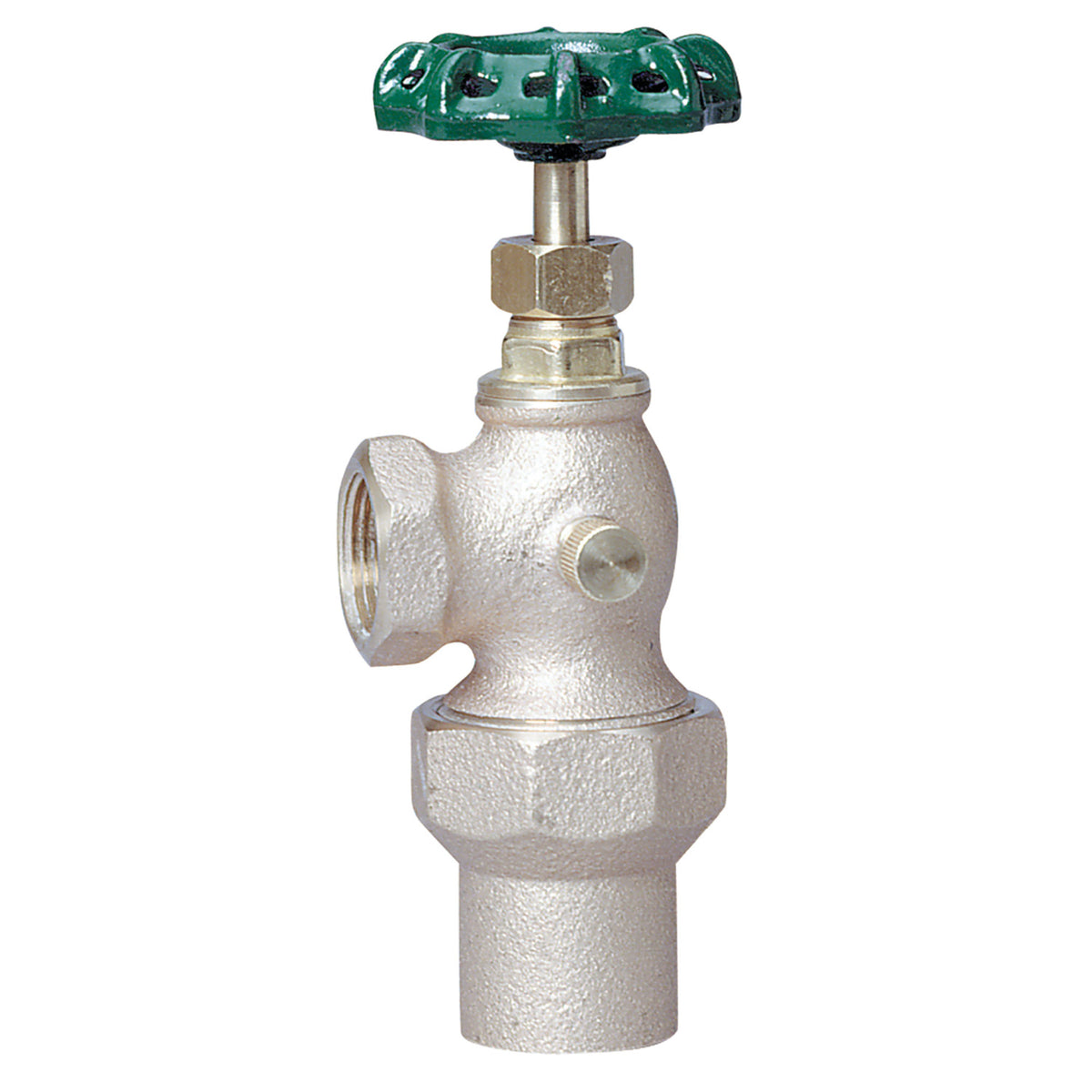

The Watts LFWAMV-FLXIPS 1X3/4 is a 3/4" lead-free angle meter valve with SAE Flare connections. It features a brass body. Rated to 125 psi. This model is certified lead-free for potable-water installations.
This 1 x 3/4 inch lead free angle meter valve is used in light commercial and residential applications for incoming water supply service. It features a lead free cast brass body with 1 inch flare by 3/4 inch IPS female connections. The maximum operating pressure is 125 psi (8.6 bar).
Features
- Lead free brass body construction
- Used for incoming water supply service
- Flare by female IPS connection
- For residential and light commercial applications
Common Questions
- Does it have a waste/drain port?
- No. This is a straight shutoff with no waste port. If you need to drain the line downstream for winterization, order the stop-and-waste (LFSWT/LFSWS) or the -W angle meter version.
- Is it approved for potable water?
- Yes. This is a Watts LF (lead-free) model, certified to NSF/ANSI 372 for potable-water service.
Specifications
- Type: Angle Meter
- Size: 3/4"
- Inlet Size: 1"
- Outlet Size: 3/4"
- Connection: SAE Flare
- Body Material: Brass
- Max Pressure (psi): 125
- Application: Domestic Water
- Pack Quantity: 60
- Country of Origin: Taiwan
- Warranty: 1 Year Limited
- MPN: LFWAMV-FLXIPS 1X3/4
- Certifications: NSF/ANSI 372
- Lead-Free: Yes
- Valve Style: Angle Meter
- Pressure Rating: 125 psi WOG
- Waste / Drain Port: No
- Replacement Part: No
Product Information
| SKU | UPC | Country of Origin | Warranty | Spec Sheet |
|---|---|---|---|---|
| 0123018 | 098268734935 | Taiwan | 1 Year Limited | Download |
Dimensions
| Size Nominal | 3/4" | Inlet Size | 1" |
| Outlet Size | 3/4" | End Connection | SAE Flare |
Details
| Series | LFWAMV | Device Type | Angle Meter |
| Lead Free | Yes | Body Material | Brass |
| Application | Domestic Water | Max Pressure PSI | 125.0 psi |
| Pack Qty | 60 | Valve Style | Angle Meter |
| WOG WSP Rating | 125 psi WOG | — | — |
Certifications & Standards
| NSF/ANSI 372 | — |
