Watts LFTB-3-2 32-248 1/2 Lead-Free Temperature Gauge, Steel, NPT

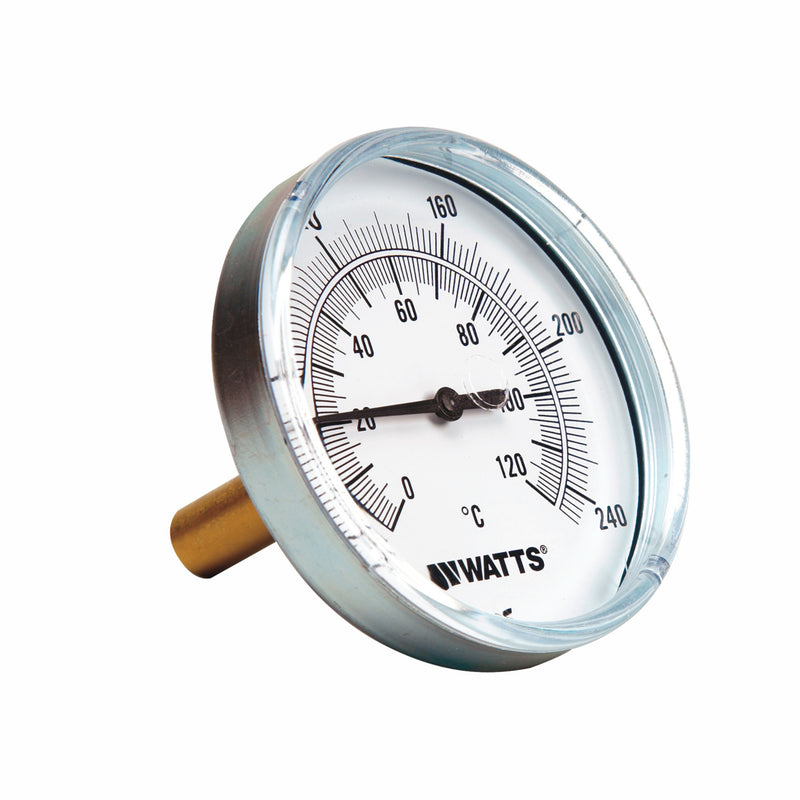

The Watts LFTB-3-2 32-248 1/2 is a 1/2" lead-free temperature gauge. It features a steel body. Rated to -22°F to 248°F. This model is certified lead-free for potable-water installations.

This 1/2 inch lead free center back entry bimetal thermometer are used in commercial, residential, and institutional HVAC applications. It features a zinc plated steel case, Kostil polymer window, 1/2 inch NPT lead free brass thermowell with set screw, 2 inch probe and bimetal spiral spring sensing element. This thermometer features a 3 inch dial with temperature range 32 to 248 degrees F.

Features

• Zinc plated steel case
• Kostil polymer window
• Bimetal spiral spring sensing element
• Furnished with brass thermowells

Common Questions

How does it mount?

It is a back entry gauge with a NPT connection.

Specifications

• Size: 1/2"
• Connection: NPT
• Body Material: Steel
• Pack Quantity: 12
• Country of Origin: BG
• Warranty: 1 Year Limited
• MPN: LFTB-3-2 32-248 1/2
• Temperature: -22°F to 248°F
• Certifications: ASME B40.100
• Lead-Free: Yes
• Type: Temperature Gauge
• Mount: Back Entry
• Dial Size: 3"
