Specifications
Description

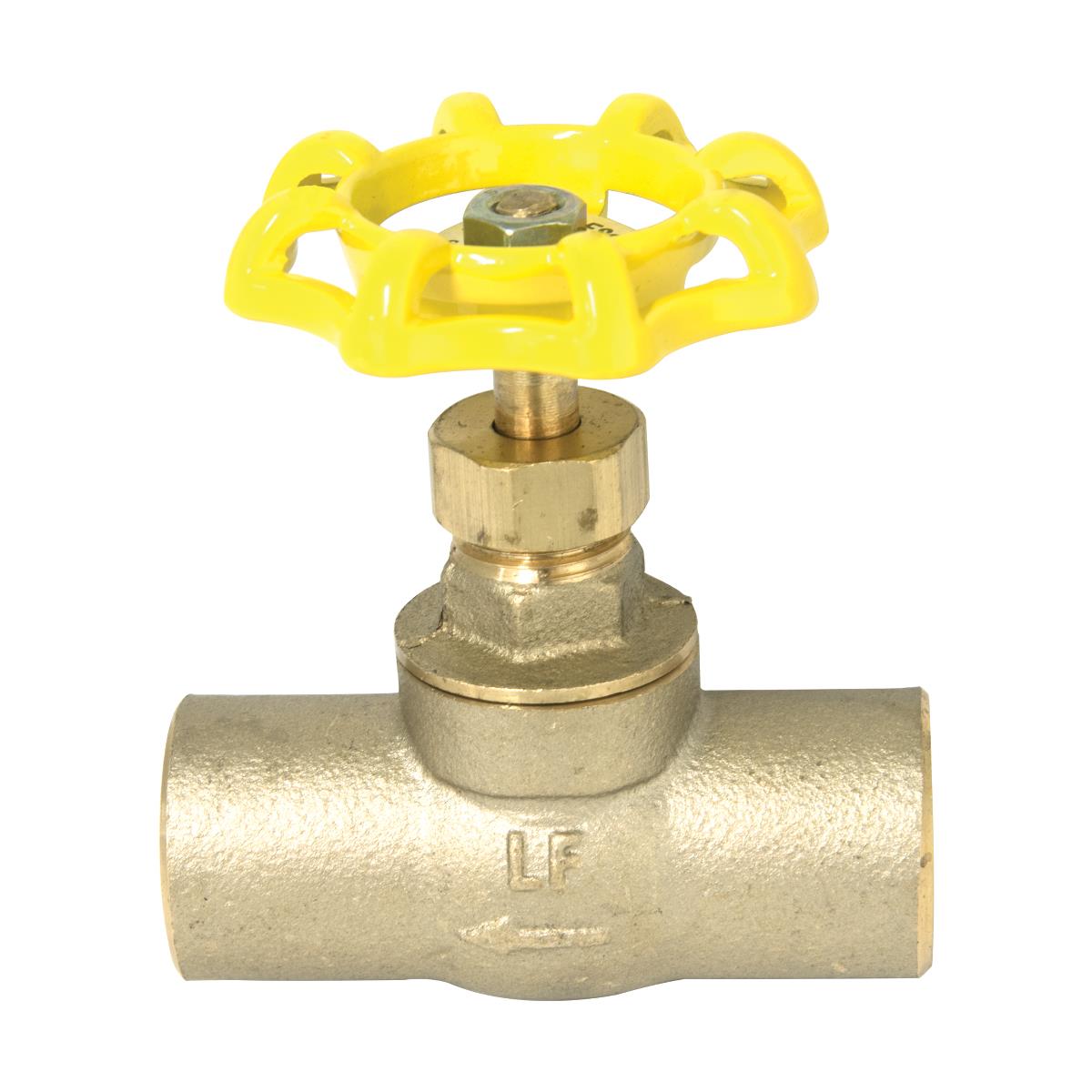

The Watts LFSS 1/2 is a 1/2" lead-free stop valve with Sweat connections. It features a brass body and a rubber seat. Rated to 150 psi and up to 180°F. This model is certified lead-free for potable-water installations.
This 1/2 inch lead free stop valve is used in residential applications for shutoff service only. It consists of a lead free brass body construction with solder end connections and a handwheel for shutoff. The maximum working pressure is 150 psi (10.3 bar) WOG and the maximum temperature is 180 degrees F (82 degrees C).
Features
- Sturdy handwheel for shutoff
- Solder connection
- Maximum pressure is 150 psi
- Maximum temperature 180 degrees F
Common Questions
- Does it have a waste/drain port?
- No. This is a straight shutoff with no waste port. If you need to drain the line downstream for winterization, order the stop-and-waste (LFSWT/LFSWS) or the -W angle meter version.
- Is it approved for potable water?
- Yes. This is a Watts LF (lead-free) model, certified to NSF/ANSI 372 for potable-water service.
Specifications
- Type: Stop
- Size: 1/2"
- Inlet Size: 1/2"
- Outlet Size: 1/2"
- Connection: Sweat
- Body Material: Brass
- Seat / Seal Material: Rubber
- Max Pressure (psi): 150
- Application: Domestic Water
- Pack Quantity: 72
- Country of Origin: China
- Warranty: 1 Year Limited
- MPN: LFSS 1/2
- Temperature: up to 180°F
- Certifications: NSF/ANSI 372
- Lead-Free: Yes
- Valve Style: Stop
- Pressure Rating: 150 psi WOG
- Operator / Handle: Handwheel
- Waste / Drain Port: No
- Replacement Part: No
Product Information
| SKU | UPC | Country of Origin | Warranty | Spec Sheet |
|---|---|---|---|---|
| 0123608 | 098268701227 | China | 1 Year Limited | Download |
Dimensions
| Size Nominal | 1/2" | Inlet Size | 1/2" |
| Outlet Size | 1/2" | End Connection | Sweat |
Details
| Series | LFSS | Device Type | Stop |
| Lead Free | Yes | Body Material | Brass |
| Seat Material | Rubber | Application | Domestic Water |
| Max Pressure PSI | 150.0 psi | Max Temp °F | 180.0 °F |
| Pack Qty | 72 | Valve Style | Stop |
| WOG WSP Rating | 150 psi WOG | Operator | Handwheel |
Certifications & Standards
| NSF/ANSI 372 | — |
