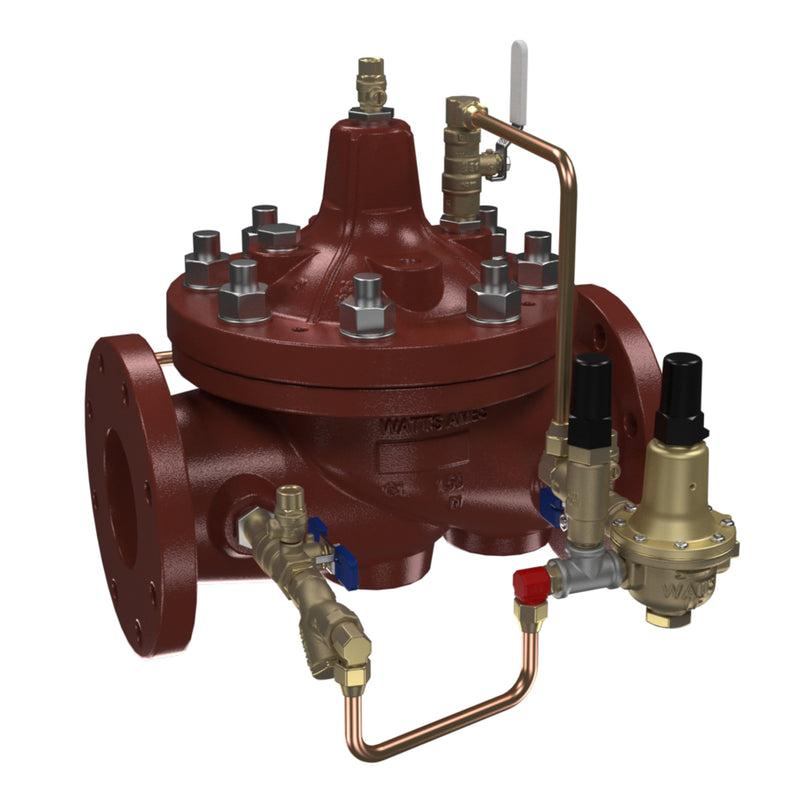

Watts LFM6115-74 4 Lead-Free Pressure Reducing Valve, Ductile Iron, Flanged

The Watts LFM6115-74 4 is a 4" lead-free globe-pattern pilot-operated pressure reducing control valve with Flanged connections. It features a ductile iron body. This model is certified lead-free for potable-water installations.

This 4 inch globe pattern class 150 flanged epoxy coated pressure reducing control valve, Mustang series M6115-74, is designed to automatically reduce a fluctuating higher inlet pressure to a constant lower downstream pressure regardless of varying flow rates. The quick closing action of the valve limits possible damaging high inlet pressure from passing through the valve to downstream piping. Flow requirements below the normal range of the main line valve are handled by a separate, low flow by-pass valve. This valve includes reduced port, isolation cocks, and pilot circuit Y strainer.

Features

• Globe pattern
• Class 150 flanged
• Epoxy coated
• Copper tubing/brass fittings

Common Questions

What does the "-74" low-flow bypass do?

A large control valve cannot hold a stable outlet pressure at very low demand, so downstream pressure creeps up overnight. The -74 adds a small bypass regulator piped around the main valve that takes over at low flow and holds the setpoint, then hands back to the main valve as demand rises. It is the standard fix for night-time pressure creep on municipal and campus mains.

Is this valve certified lead-free for potable water?

Yes. The "LF" prefix denotes Watts lead-free construction, compliant with the weighted-average 0.25% lead requirement of the Safe Drinking Water Act (NSF/ANSI 372) for potable-water service.

Specifications

• Type: Pressure Regulator
• Size: 4"
• Inlet Size: 4"
• Outlet Size: 4"
• Connection: Flanged
• Body Material: Ductile Iron
• Pressure Class: Class 150
• Operation: Pilot-Operated Diaphragm
• Port Style: Reduced
• Country of Origin: United States
• Warranty: 1 Year Limited
• MPN: LFM6115-74 4
• Lead-Free: Yes
• Item Type: Valve
• Control Function: Pressure Reducing (Low-Flow Bypass)
• Valve Platform: Mustang (M-Series)
• Body Pattern: Globe
• End Connection / Pressure Class: 150# Flanged
• Configured Options: Low-Flow Bypass;Strainer;Bypass
• Coating: Fusion-Bonded Epoxy
