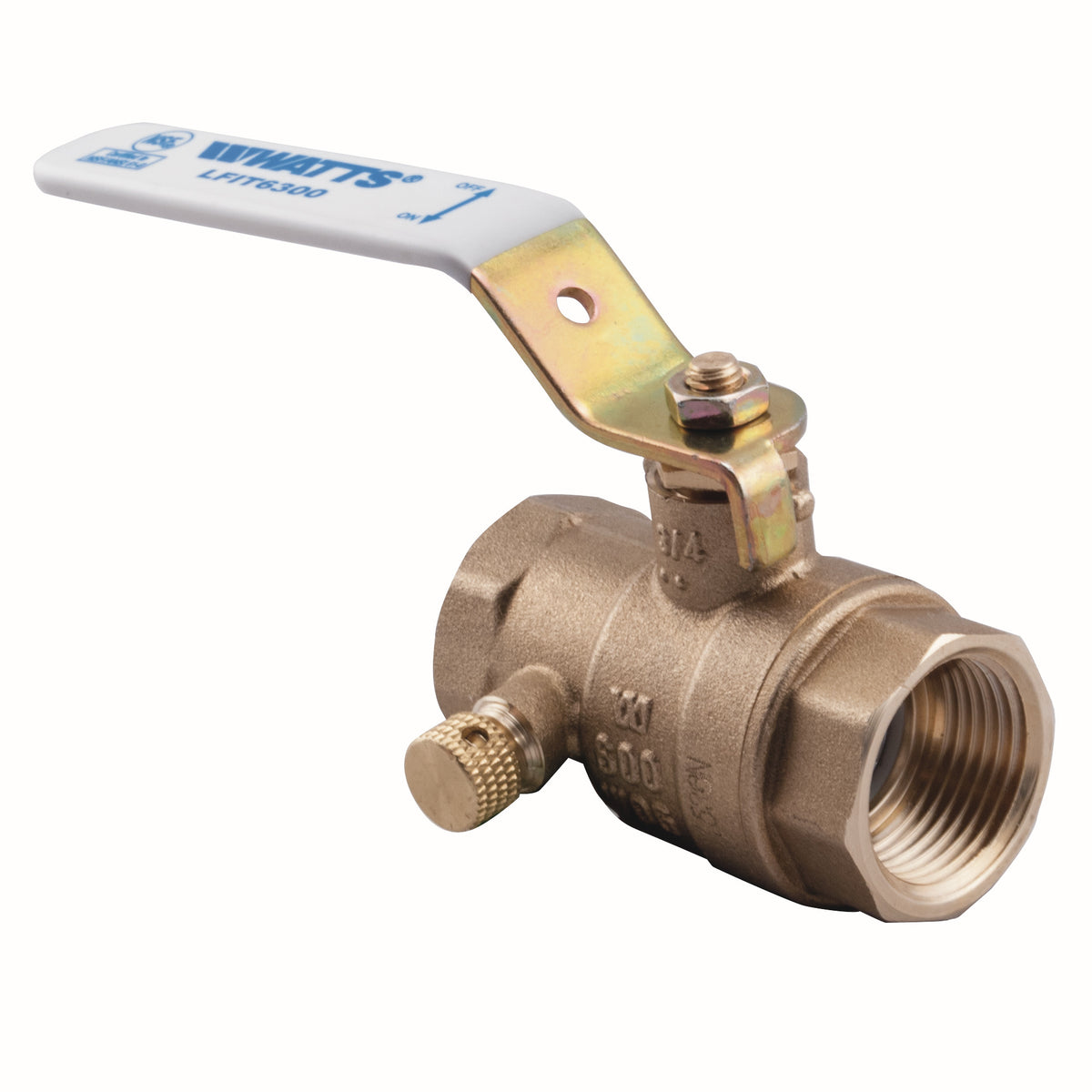

Watts LFIT6300 1 Lead-Free Ball Valve, Brass, NPT

The Watts LFIT6300 1 is a 1" lead-free 2-piece full port ball valve with NPT connections. It features a brass body and a ptfe seat. Rated to 600 psi and 0°F to 350°F. This model is certified lead-free for potable-water installations.

This 1 inch two-piece, full port ball and waste ball valve is used in commercial and industrial applications. It features a side drain waste port that allows draining or venting of the downstream line when the valve is in the closed position. It has a lead free brass body, 1 inch NPT threaded end connections, adjustable packing gland, chrome plated lead free brass ball, virgin PTFE seats and seals, and a bottom loaded blowout proof stem. The temperature range is 0 to 350 degrees F (minus 18 to 177 degrees C) and the pressure rating is 600 psi (41 bar) WOG non-shock.

Features

• Lead free brass body construction
• Side drain waste port for downstream draining or venting
• Adjustable packing design
• Chrome plated lead free brass ball

Common Questions

Is this full port or standard port?

Full port. The ball bore matches the 1" pipe ID, so the valve adds almost no restriction — the right choice for pump suction, main shutoffs, and any run where you cannot give up head.

Can I use this on natural gas or propane?

No. This valve carries no fuel-gas listing, and code requires an ANSI Z21.15 / CSA listed valve for natural gas or LP. Use a Watts GBV series gas ball valve instead.

Is this rated for potable water?

Yes. It is a lead-free model (weighted lead content at or below 0.25%), so it is legal for potable water. Check the spec sheet if your submittal specifically requires an NSF/ANSI 61 listing.

Can it be serviced without cutting it out?

No. A 2-piece body is not designed for in-line rebuild; it is replaced as a unit. Choose a three-piece valve (LFB6800 / S-6800 series) where in-line serviceability matters.

Specifications

• Type: Ball
• Size: 1"
• Inlet Size: 1"
• Outlet Size: 1"
• Connection: NPT
• Body Material: Brass
• Seat / Seal Material: PTFE
• Max Pressure (psi): 600
• Port Style: Full
• Ways: 2-Way
• Pack Quantity: 36
• Country of Origin: China
• Warranty: 1 Year Limited
• MPN: LFIT6300 1
• Temperature: 0°F to 350°F
• Lead-Free: Yes
• Valve Construction: 2-Piece
• Ball Material: Chrome-Plated Brass
• Blowout-Proof Stem: Yes
• Handle Type: Lever
• Actuation: Manual
• Fuel Gas Rated: No
• Integral Drain / Waste Port: Yes
