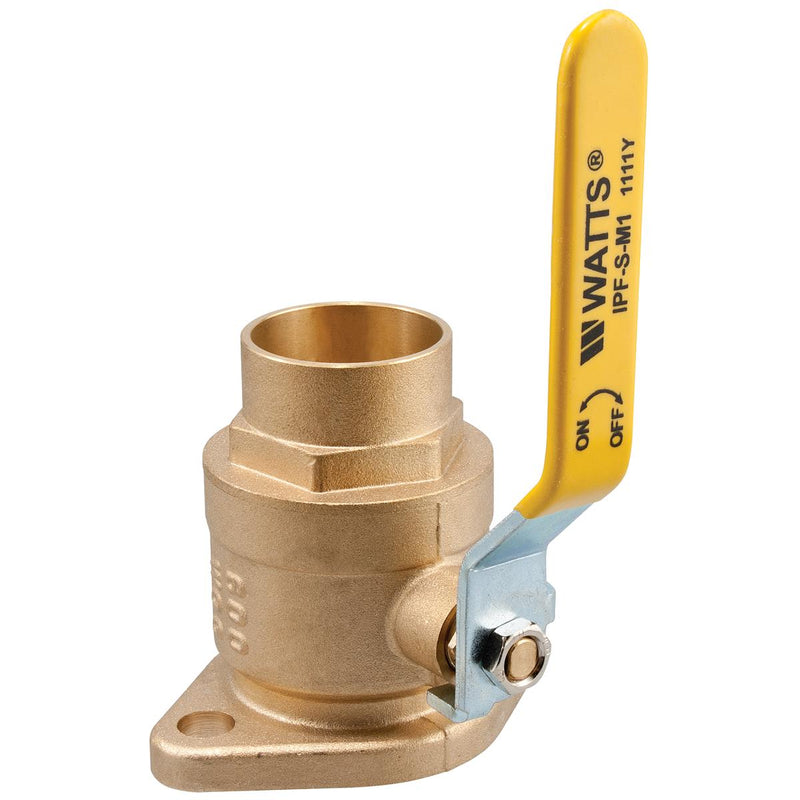

Watts LFIPFM1-S-HV 3/4 Lead-Free Ball Valve, Brass, Sweat

The Watts LFIPFM1-S-HV 3/4 is a 3/4" lead-free ball valve with Sweat connections. It features a brass body and a buna-n seat. Rated to 600 psi and up to 406°F. This model is certified lead-free for potable-water installations.

This 3/4 inch lead free high velocity isolation pump flange is designed to simplify the installation, service, and removal of pumps or circulators in potable water recirculation systems. It features solder by flange end connections, a lead free brass body with bottom loaded blowout proof stem, Buna-N stem O-ring seal, virgin PTFE seats, and a lever handle. The pressure is rated 600 psi (41.4 bar) WOG and the maximum temperature is 406 F (208 C) at 100 psi (6.9 bar).

Features

• Lead free construction
• Solder by flange connection
• Adjustable packing design
• Supplied with lever handle

Common Questions

Can I use this on natural gas or propane?

No. This valve carries no fuel-gas listing, and code requires an ANSI Z21.15 / CSA listed valve for natural gas or LP. Use a Watts GBV series gas ball valve instead.

Is this rated for potable water?

Yes. It is a lead-free model (weighted lead content at or below 0.25%), so it is legal for potable water. Check the spec sheet if your submittal specifically requires an NSF/ANSI 61 listing.

Specifications

• Type: Ball
• Size: 3/4"
• Inlet Size: 3/4"
• Outlet Size: 3/4"
• Connection: Sweat
• Body Material: Brass
• Seat / Seal Material: Buna-N
• Max Pressure (psi): 600
• Application: Domestic Water
• Ways: 2-Way
• Pack Quantity: 24
• Country of Origin: China
• Warranty: 1 Year Limited
• MPN: LFIPFM1-S-HV 3/4
• Temperature: up to 406°F
• Lead-Free: Yes
• Blowout-Proof Stem: Yes
• Handle Type: Lever
• Actuation: Manual
• Fuel Gas Rated: No
• Integral Drain / Waste Port: No
