Specifications
Description
The Watts LFH560 3/4 is a 3/4" lead-free pressure reducing valve with NPT connections. It reduces inlet pressure of up to 300 psi to an adjustable 10-60 psi downstream, factory set at 40 psi. It features a brass body and a buna-n seat. Rated to 300 psi and 33°F to 140°F. This model is certified lead-free for potable-water installations.

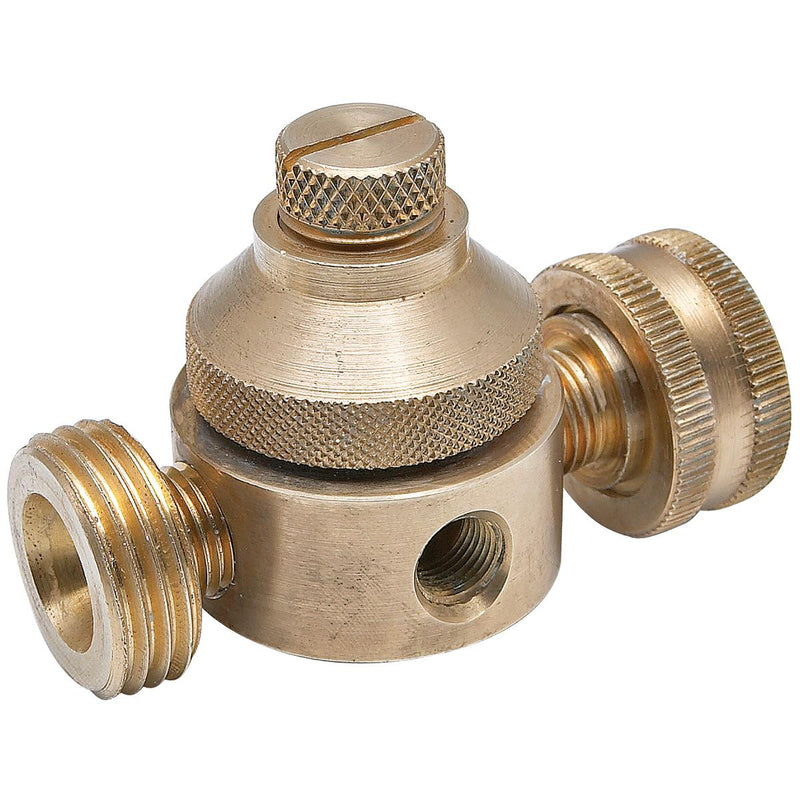

This 3/4 inch lead free mini water pressure regulator is designed to reduce incoming water pressure to protect plumbing system components and reduce water consumption. It is used in OEM applications to regulate water pressure in systems where a small economical package is required such as grid systems and recreational vehicles. It consists of a rugged lead free brass body, female hose inlet by male hose outlet threaded connections, plugged gauge port, Buna-N seat and diaphragm, oversized orifice, stainless steel stem and spring, and a heavy duty slotted and knurled adjusting screw. The adjustable reduced pressure range is 10 to 60 psi (0.68 to 4.13 bar) and is factory set at 40 psi (2.8 bar).
Features
- Lead free brass body
- Stainless steel stem and spring
- Oversized orifice
- Heavy duty slotted and knurled adjusting screw
Common Questions
- What pressure is it set to out of the box?
- LFH560 3/4 ships factory set at 40 psi. The adjustable reduced-pressure range is 10 to 60 psi, so you can dial the outlet anywhere in that band on site with the adjusting screw - loosen the locknut, turn in to raise pressure and out to lower it, then retighten and verify with a gauge.
- Does it include a strainer?
- No - LFH560 3/4 does not have an integral strainer. On dirty or older supply lines, install a separate inline strainer upstream to keep debris off the seat.
- Does it come with a gauge?
- LFH560 3/4 has a gauge tapping (port) but no gauge is included - the port ships plugged. Thread in your own gauge to read the reduced downstream pressure.
Specifications
- Type: Pressure Regulator
- Size: 3/4"
- Inlet Size: 3/4"
- Outlet Size: 3/4"
- Connection: NPT
- Body Material: Brass
- Seat / Seal Material: Buna-N
- Max Pressure (psi): 300
- Shutoff: None
- Pack Quantity: 24
- Country of Origin: United States
- Warranty: 1 Year Limited
- MPN: LFH560 3/4
- Temperature: 33°F to 140°F
- Lead-Free: Yes
- Factory Set Pressure (psi): 40
- Adjustable Range - Min (psi): 10
- Adjustable Range - Max (psi): 60
- Thermal Expansion Bypass: No
- Integral Strainer: No
- Gauge: Gauge Tap
- Union Configuration: None
- Capacity Class: Small Process
- Regulated Media: Water
Product Information
Dimensions
| Size Nominal | 3/4" | Inlet Size | 3/4" |
| Outlet Size | 3/4" | End Connection | NPT |
Details
| Series | LFH560 | Device Type | Pressure Regulator |
| Lead Free | Yes | Body Material | Brass |
| Seat Material | Buna-N | Max Pressure PSI | 300.0 psi |
| Max Temp °F | 140.0 °F | Pack Qty | 24 |
| Min Temp °F | 33.0 °F | Shutoff | None |
| Set Pressure PSI | 40.0 psi | Adj Range Min PSI | 10.0 psi |
| Adj Range Max PSI | 60.0 psi | Gauge Config | Gauge Tap |
| Union Config | None | Capacity Class | Small Process |
| Regulated Media | Water | — | — |
