Specifications
Description

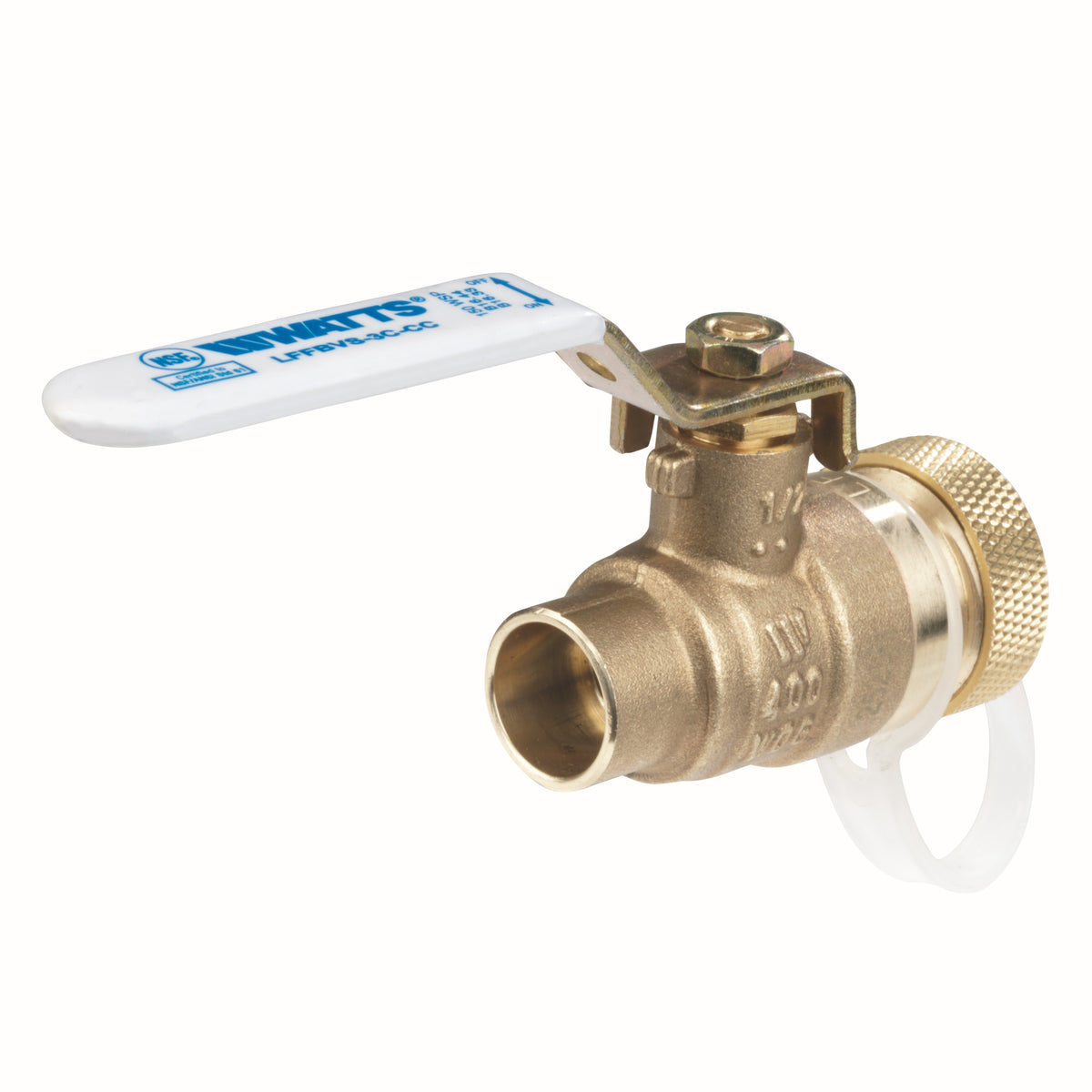

The Watts LFFBVS-3C-CC 3/4 is a 3/4" lead-free 2-piece full port ball valve with Sweat connections. It features a brass body and a ptfe seat. Rated to 400 psi. This model is certified lead-free for potable-water installations.
This 3/4 inch 2-piece full port lead free ball valve is used in commercial and industrial applications for a full range of liquids and gases. It features a lead free brass body with solder end connections, bottom-loaded blowout proof stem, virgin PTFE seat, thrust washer, adjustable stem packing gland, stem packing nut, chrome plated lead free brass ball, cap and chain, lead free brass adapter and steel handle. The pressure rating is 600 psi WOG and 150 psi WSP.
Features
- Lead free construction
- Machined chrome plated lead free brass ball
- Fluorocarbon elastomer stem O-ring prevents stem leaks
- Cap and chain
Common Questions
- Is this full port or standard port?
- Full port. The ball bore matches the 3/4" pipe ID, so the valve adds almost no restriction — the right choice for pump suction, main shutoffs, and any run where you cannot give up head.
- Can I use this on natural gas or propane?
- No. This valve carries no fuel-gas listing, and code requires an ANSI Z21.15 / CSA listed valve for natural gas or LP. Use a Watts GBV series gas ball valve instead.
- Is this rated for potable water?
- Yes. It is a lead-free model certified to NSF/ANSI 61 and NSF/ANSI 372, so it meets the Safe Drinking Water Act limit for potable-water service.
- What's the steam rating?
- 150 psi WSP (saturated steam). Do not size steam service off the 400 psi figure — that is the WOG/CWP rating (cold water, oil, gas, non-shock).
- Can it be serviced without cutting it out?
- No. A 2-piece body is not designed for in-line rebuild; it is replaced as a unit. Choose a three-piece valve (LFB6800 / S-6800 series) where in-line serviceability matters.
Specifications
- Type: Ball
- Size: 3/4"
- Inlet Size: 3/4"
- Outlet Size: 3/4"
- Connection: Sweat
- Body Material: Brass
- Seat / Seal Material: PTFE
- Max Pressure (psi): 400
- Port Style: Full
- Ways: 2-Way
- Pack Quantity: 48
- Country of Origin: Mexico
- Warranty: 1 Year Limited
- MPN: LFFBVS-3C-CC 3/4
- Certifications: NSF-61
- Lead-Free: Yes
- Valve Construction: 2-Piece
- Ball Material: Chrome-Plated Brass
- Blowout-Proof Stem: Yes
- Handle Type: Lever
- Actuation: Manual
- Max Steam Pressure (WSP): 150
- Fuel Gas Rated: No
- Integral Drain / Waste Port: No
Product Information
| SKU | UPC | Country of Origin | Warranty | Spec Sheet |
|---|---|---|---|---|
| 0123477 | 098268696134 | Mexico | 1 Year Limited | Download |
Dimensions
| Size Nominal | 3/4" | Inlet Size | 3/4" |
| Outlet Size | 3/4" | End Connection | Sweat |
Details
| Series | LFFBV-3C-CC | Device Type | Ball |
| Lead Free | Yes | Body Material | Brass |
| Seat Material | PTFE | Port Style | Full |
| Max Pressure PSI | 400.0 psi | Pack Qty | 48 |
| Valve Ways | 2-Way | Body Construction | 2-Piece |
| Ball Material | Chrome-Plated Brass | Blowout Proof Stem | Yes |
| Handle Type | Lever | Actuation | Manual |
| WSP PSI | 150.0 psi | — | — |
Certifications & Standards
| NSF-61 | — |
Compare with similar products
| Port Style | Full
| Full
| Full
| Full
| Full
| Full
|
| Valve Ways | 2-Way
| 2-Way
| 2-Way
| 2-Way
| 2-Way
| 2-Way
|
| Body Construction | 2-Piece
| 2-Piece
| 2-Piece
| 2-Piece
| 2-Piece
| 2-Piece
|
| Ball Material | Chrome-Plated Brass
| Chrome-Plated Brass
| Chrome-Plated Brass
| Chrome-Plated Brass
| Chrome-Plated Brass
| Chrome-Plated Brass
|
| Blowout Proof Stem | Yes | Yes | Yes | Yes | Yes | Yes |
| Handle Type | Lever
| Lever
| Lever
| Lever
| Lever
| Lever
|
| Actuation | Manual
| Manual
| Manual
| Manual
| Manual
| Manual
|
| WSP PSI | 150.0 psi | 150.0 psi | — | 150.0 psi | — | — |
| Series | LFFBV-3C-CC
| LFFBV-3C
| LFFBV-4
| LFFBV-3C
| LFFBV-PEX-F1960
| LFFBV-PEX-F1960
|
| Country Of Origin | Mexico
| China
| Mexico
| China
| China
| China
|
| Warranty | 1 Year Limited
| 1 Year Limited
| 1 Year Limited
| 1 Year Limited
| 1 Year Limited
| 1 Year Limited
|
| Spec Sheet | ||||||
| Install Sheet | — | — | — | — | ||
| Device Type | Ball
| Ball
| Ball
| Ball
| Ball
| Ball
|
| Size Nominal | 3/4"
| 1"
| 2"
| 2"
| 1-1/4"
| 1-1/2"
|
| Inlet Size | 3/4"
| 1"
| 2"
| 2"
| 1-1/4"
| 1-1/2"
|
| Outlet Size | 3/4"
| 1"
| 2"
| 2"
| 1-1/4"
| 1-1/2"
|
| Lead Free | Yes | Yes | Yes | Yes | Yes | Yes |
| End Connection | Sweat
| FNPT
| NPT
| Sweat
| PEX
| PEX
|
| Body Material | Brass
| Brass
| Brass
| Brass
| Brass
| Brass
|
| Seat Material | PTFE
| PTFE
| PTFE
| PTFE
| EPDM
| EPDM
|
| Application | — | Domestic Water
| — | Domestic Water
| Domestic Water
| Domestic Water
|
| Max Pressure PSI | 400.0 psi | 600.0 psi | 600.0 psi | 600.0 psi | 160.0 psi | 160.0 psi |
| Max Temp °F | — | 400.0 °F | — | 400.0 °F | — | — |
| Certifications | NSF-61
| UL, FM, NSF-61
| — | UL, FM, NSF-61
| NSF-61, NSF-372
| NSF-61, NSF-372
|
| Pack Qty | 48
| 30
| 6
| 6
| 16
| 16
|
| Min Temp °F | — | 0.0 °F | — | 0.0 °F | — | — |
