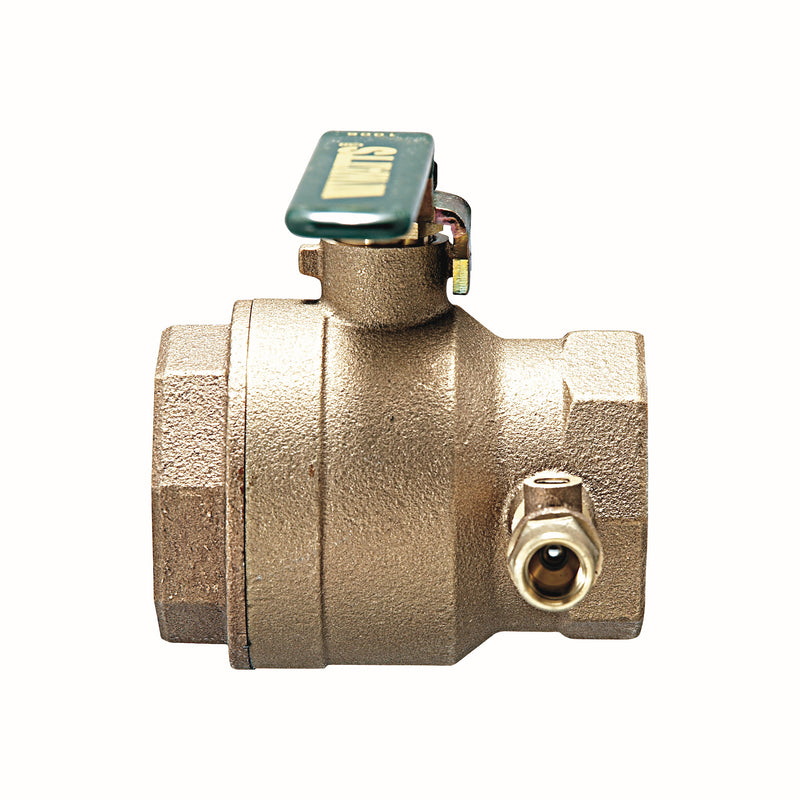

Watts LFFBV-TC 1 1/4 Lead-Free Balancing Valve, Bronze, FNPT

The Watts LFFBV-TC 1 1/4 is a 1-1/4" lead-free full-port throttling ball valve with FNPT connections. It features a bronze body and a ptfe seat. Rated to 600 psi and up to 350°F. This model is certified lead-free for potable-water installations.

This 1 1/4 inch lead free two-piece, full port, ball valve with female threaded end connections is used in commercial and industrial backflow applications. The valve features bronze body construction, adjustable packing gland, chrome-plated bronze ball, virgin PTFE seats and seals, a bottom loaded blowout proof stem, test cock and zinc-plated carbon steel handle with vinyl insulator. Each valve undergoes extensive factory testing before it is shipped, assuring a quality Watts product. The temperature range is 0 to 350 degrees F (-18 to 177 degrees C) at 50 psi (344.7 kPa). The pressure range is 600 psi (41.3 bar) WOG non-shock at 100 degrees F (38 degrees C) and 125 psi (8.6 bar) WSP.

Features

• Bronze body construction with chrome-plated brass ball
• Full port for minimal pressure drop
• Excellent for throttling and balancing applications for non-abrasive liquids
• Two-piece construction
• Includes: Test Cocks

Common Questions

Do I need a separate meter to read the flow?

The LFFBV-TC 1 1/4 has no metering ports and no flow dial, so it cannot measure flow at all — it only throttles it. Balance it against a flow meter elsewhere in the circuit, or choose a Watts CSM circuit sensor valve (PT ports) or an iDROSET CSD (direct-reading dial) if you need to measure and set flow at the valve.

Can it also shut off the circuit?

Yes. The LFFBV-TC 1 1/4 gives positive, drip-tight shutoff, so it doubles as the service valve for the circuit and you do not have to buy and install a separate ball valve next to it.

Can I use it on a domestic hot water recirculation line?

Legally, yes — the LFFBV-TC 1 1/4 is a lead-free model, so it is approved for potable water and can serve as the throttling and isolation valve on a DHW line. Practically, it is only half the job: the valve has no metering ports, so it cannot measure the recirculation flow you are trying to set. For balancing a DHW recirculation loop by the numbers, use the lead-free Watts LFCSM-61-S (PT-port) or LFiDROSET CSD (direct-reading) instead.

Specifications

• Type: Balancing
• Size: 1-1/4"
• Inlet Size: 1-1/4"
• Outlet Size: 1-1/4"
• Connection: FNPT
• Body Material: Bronze
• Seat / Seal Material: PTFE
• Max Pressure (psi): 600
• Application: Throttling & Isolation
• Pack Quantity: 6
• Country of Origin: China
• Warranty: 1 Year Limited
• MPN: LFFBV-TC 1 1/4
• Temperature: up to 350°F
• Lead-Free: Yes
• Balancing Type: Throttling Ball Valve
• Valve Functions: Balancing;Throttling;Shutoff
• Memory Stop: No
• Positive Shutoff: Yes
