Watts LFF6115-74JM 4 Lead-Free Pressure Reducing Valve, Ductile Iron, Flanged

The Watts LFF6115-74JM 4 is a 4" lead-free globe-pattern pilot-operated pressure reducing control valve with Flanged connections. It features a ductile iron body and a epdm seat. Rated to 600 psi and up to 300°F. This model is certified lead-free for potable-water installations.

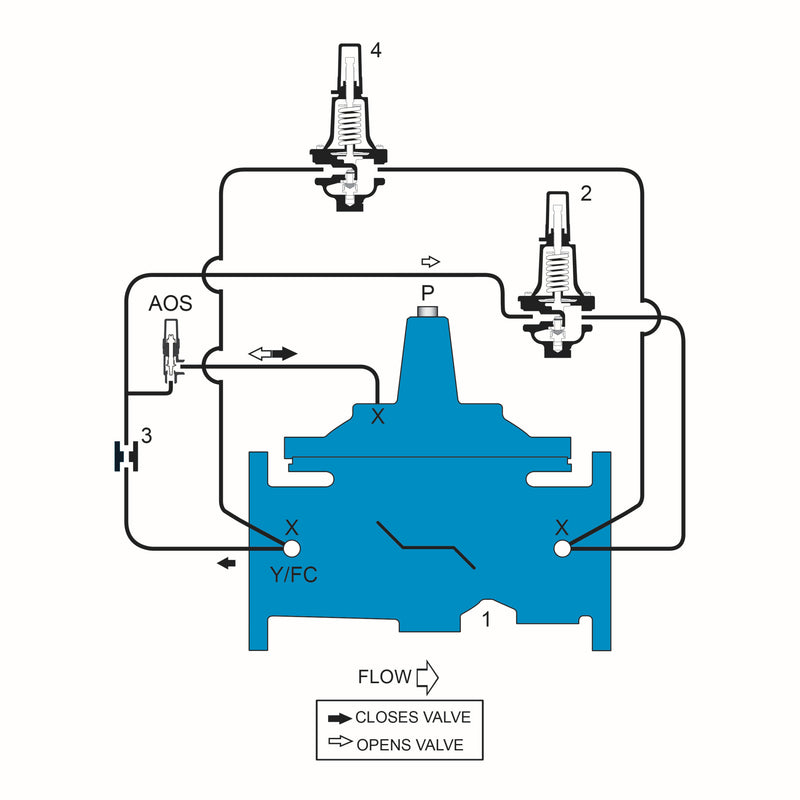

This 4 inch globe pattern class 150 flanged epoxy coated pressure reducing control valve, Classic series F6115-74, is designed to automatically reduce a fluctuating higher inlet pressure to a constant lower downstream pressure regardless of varying flow rates. The quick closing action of the valve limits possible damaging high inlet pressure from passing through the valve to downstream piping. Flow requirements below the normal range of the main line valve are handled by a separate, low flow by-pass valve. This valve includes reduced port, isolation cocks, and pilot circuit Y strainer. SentryPlus Alert® technology provides intelligent pressure monitoring and notifications using integrated sensors, and integrates with the Sensor Control Monitor to deliver maintenance alerts through BAS via RS-485 Modbus or the Nexa® platform over Wi-Fi.

Features

• Globe pattern
• Class 150 flanged
• Epoxy coated
• Integrates with the Sensor Control Monitor to deliver maintenance alerts to BAS via RS-485 Modbus or the Nexa platform by Wi-Fi connectivity
• Copper tubing/brass fittings

Common Questions

What does the "-74" low-flow bypass do?

A large control valve cannot hold a stable outlet pressure at very low demand, so downstream pressure creeps up overnight. The -74 adds a small bypass regulator piped around the main valve that takes over at low flow and holds the setpoint, then hands back to the main valve as demand rises. It is the standard fix for night-time pressure creep on municipal and campus mains.

What is the maximum working pressure?

This unit is built as 150# Flanged and is rated to 600 psi. End connection sets the ceiling on this platform, and 150# and 300# bodies are not interchangeable — confirm the class matches your flange drilling before ordering.

What fluid temperature can the EPDM trim handle?

This valve is built with EPDM elastomers, good to about 300°F. Watts offers the same body with Buna-N (to 160°F), FKM/Viton (to 250°F) or EPDM (to 300°F) — pick the elastomer for your fluid temperature, not the body.

Is this valve certified lead-free for potable water?

Yes. The "LF" prefix denotes Watts lead-free construction, compliant with the weighted-average 0.25% lead requirement of the Safe Drinking Water Act (NSF/ANSI 372) for potable-water service.

Specifications

• Type: Pressure Regulator
• Size: 4"
• Inlet Size: 4"
• Outlet Size: 4"
• Connection: Flanged
• Body Material: Ductile Iron
• Seat / Seal Material: EPDM
• Pressure Class: Class 150
• Max Pressure (psi): 600
• Operation: Pilot-Operated Diaphragm
• Port Style: Reduced
• Country of Origin: United States
• Warranty: 1 Year Limited
• MPN: LFF6115-74JM 4
• Temperature: up to 300°F
• Lead-Free: Yes
• Item Type: Valve
• Control Function: Pressure Reducing (Low-Flow Bypass)
• Valve Platform: Classic (F-Series)
• Body Pattern: Globe
• End Connection / Pressure Class: 150# Flanged
• Configured Options: Low-Flow Bypass;Strainer;Bypass
• Coating: Fusion-Bonded Epoxy
