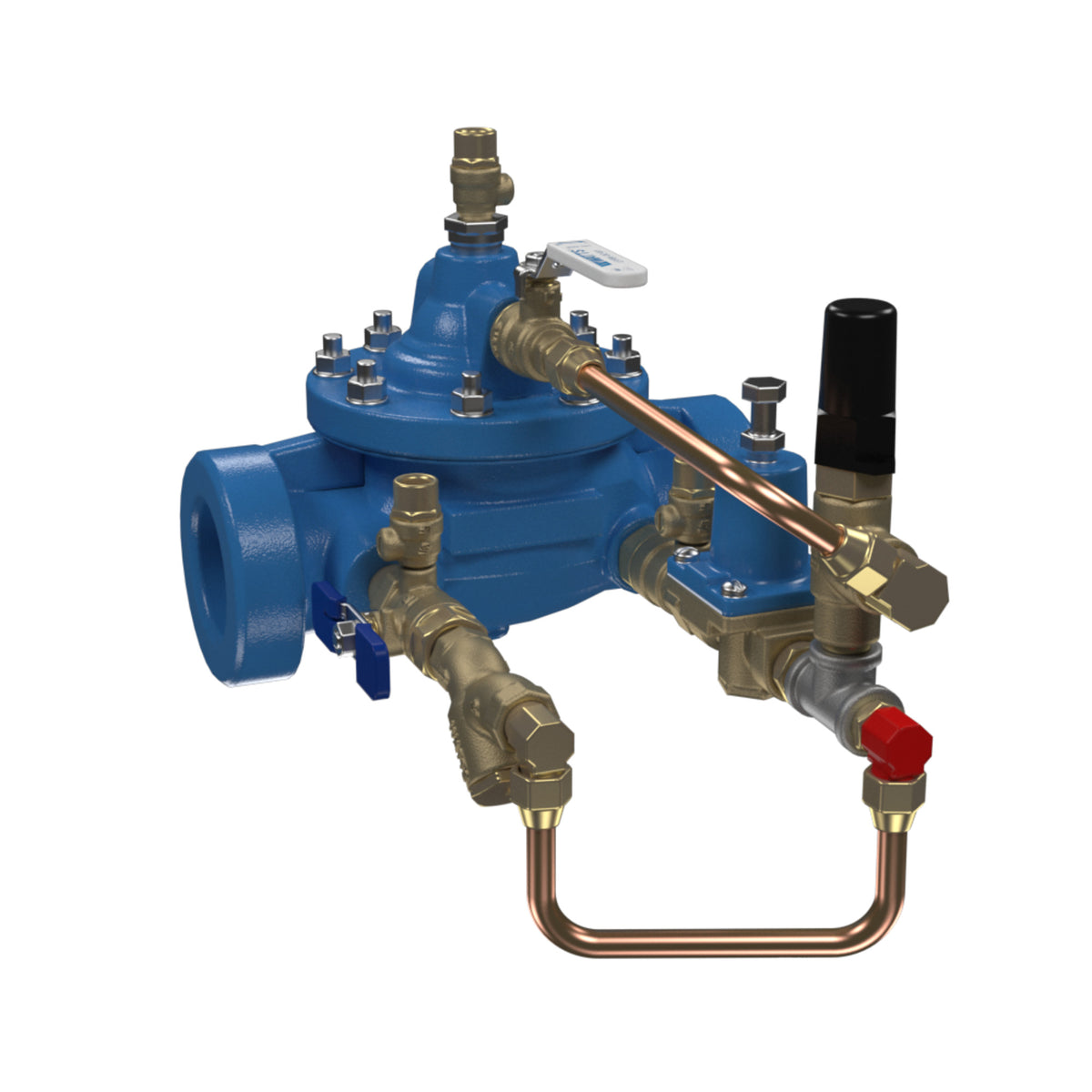

The Watts LFF115 2 THRD is a 2" lead-free globe-pattern pilot-operated pressure reducing control valve with NPT connections. It features a ductile iron body. Rated to 300 psi. This model is certified lead-free for potable-water installations.
This 2 inch globe pattern NPT threaded epoxy coated pressure reducing control valve, model 115, is designed to automatically reduce a fluctuating higher inlet pressure to a constant lower downstream pressure regardless of varying flow rates. The quick closing action of the valve limits possible damaging high inlet pressure from passing through the valve to downstream piping. This valve has an adjustable closing speed.
Features
- Globe pattern
- NPT threaded
- Epoxy coated
- Copper tubing/brass fittings
Common Questions
- What is the maximum working pressure?
- This unit is built as THD (NPT Threaded) and is rated to 300 psi. Threaded and grooved bodies on this platform carry a higher working pressure than 150# flanged bodies, so do not assume a flanged datasheet applies here.
- Is this valve certified lead-free for potable water?
- Yes. The "LF" prefix denotes Watts lead-free construction, compliant with the weighted-average 0.25% lead requirement of the Safe Drinking Water Act (NSF/ANSI 372) for potable-water service.
Specifications
- Type: Globe
- Size: 2"
- Inlet Size: 2"
- Outlet Size: 2"
- Connection: NPT
- Body Material: Ductile Iron
- Max Pressure (psi): 300
- Operation: Pilot-Operated Diaphragm
- Port Style: Full
- Country of Origin: United States
- Warranty: 1 Year Limited
- MPN: LFF115 2 THRD
- Lead-Free: Yes
- Item Type: Valve
- Control Function: Pressure Reducing
- Valve Platform: Classic (F-Series)
- Body Pattern: Globe
- End Connection / Pressure Class: THD (NPT Threaded)
- Coating: ArmorTek 3-Part Epoxy
Product Information
| SKU | UPC | Country of Origin | Warranty | Spec Sheet |
|---|---|---|---|---|
| VT200403 | 098268044522 | United States | 1 Year Limited | Download |
Dimensions
| Size Nominal | 2" | Inlet Size | 2" |
| Outlet Size | 2" | End Connection | NPT |
Details
| Series | LFF115 | Device Type | Globe |
| Lead Free | Yes | Body Material | Ductile Iron |
| Operation | Pilot-Operated Diaphragm | Port Style | Full |
| Max Pressure PSI | 300.0 psi | Item Type | Valve |
| Control Function | Pressure Reducing | Valve Platform | Classic (F-Series) |
| Body Pattern | Globe | Pressure Class End | THD (NPT Threaded) |
| Coating | ArmorTek 3-Part Epoxy | — | — |
Compare with similar products
| Item Type | Valve
| Valve
| Valve
| Valve
| Valve
| Valve
|
| Control Function | Pressure Reducing
| Pressure Reducing
| Pressure Reducing
| Pressure Reducing
| Pressure Reducing
| Pressure Reducing
|
| Valve Platform | Classic (F-Series)
| SentryPlus Alert (S-Series)
| SentryPlus Alert (S-Series)
| SentryPlus Alert (S-Series)
| SentryPlus Alert (S-Series)
| Mustang (M-Series)
|
| Body Pattern | Globe
| Globe
| Globe
| Globe
| Globe
| Globe
|
| Pressure Class End | THD (NPT Threaded)
| THD (NPT Threaded)
| 150# Flanged
| THD (NPT Threaded)
| 150# Flanged
| THD (NPT Threaded)
|
| Coating | ArmorTek 3-Part Epoxy
| Fusion-Bonded Epoxy
| Fusion-Bonded Epoxy
| Fusion-Bonded Epoxy
| Fusion-Bonded Epoxy
| ArmorTek 3-Part Epoxy
|
| Smart Monitoring | — | Yes
| Yes
| Yes
| Yes
| — |
| Series | LFF115
| S115
| S115
| S115
| S115
| LFM115
|
| Country Of Origin | United States
| United States
| United States
| United States
| United States
| United States
|
| Warranty | 1 Year Limited
| 1 Year Limited
| 1 Year Limited
| 1 Year Limited
| 1 Year Limited
| 1 Year Limited
|
| Spec Sheet | ||||||
| Install Sheet | — | |||||
| Device Type | Globe
| Pressure Regulator
| Pressure Regulator
| Pressure Regulator
| Pressure Regulator
| Pressure Regulator
|
| Size Nominal | 2"
| 1-1/2"
| 1-1/2"
| 3"
| 4"
| 2-1/2"
|
| Inlet Size | 2"
| 1-1/2"
| 1-1/2"
| 3"
| 4"
| 2-1/2"
|
| Outlet Size | 2"
| 1-1/2"
| 1-1/2"
| 3"
| 4"
| 2-1/2"
|
| Lead Free | Yes | — | — | — | — | Yes |
| End Connection | NPT
| NPT
| Flanged
| NPT
| Flanged
| NPT
|
| Body Material | Ductile Iron
| Ductile Iron
| Ductile Iron
| Ductile Iron
| Ductile Iron
| Ductile Iron
|
| Operation | Pilot-Operated Diaphragm
| Pilot-Operated Diaphragm
| Pilot-Operated Diaphragm
| Pilot-Operated Diaphragm
| Pilot-Operated Diaphragm
| Pilot-Operated Diaphragm
|
| Pressure Class | — | — | Class 150
| — | Class 150
| — |
| Max Pressure PSI | 300.0 psi | 400.0 psi | 250.0 psi | 400.0 psi | 250.0 psi | 600.0 psi |
