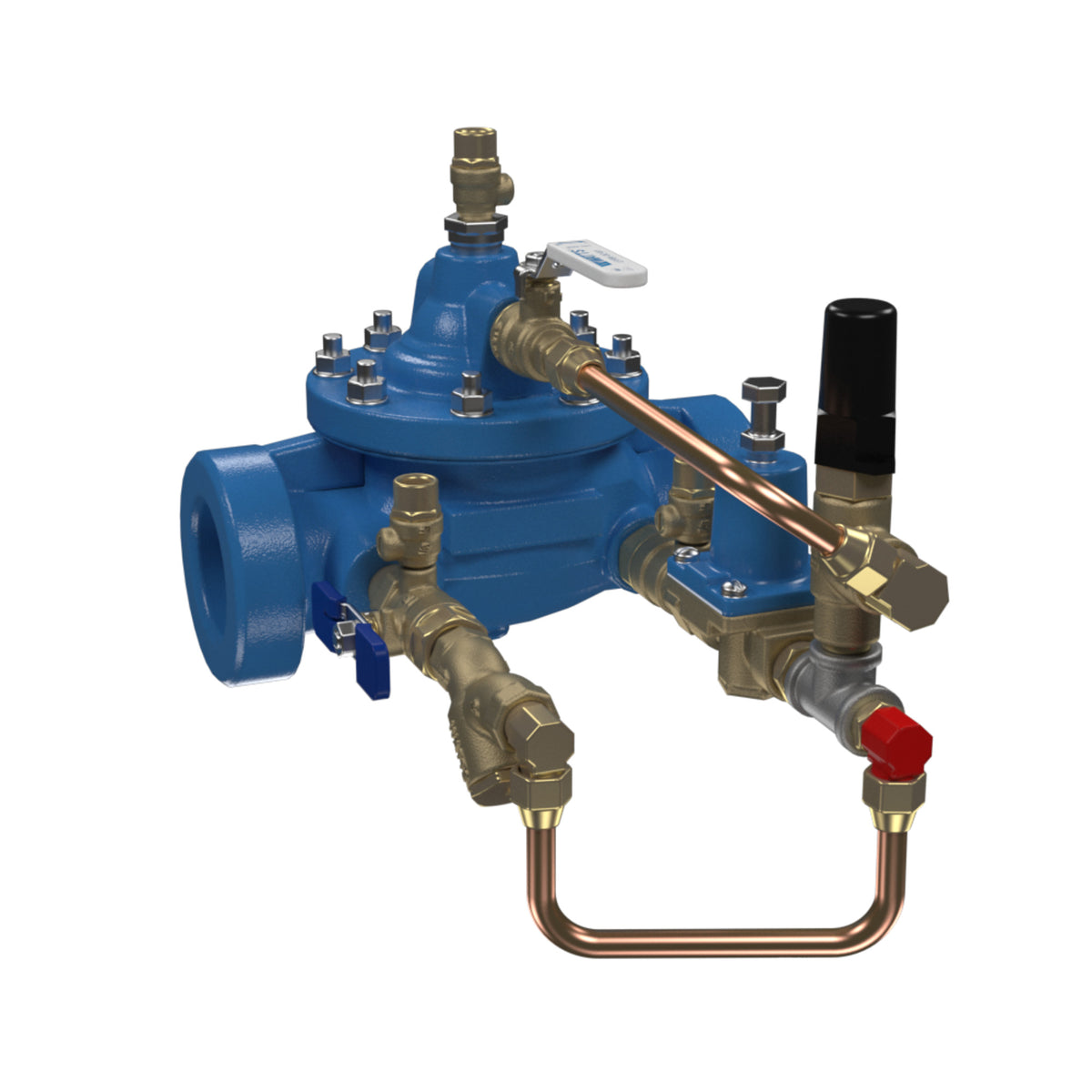

Watts LFF115 2 THRD Lead-Free Globe Valve, Ductile Iron, NPT

The Watts LFF115 2 THRD is a 2" lead-free globe-pattern pilot-operated pressure reducing control valve with NPT connections. It features a ductile iron body. Rated to 300 psi. This model is certified lead-free for potable-water installations.

This 2 inch globe pattern NPT threaded epoxy coated pressure reducing control valve, model 115, is designed to automatically reduce a fluctuating higher inlet pressure to a constant lower downstream pressure regardless of varying flow rates. The quick closing action of the valve limits possible damaging high inlet pressure from passing through the valve to downstream piping. This valve has an adjustable closing speed.

Features

• Globe pattern
• NPT threaded
• Epoxy coated
• Copper tubing/brass fittings

Common Questions

What is the maximum working pressure?

This unit is built as THD (NPT Threaded) and is rated to 300 psi. Threaded and grooved bodies on this platform carry a higher working pressure than 150# flanged bodies, so do not assume a flanged datasheet applies here.

Is this valve certified lead-free for potable water?

Yes. The "LF" prefix denotes Watts lead-free construction, compliant with the weighted-average 0.25% lead requirement of the Safe Drinking Water Act (NSF/ANSI 372) for potable-water service.

Specifications

• Type: Globe
• Size: 2"
• Inlet Size: 2"
• Outlet Size: 2"
• Connection: NPT
• Body Material: Ductile Iron
• Max Pressure (psi): 300
• Operation: Pilot-Operated Diaphragm
• Port Style: Full
• Country of Origin: United States
• Warranty: 1 Year Limited
• MPN: LFF115 2 THRD
• Lead-Free: Yes
• Item Type: Valve
• Control Function: Pressure Reducing
• Valve Platform: Classic (F-Series)
• Body Pattern: Globe
• End Connection / Pressure Class: THD (NPT Threaded)
• Coating: ArmorTek 3-Part Epoxy
