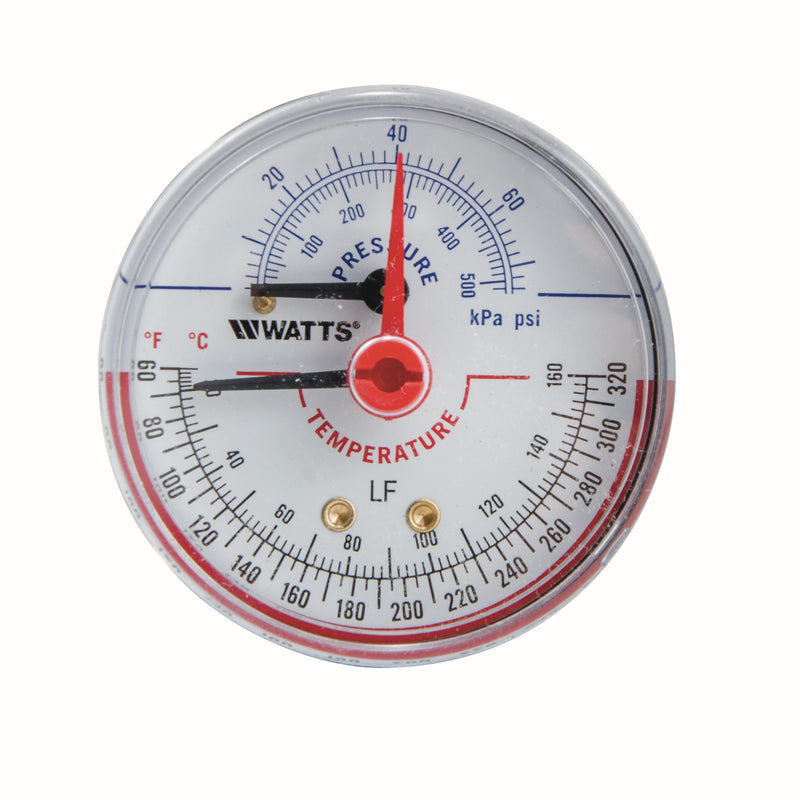

The Watts LFDPTG3L-2 1/2 0-75 1/4 is a 1/4" lead-free temperature gauge reading 0-75 psi. It features a steel body. Rated to 60°F to 320°F. This model is certified lead-free for potable-water installations.
This 1/4 inch lead free center back entry pressure temperature gauge is used in commercial, residential, and institutional HVAC applications. It features a black enamel steel case, Kostil polymer window, 1/2 inch NPT connection, bimetal spiral spring, extended mounting nut, and copper alloy Bourdon tube pressure element with ASME Type B accuracy. This gauge features a 2 1/2 inch dial with pressure rating scale from 0 to 75 psi and temperature range 60 to 320 degrees F.
Features
- Black enamel steel case
- Kostil polymer window
- Copper alloy Bourdon sensing element
- Tin alloy welding
Common Questions
- What is the indicating range?
- The dial reads 0-75 psi. Size the range to your working pressure — an oversized dial reads too coarse to be useful.
- How does it mount?
- It is a back entry gauge with a NPT connection.
Specifications
- Size: 1/4"
- Connection: NPT
- Body Material: Steel
- Application: General Service
- Pack Quantity: 40
- Country of Origin: BG
- Warranty: 1 Year Limited
- MPN: LFDPTG3L-2 1/2 0-75 1/4
- Temperature: 60°F to 320°F
- Certifications: ASME B40.100
- Lead-Free: Yes
- Type: Temperature Gauge
- Gauge Range: 0-75 psi
- Mount: Back Entry
- Dial Size: 2-1/2"
Product Information
| SKU | UPC | Country of Origin | Warranty | Spec Sheet |
|---|---|---|---|---|
| 0121724 | 098268590760 | BG | 1 Year Limited | Download |
Dimensions
| Size Nominal | 1/4" | End Connection | NPT |
Details
| Series | LFDPTG-3 | Lead Free | Yes |
| Body Material | Steel | Application | General Service |
| Max Temp °F | 320.0 °F | Pack Qty | 40 |
| Min Temp °F | 60.0 °F | Dial Size | 2-1/2" |
| Gauge mount | Back Entry | Gauge range | 0-75 psi |
| Tool role | Temperature Gauge | — | — |
Certifications & Standards
| ASME B40.100 | — |
