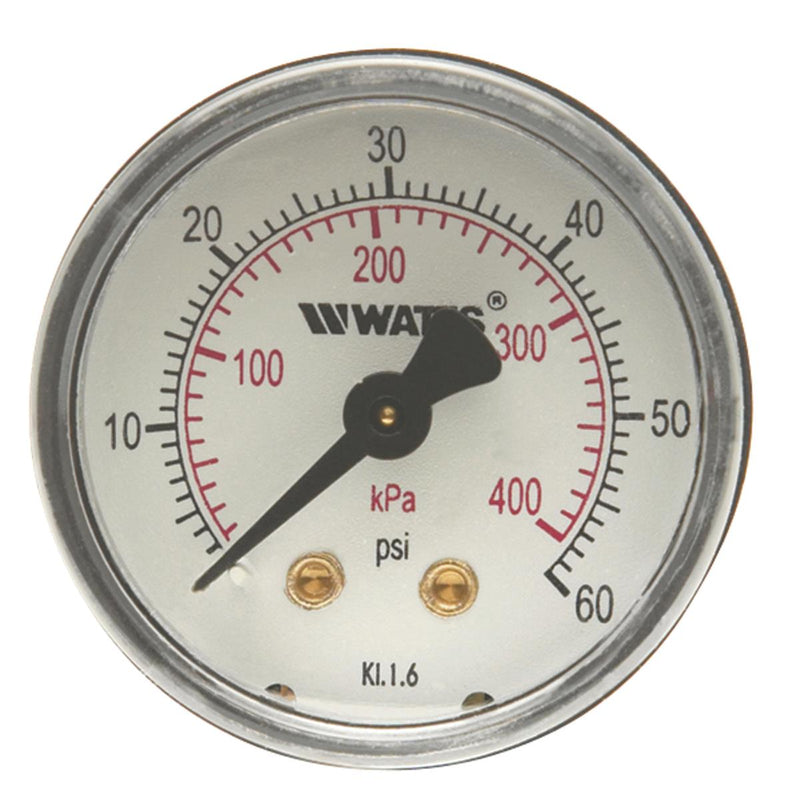

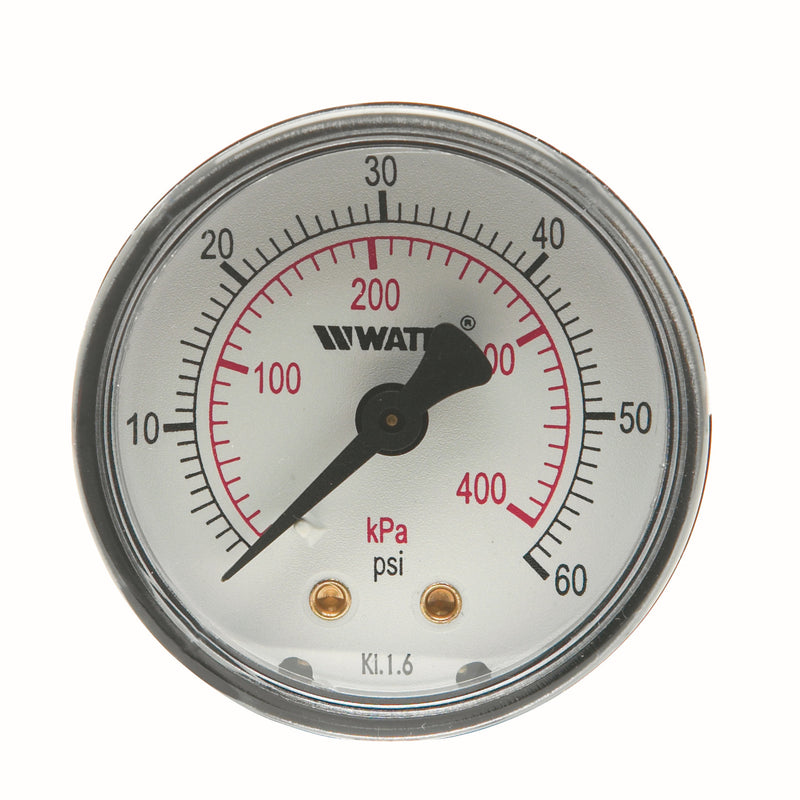

Watts LFDPG3-2 0-60 1/4 Lead-Free Pressure Gauge, ABS, NPT

The Watts LFDPG3-2 0-60 1/4 is a 1/4" lead-free pressure gauge reading 0-60 psi. It features a abs body. Rated to -4°F to 176°F. This model is certified lead-free for potable-water installations.

This 1/4 inch lead free center back entry pressure gauge is used in commercial, residential, and institutional HVAC applications. It features a black enamel steel case, Kostil polymer window, 1/4 inch NPT connection, bimetal spiral spring, copper alloy Bourdon tube pressure element with ASME Type B accuracy. This gauge features a 2 inch dial with pressure rating scale from 0 to 60 psi.

Features

• ABS polymer case
• Kostil polymer window
• Copper alloy Bourdon sensing element
• Tin alloy welding

Common Questions

What is the indicating range?

The dial reads 0-60 psi. Size the range to your working pressure — an oversized dial reads too coarse to be useful.

How does it mount?

It is a back entry gauge with a NPT connection.

Specifications

• Size: 1/4"
• Connection: NPT
• Body Material: ABS
• Application: General Service
• Pack Quantity: 100
• Country of Origin: BG
• Warranty: 1 Year Limited
• MPN: LFDPG3-2 0-60 1/4
• Temperature: -4°F to 176°F
• Certifications: ASME B40.100
• Lead-Free: Yes
• Type: Pressure Gauge
• Gauge Range: 0-60 psi
• Mount: Back Entry
• Dial Size: 2"
