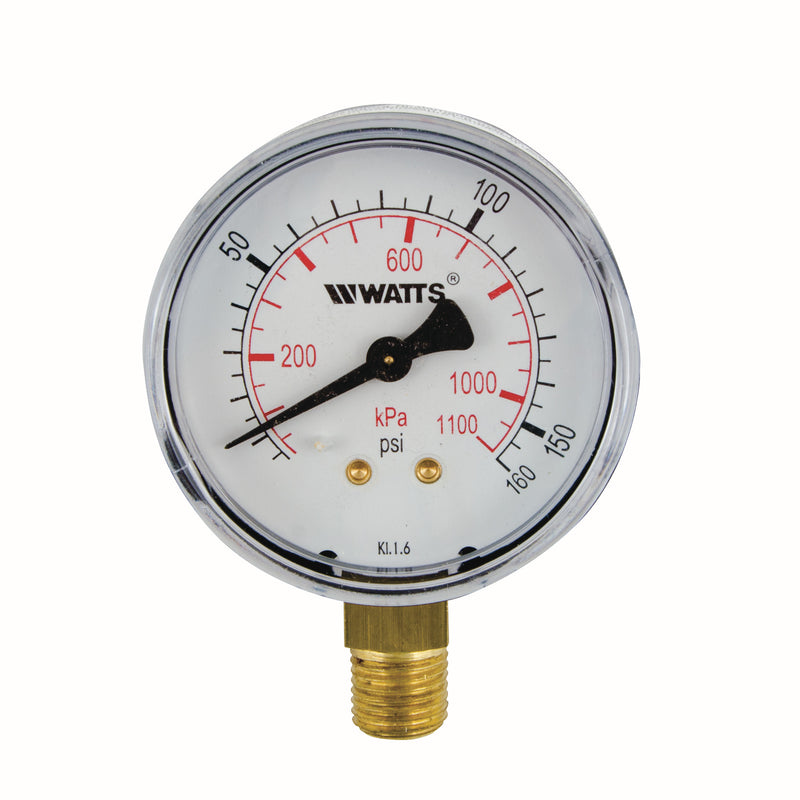

The Watts LFDPG1-3 0-160 1/4 is a 1/4" lead-free pressure gauge reading 0-160 psi. It features a abs body. Rated to -4°F to 176°F. This model is certified lead-free for potable-water installations.
This 1/4 inch lead free bottom entry pressure gauge is used in commercial, residential, and institutional HVAC applications. It features an ABS polymer case, Kostil polymer window, 1/4 inch NPT connection, and copper alloy Bourdon tube sensing element with ASME Type B accuracy. This gauge features a 3 inch dial with pressure rating scale from 0 to 160 psi.
Features
- ABS polymer case
- Kostil polymer window
- Copper alloy bourdon sensing element
- Tin alloy welding
Common Questions
- What is the indicating range?
- The dial reads 0-160 psi. Size the range to your working pressure — an oversized dial reads too coarse to be useful.
- How does it mount?
- It is a bottom entry gauge with a NPT connection.
Specifications
- Size: 1/4"
- Connection: NPT
- Body Material: ABS
- Application: General Service
- Pack Quantity: 18
- Country of Origin: BG
- Warranty: 1 Year Limited
- MPN: LFDPG1-3 0-160 1/4
- Temperature: -4°F to 176°F
- Certifications: ASME B40.100
- Lead-Free: Yes
- Type: Pressure Gauge
- Gauge Range: 0-160 psi
- Mount: Bottom Entry
- Dial Size: 3"
Product Information
| SKU | UPC | Country of Origin | Warranty | Spec Sheet |
|---|---|---|---|---|
| 0121648 | 098268588576 | BG | 1 Year Limited | Download |
Dimensions
| Size Nominal | 1/4" | End Connection | NPT |
Details
| Series | LFDPG-1 | Lead Free | Yes |
| Body Material | ABS | Application | General Service |
| Max Temp °F | 176.0 °F | Pack Qty | 18 |
| Min Temp °F | -4.0 °F | Dial Size | 3" |
| Gauge mount | Bottom Entry | Gauge range | 0-160 psi |
| Tool role | Pressure Gauge | — | — |
Certifications & Standards
| ASME B40.100 | — |
Compare with similar products
| Dial Size | 3"
| 2"
| 3"
| 2-1/2"
| 2"
| 2"
|
| Series | LFDPG-1
| LFDPG-3
| LFDPG-1
| LFDPG-1
| LFDPG-1
| LFDPG-5
|
| Country Of Origin | BG
| BG
| BG
| BG
| BG
| BG
|
| Warranty | 1 Year Limited
| 1 Year Limited
| 1 Year Limited
| 1 Year Limited
| 1 Year Limited
| 1 Year Limited
|
| Spec Sheet | ||||||
| Size Nominal | 1/4"
| 1/4"
| 1/4"
| 1/4"
| 1/4"
| 1/8"
|
| Lead Free | Yes | Yes | Yes | Yes | Yes | Yes |
| End Connection | NPT
| NPT
| NPT
| NPT
| NPT
| NPT
|
| Body Material | ABS
| ABS
| ABS
| ABS
| ABS
| ABS
|
| Application | General Service
| General Service
| General Service
| General Service
| General Service
| General Service
|
| Max Temp °F | 176.0 °F | 176.0 °F | 176.0 °F | 176.0 °F | 176.0 °F | 176.0 °F |
| Certifications | ASME B40.100
| ASME B40.100
| ASME B40.100
| ASME B40.100
| ASME B40.100
| ASME B40.100
|
| Pack Qty | 18
| 100
| 18
| 24
| 36
| 36
|
| Min Temp °F | -4.0 °F | -4.0 °F | -4.0 °F | -4.0 °F | -4.0 °F | -4.0 °F |
