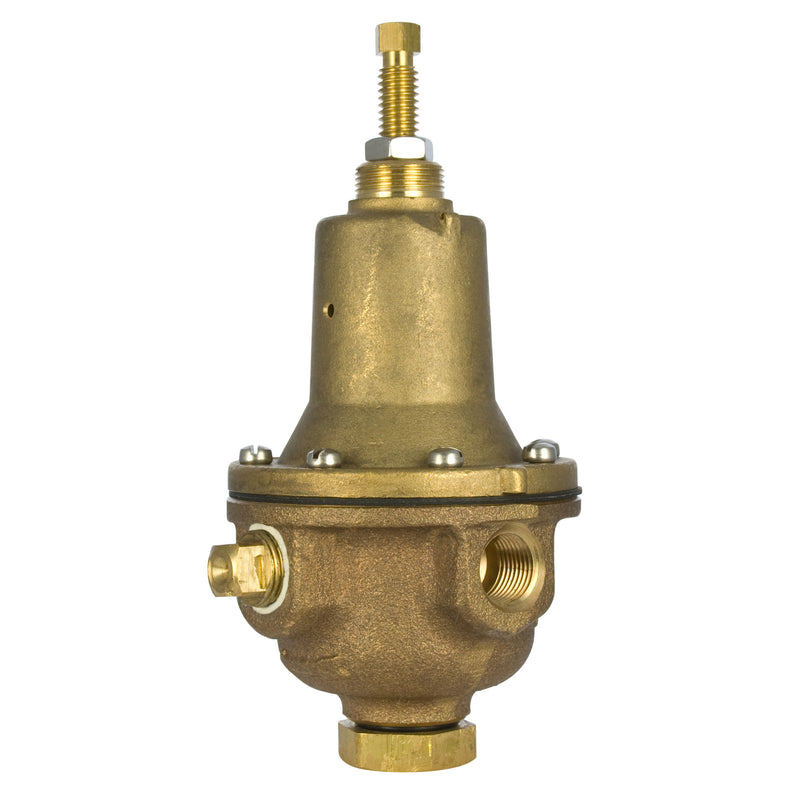

Watts LFCP-15 30-300PSI Lead-Free Pressure Reducing Valve, Brass, NPT

The Watts LFCP-15 30-300PSI is a direct-acting, diaphragm-actuated control pilot for Watts pilot-operated automatic control valves, adjustable from 30-300 psi. It is a pilot component, not a complete valve assembly. It features a brass body and a buna-n seat. Rated to 400 psi and up to 160°F. This model is certified lead-free for potable-water installations.

The 3/8 inch lead free pressure reducing pilot is a direct acting, diaphragm actuated control pilot that automatically reduces a higher upstream (inlet) pressure to a constant downstream (outlet) pressure. It is normally held open by the force of the adjustable spring setting above the diaphragm having a 30 to 300 psi adjustable range. It consists of a lead free brass body and spring housing, Buna-N rubber goods, NPT threaded female connections, and a pressure gauge port.

Features

• 30 to 300 psi adjustable range
• Lead free brass body construction
• Stainless steel trim
• 400 psi maximum working pressure

Common Questions

Is this a complete valve?

No. The LFCP-15 30-300PSI is a pilot that mounts on or supports a Watts automatic control valve. It does not include the main valve body. Order the main valve separately if you are replacing a complete assembly.

What setpoints does this pilot cover?

This pilot is spring-ranged for 30-300 psi. The spring range must bracket your desired setpoint — a pilot from a different range will not adjust to it.

Specifications

• Type: Pressure Regulator
• Connection: NPT
• Body Material: Brass
• Seat / Seal Material: Buna-N
• Max Pressure (psi): 400
• Country of Origin: United States
• Warranty: 1 Year Limited
• MPN: LFCP-15 30-300PSI
• Temperature: up to 160°F
• Lead-Free: Yes
• Item Type: Pilot
• Control Function: Pressure Reducing (Pilot)
• Pilot Adjustment Range (psi): 30-300
