Specifications
Description

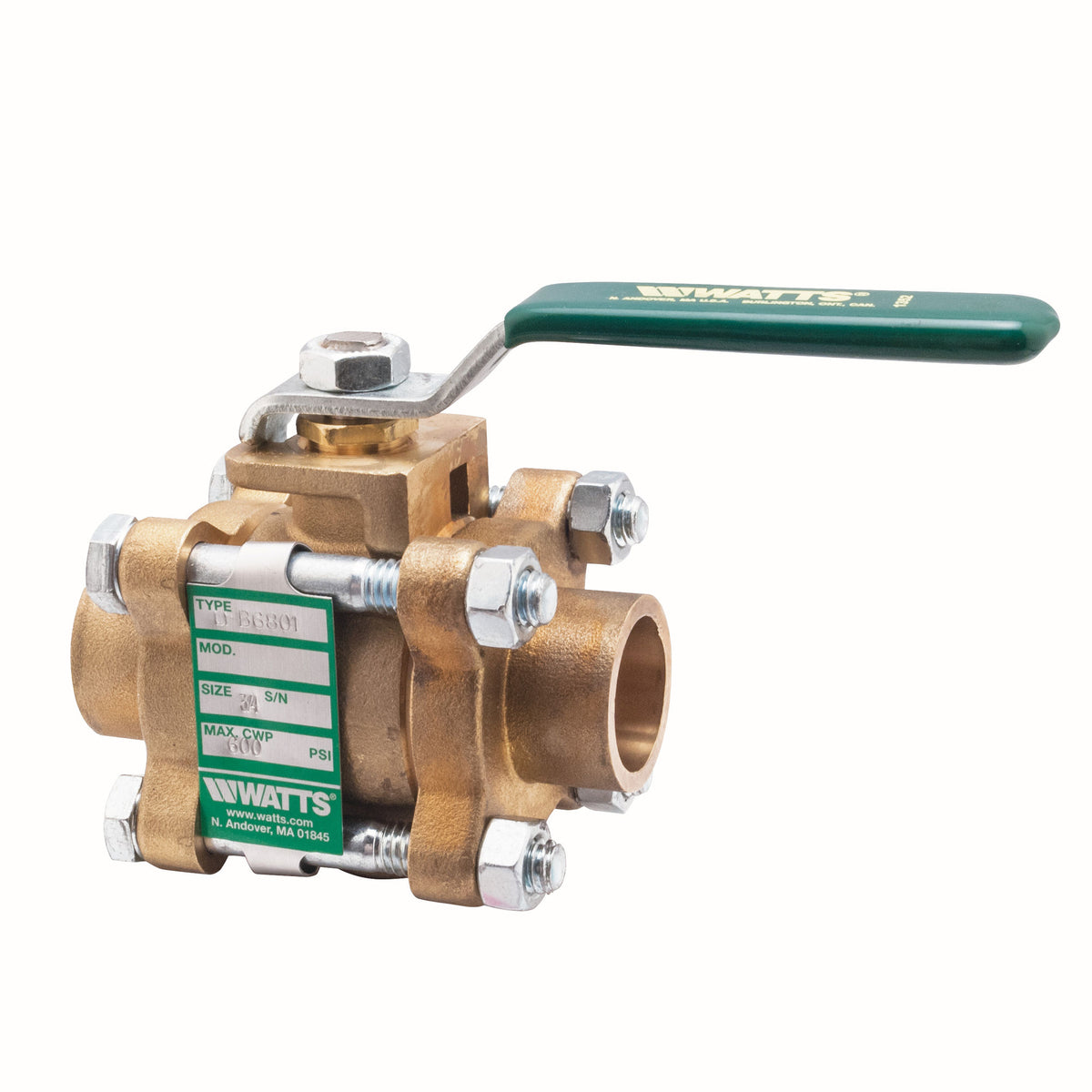

The Watts LFB6801-LL 3/4 is a 3/4" lead-free 3-piece full port ball valve with Sweat connections. It features a ptfe seat. Rated to 600 psi. This model is certified lead-free for potable-water installations.
This 3/4 inch 3-piece full port lead free ball valve is used in commercial and industrial applications. It features an in-line maintenance design that offers serviceability of all operating parts without disturbing the piping system. The full port orifice ensures maximum flow capacity. This valve consists of a lead free body with solder end connections, reinforced PTFE Durafill ® seat, chrome plated lead free brass ball, and blow-out proof stem provides maximum safety and highest operating pressure/temperature limits. This valve also includes a Latch-Lok handle for maximum safety.
Features
- Lead free construction
- Blowout proof pressure retaining stem
- Solder end connections
- Latch-Lok handle only
Common Questions
- Is this full port or standard port?
- Full port. The ball bore matches the 3/4" pipe ID, so the valve adds almost no restriction — the right choice for pump suction, main shutoffs, and any run where you cannot give up head.
- Can I use this on natural gas or propane?
- No. This valve carries no fuel-gas listing, and code requires an ANSI Z21.15 / CSA listed valve for natural gas or LP. Use a Watts GBV series gas ball valve instead.
- Is this rated for potable water?
- Yes. It is a lead-free model (weighted lead content at or below 0.25%), so it is legal for potable water. Check the spec sheet if your submittal specifically requires an NSF/ANSI 61 listing.
- Can I actuate this valve?
- Yes. The body has integral actuator mounting pads, so an electric or pneumatic actuator bolts straight on without a bracket kit. For a ready-to-wire assembly, look at the LFEMVII electric ball valves.
- Can it be serviced without cutting it out?
- Yes. The three-piece body unbolts so the center section — ball, seats, and stem — can be rebuilt with the end caps left in the line.
Specifications
- Type: Ball
- Size: 3/4"
- Inlet Size: 3/4"
- Outlet Size: 3/4"
- Connection: Sweat
- Seat / Seal Material: PTFE
- Max Pressure (psi): 600
- Port Style: Full
- Ways: 2-Way
- Pack Quantity: 16
- Country of Origin: United States
- Warranty: 1 Year Limited
- MPN: LFB6801-LL 3/4
- Lead-Free: Yes
- Valve Construction: 3-Piece
- Ball Material: Chrome-Plated Brass
- Blowout-Proof Stem: Yes
- Handle Type: Locking Lever
- Actuation: Manual
- Actuator Mounting: Mounting Pad
- Fuel Gas Rated: No
- Integral Drain / Waste Port: No
Product Information
| SKU | UPC | Country of Origin | Warranty | Spec Sheet |
|---|---|---|---|---|
| 0125249 | 098268853162 | United States | 1 Year Limited | Download |
Dimensions
| Size Nominal | 3/4" | Inlet Size | 3/4" |
| Outlet Size | 3/4" | End Connection | Sweat |
Details
| Series | LFB6801 | Device Type | Ball |
| Lead Free | Yes | Seat Material | PTFE |
| Port Style | Full | Max Pressure PSI | 600.0 psi |
| Pack Qty | 16 | Min Temp °F | 0.0 °F |
| Valve Ways | 2-Way | Body Construction | 3-Piece |
| Ball Material | Chrome-Plated Brass | Blowout Proof Stem | Yes |
| Handle Type | Locking Lever | Actuation | Manual |
| Actuator Mount | Mounting Pad | — | — |
Compare with similar products
| Port Style | Full
| Full
| Full
| Full
| Full
| Full
|
| Valve Ways | 2-Way
| 2-Way
| 2-Way
| 2-Way
| 2-Way
| 2-Way
|
| Body Construction | 3-Piece
| 2-Piece
| 2-Piece
| 2-Piece
| 2-Piece
| 2-Piece
|
| Ball Material | Chrome-Plated Brass
| Chrome-Plated Brass
| Chrome-Plated Brass
| Chrome-Plated Brass
| Chrome-Plated Brass
| Chrome-Plated Brass
|
| Blowout Proof Stem | Yes | Yes | Yes | Yes | Yes | Yes |
| Handle Type | Locking Lever
| Lever
| Lever
| Lever
| Lever
| Lever
|
| Actuation | Manual
| Manual
| Manual
| Manual
| Manual
| Manual
|
| WSP PSI | — | 150.0 psi | — | 150.0 psi | — | — |
| Series | LFB6801
| LFFBV-3C
| LFFBV-4
| LFFBV-3C
| LFFBV-PEX-F1960
| LFFBV-PEX-F1960
|
| Country Of Origin | United States
| China
| Mexico
| China
| China
| China
|
| Warranty | 1 Year Limited
| 1 Year Limited
| 1 Year Limited
| 1 Year Limited
| 1 Year Limited
| 1 Year Limited
|
| Spec Sheet | ||||||
| Install Sheet | — | — | — | — | ||
| Device Type | Ball
| Ball
| Ball
| Ball
| Ball
| Ball
|
| Size Nominal | 3/4"
| 1"
| 2"
| 2"
| 1-1/4"
| 1-1/2"
|
| Inlet Size | 3/4"
| 1"
| 2"
| 2"
| 1-1/4"
| 1-1/2"
|
| Outlet Size | 3/4"
| 1"
| 2"
| 2"
| 1-1/4"
| 1-1/2"
|
| Lead Free | Yes | Yes | Yes | Yes | Yes | Yes |
| End Connection | Sweat
| FNPT
| NPT
| Sweat
| PEX
| PEX
|
| Body Material | — | Brass
| Brass
| Brass
| Brass
| Brass
|
| Seat Material | PTFE
| PTFE
| PTFE
| PTFE
| EPDM
| EPDM
|
| Application | — | Domestic Water
| — | Domestic Water
| Domestic Water
| Domestic Water
|
| Max Pressure PSI | 600.0 psi | 600.0 psi | 600.0 psi | 600.0 psi | 160.0 psi | 160.0 psi |
| Max Temp °F | — | 400.0 °F | — | 400.0 °F | — | — |
| Certifications | — | UL, FM, NSF-61
| — | UL, FM, NSF-61
| NSF-61, NSF-372
| NSF-61, NSF-372
|
| Pack Qty | 16
| 30
| 6
| 6
| 16
| 16
|
| Min Temp °F | 0.0 °F | 0.0 °F | — | 0.0 °F | — | — |
