Specifications
Description

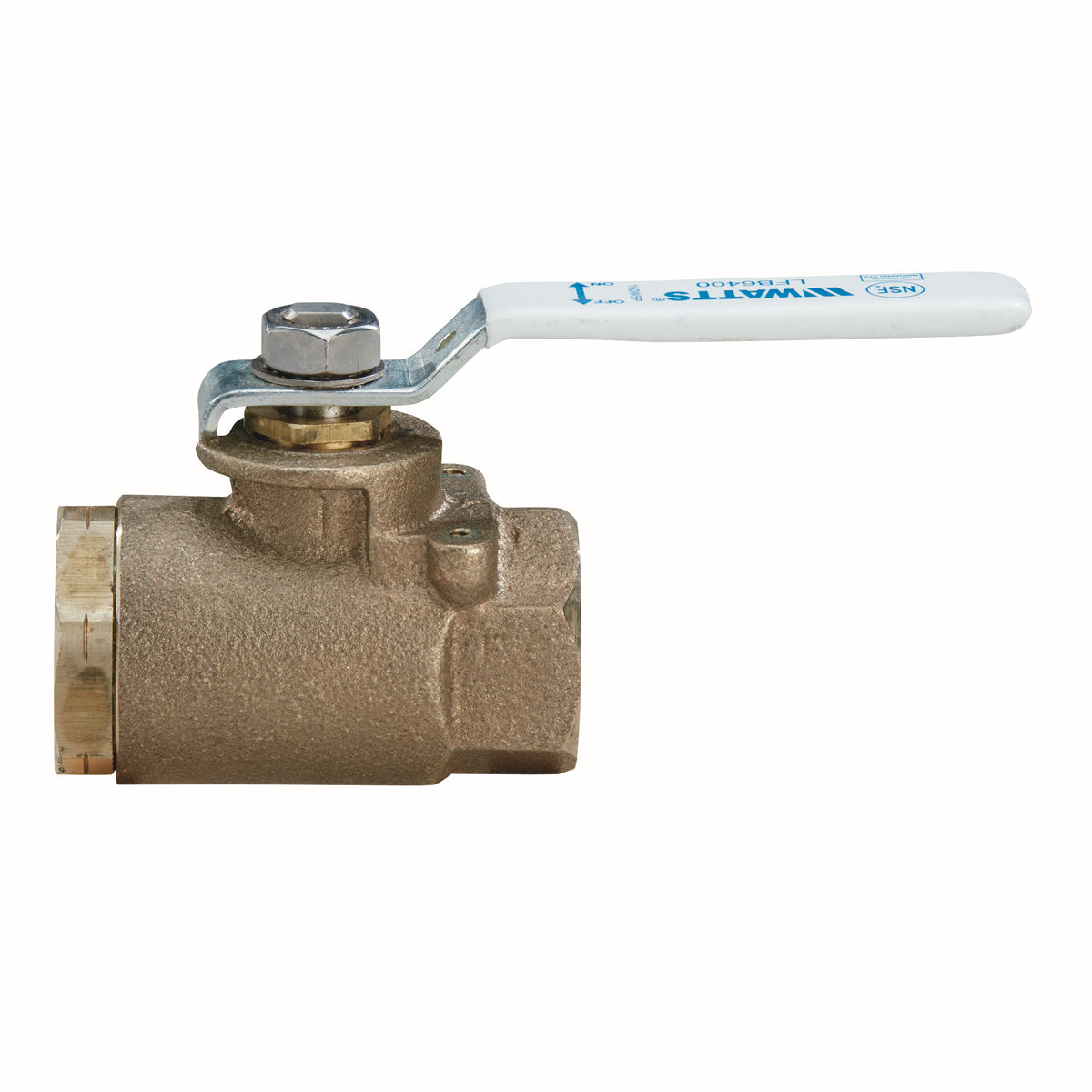

The Watts LFB6400 1/4 is a 1/4" lead-free 2-piece standard port ball valve with a lever handle. It features a copper body and a ptfe seat. Rated to 600 psi. This model is certified lead-free for potable-water installations.
This 1/4 inch 2-piece lead free copper silicon alloy standard port ball valve with actuator mounting pads is used in commercial and industrial applications for a wide range of liquids and gases. It consists of Durafill® (carbon/glass filled PTFE) seat, bottom loaded blowout proof stem, stainless steel ball and adjustable stem packing to provide lasting service. This ball valve is rated for 150 WSP/600 WOG.
Features
- Lead free copper silicon alloy body construction
- Blowout proof pressure retaining stem
- Adjustable stem packing gland
- Durafill seats
Common Questions
- Is this full port or standard port?
- Standard (conventional) port. The ball bore is one size down from the pipe, which trades a small pressure drop for a smaller, lighter, lower-torque valve. Fine for isolation duty; specify a full port model if flow is critical.
- Can I use this on natural gas or propane?
- No. This valve carries no fuel-gas listing, and code requires an ANSI Z21.15 / CSA listed valve for natural gas or LP. Use a Watts GBV series gas ball valve instead.
- Is this rated for potable water?
- Yes. It is a lead-free model (weighted lead content at or below 0.25%), so it is legal for potable water. Check the spec sheet if your submittal specifically requires an NSF/ANSI 61 listing.
- Can I actuate this valve?
- Yes. The body has integral actuator mounting pads, so an electric or pneumatic actuator bolts straight on without a bracket kit. For a ready-to-wire assembly, look at the LFEMVII electric ball valves.
- What's the steam rating?
- 150 psi WSP (saturated steam). Do not size steam service off the 600 psi figure — that is the WOG/CWP rating (cold water, oil, gas, non-shock).
- Can it be serviced without cutting it out?
- No. A 2-piece body is not designed for in-line rebuild; it is replaced as a unit. Choose a three-piece valve (LFB6800 / S-6800 series) where in-line serviceability matters.
Specifications
- Type: Ball
- Size: 1/4"
- Inlet Size: 1/4"
- Outlet Size: 1/4"
- Body Material: Copper
- Seat / Seal Material: PTFE
- Max Pressure (psi): 600
- Port Style: Standard
- Ways: 2-Way
- Pack Quantity: 48
- Country of Origin: United States
- Warranty: 1 Year Limited
- MPN: LFB6400 1/4
- Lead-Free: Yes
- Valve Construction: 2-Piece
- Ball Material: Stainless Steel
- Blowout-Proof Stem: Yes
- Handle Type: Lever
- Actuation: Manual
- Actuator Mounting: Mounting Pad
- Max Steam Pressure (WSP): 150
- Fuel Gas Rated: No
- Integral Drain / Waste Port: No
Product Information
| SKU | UPC | Country of Origin | Warranty |
|---|---|---|---|
| 0123190 | 098268669336 | United States | 1 Year Limited |
Dimensions
| Size Nominal | 1/4" | Inlet Size | 1/4" |
| Outlet Size | 1/4" | — | — |
Details
| Series | LFB6400 | Device Type | Ball |
| Lead Free | Yes | Body Material | Copper |
| Seat Material | PTFE | Port Style | Standard |
| Max Pressure PSI | 600.0 psi | Pack Qty | 48 |
| Min Temp °F | 55.0 °F | Valve Ways | 2-Way |
| Body Construction | 2-Piece | Ball Material | Stainless Steel |
| Blowout Proof Stem | Yes | Handle Type | Lever |
| Actuation | Manual | Actuator Mount | Mounting Pad |
| WSP PSI | 150.0 psi | — | — |
Compare with similar products
| Port Style | Standard
| Full
| Full
| Full
| Full
| Full
|
| Valve Ways | 2-Way
| 2-Way
| 2-Way
| 2-Way
| 2-Way
| 2-Way
|
| Body Construction | 2-Piece
| 2-Piece
| 2-Piece
| 2-Piece
| 2-Piece
| 2-Piece
|
| Ball Material | Stainless Steel
| Chrome-Plated Brass
| Chrome-Plated Brass
| Chrome-Plated Brass
| Chrome-Plated Brass
| Chrome-Plated Brass
|
| Blowout Proof Stem | Yes | Yes | Yes | Yes | Yes | Yes |
| Handle Type | Lever
| Lever
| Lever
| Lever
| Lever
| Lever
|
| Actuation | Manual
| Manual
| Manual
| Manual
| Manual
| Manual
|
| WSP PSI | 150.0 psi | 150.0 psi | — | 150.0 psi | — | — |
| Series | LFB6400
| LFFBV-3C
| LFFBV-4
| LFFBV-3C
| LFFBV-PEX-F1960
| LFFBV-PEX-F1960
|
| Country Of Origin | United States
| China
| Mexico
| China
| China
| China
|
| Warranty | 1 Year Limited
| 1 Year Limited
| 1 Year Limited
| 1 Year Limited
| 1 Year Limited
| 1 Year Limited
|
| Spec Sheet | — | |||||
| Install Sheet | — | — | — | — | ||
| Device Type | Ball
| Ball
| Ball
| Ball
| Ball
| Ball
|
| Size Nominal | 1/4"
| 1"
| 2"
| 2"
| 1-1/4"
| 1-1/2"
|
| Inlet Size | 1/4"
| 1"
| 2"
| 2"
| 1-1/4"
| 1-1/2"
|
| Outlet Size | 1/4"
| 1"
| 2"
| 2"
| 1-1/4"
| 1-1/2"
|
| Lead Free | Yes | Yes | Yes | Yes | Yes | Yes |
| End Connection | — | FNPT
| NPT
| Sweat
| PEX
| PEX
|
| Body Material | Copper
| Brass
| Brass
| Brass
| Brass
| Brass
|
| Seat Material | PTFE
| PTFE
| PTFE
| PTFE
| EPDM
| EPDM
|
| Application | — | Domestic Water
| — | Domestic Water
| Domestic Water
| Domestic Water
|
| Max Pressure PSI | 600.0 psi | 600.0 psi | 600.0 psi | 600.0 psi | 160.0 psi | 160.0 psi |
| Max Temp °F | — | 400.0 °F | — | 400.0 °F | — | — |
| Certifications | — | UL, FM, NSF-61
| — | UL, FM, NSF-61
| NSF-61, NSF-372
| NSF-61, NSF-372
|
| Pack Qty | 48
| 30
| 6
| 6
| 16
| 16
|
| Min Temp °F | 55.0 °F | 0.0 °F | — | 0.0 °F | — | — |
