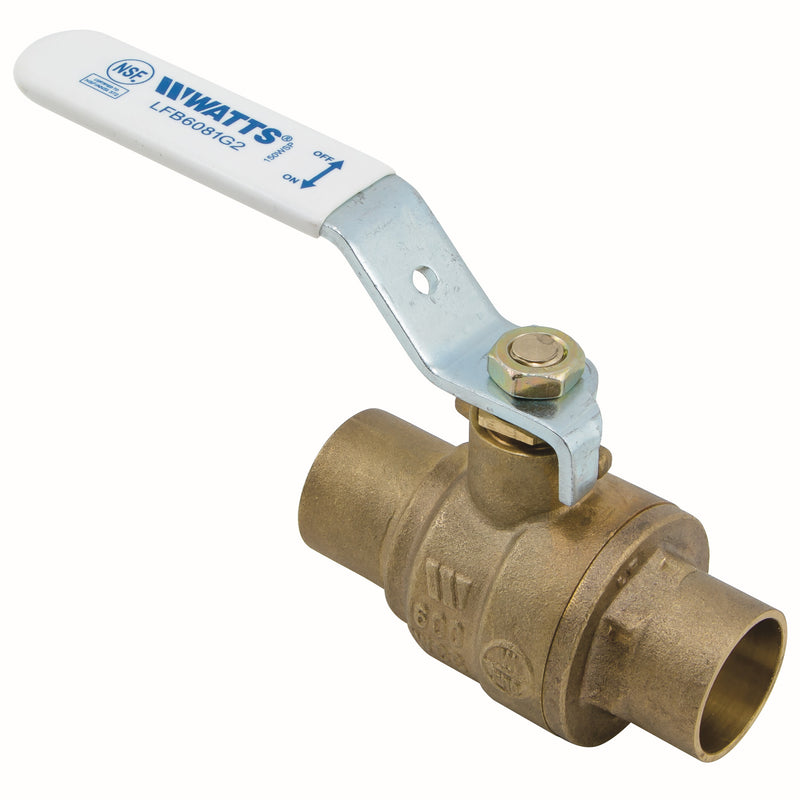

The Watts LFB6081G2 3/4 is a 3/4" lead-free 2-piece full port ball valve with Sweat connections. It features a bronze body and a fkm (viton) seat. Rated to 600 psi and 0°F to 400°F. This model is certified lead-free for potable-water installations.
This 3/4 inch lead free 2-piece full port bronze ball valve with a solder end connection is used in commercial and industrial applications for a full range of liquids and gases. A full port orifice ensures minimal pressure drop and the overall robust design provides lasting service. This ball valve is rated for 600 WOG/150 WSP.
Features
- Full port design
- NSF 61-G certification
- 600 psi WOG rating
- Solder end connection
Common Questions
- Is this full port or standard port?
- Full port. The ball bore matches the 3/4" pipe ID, so the valve adds almost no restriction — the right choice for pump suction, main shutoffs, and any run where you cannot give up head.
- Can I use this on natural gas or propane?
- No. This valve carries no fuel-gas listing, and code requires an ANSI Z21.15 / CSA listed valve for natural gas or LP. Use a Watts GBV series gas ball valve instead.
- Is this rated for potable water?
- Yes. It is a lead-free model certified to NSF/ANSI 61 and NSF/ANSI 372, so it meets the Safe Drinking Water Act limit for potable-water service.
- What's the steam rating?
- 150 psi WSP (saturated steam). Do not size steam service off the 600 psi figure — that is the WOG/CWP rating (cold water, oil, gas, non-shock).
- Can it be serviced without cutting it out?
- No. A 2-piece body is not designed for in-line rebuild; it is replaced as a unit. Choose a three-piece valve (LFB6800 / S-6800 series) where in-line serviceability matters.
Specifications
-
Type: Ball
-
Size: 3/4"
-
Inlet Size: 3/4"
-
Outlet Size: 3/4"
-
Connection: Sweat
-
Body Material: Bronze
-
Seat / Seal Material: FKM (Viton)
-
Max Pressure (psi): 600
-
Port Style: Full
-
Ways: 2-Way
-
Pack Quantity: 40
-
Country of Origin: United States
-
Warranty: 1 Year Limited
-
MPN: LFB6081G2 3/4
-
Temperature: 0°F to 400°F
-
Certifications: NSF-372, NSF-61
-
Lead-Free: Yes
-
Valve Construction: 2-Piece
-
Blowout-Proof Stem: Yes
-
Handle Type: Lever
-
Actuation: Manual
-
Max Steam Pressure (WSP): 150
-
Fuel Gas Rated: No
-
Integral Drain / Waste Port: No
