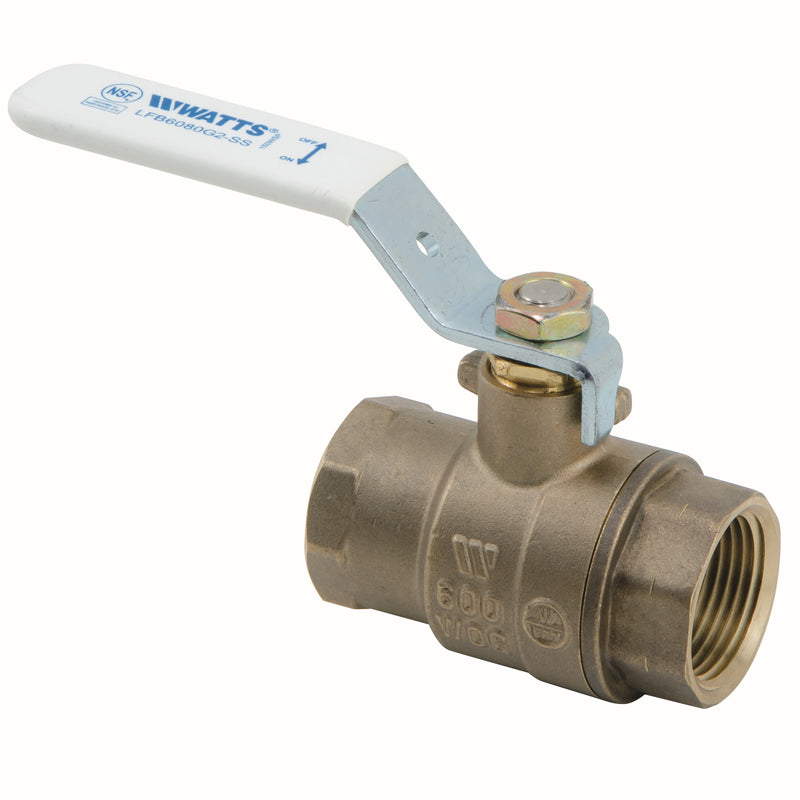

Watts LFB6080G2-SS 1 Lead-Free Ball Valve, Bronze, NPT

The Watts LFB6080G2-SS 1 is a 1" lead-free 2-piece full port ball valve with NPT connections. It features a bronze body and a ptfe seat. Rated to 600 psi and 0°F to 400°F. This model is certified lead-free for potable-water installations.

This 1 inch lead free 2-piece full port ball valve with stainless steel ball and stem and NPT threaded end connections is used in commercial and industrial applications for a full range of liquids and gases. A full port orifice ensures minimal pressure drop, while the stainless steel ball and stem provide lasting service. It consists of Durafill (carbon glass filled PTFE) seat, bottom loaded blowout proof stem, and adjustable stem packing. This ball valve is rated for 600 WOG/150 WSP.

Features

• Stainless steel ball and stem
• White handles for easy lead free identification
• 600 WOG, 150 WSP
• Full port design

Common Questions

Is this full port or standard port?

Full port. The ball bore matches the 1" pipe ID, so the valve adds almost no restriction — the right choice for pump suction, main shutoffs, and any run where you cannot give up head.

Can I use this on natural gas or propane?

No. This valve carries no fuel-gas listing, and code requires an ANSI Z21.15 / CSA listed valve for natural gas or LP. Use a Watts GBV series gas ball valve instead.

Is this rated for potable water?

Yes. It is a lead-free model certified to NSF/ANSI 61 and NSF/ANSI 372, so it meets the Safe Drinking Water Act limit for potable-water service.

What's the steam rating?

150 psi WSP (saturated steam). Do not size steam service off the 600 psi figure — that is the WOG/CWP rating (cold water, oil, gas, non-shock).

Can it be serviced without cutting it out?

No. A 2-piece body is not designed for in-line rebuild; it is replaced as a unit. Choose a three-piece valve (LFB6800 / S-6800 series) where in-line serviceability matters.

Specifications

• Type: Ball
• Size: 1"
• Inlet Size: 1"
• Outlet Size: 1"
• Connection: NPT
• Body Material: Bronze
• Seat / Seal Material: PTFE
• Max Pressure (psi): 600
• Port Style: Full
• Ways: 2-Way
• Pack Quantity: 24
• Country of Origin: United States
• Warranty: 1 Year Limited
• MPN: LFB6080G2-SS 1
• Temperature: 0°F to 400°F
• Certifications: NSF-61, NSF-372
• Lead-Free: Yes
• Valve Construction: 2-Piece
• Ball Material: Stainless Steel
• Stem Material: Stainless Steel
• Blowout-Proof Stem: Yes
• Handle Type: Lever
• Actuation: Manual
• Max Steam Pressure (WSP): 150
• Fuel Gas Rated: No
• Integral Drain / Waste Port: No
