Specifications
Description

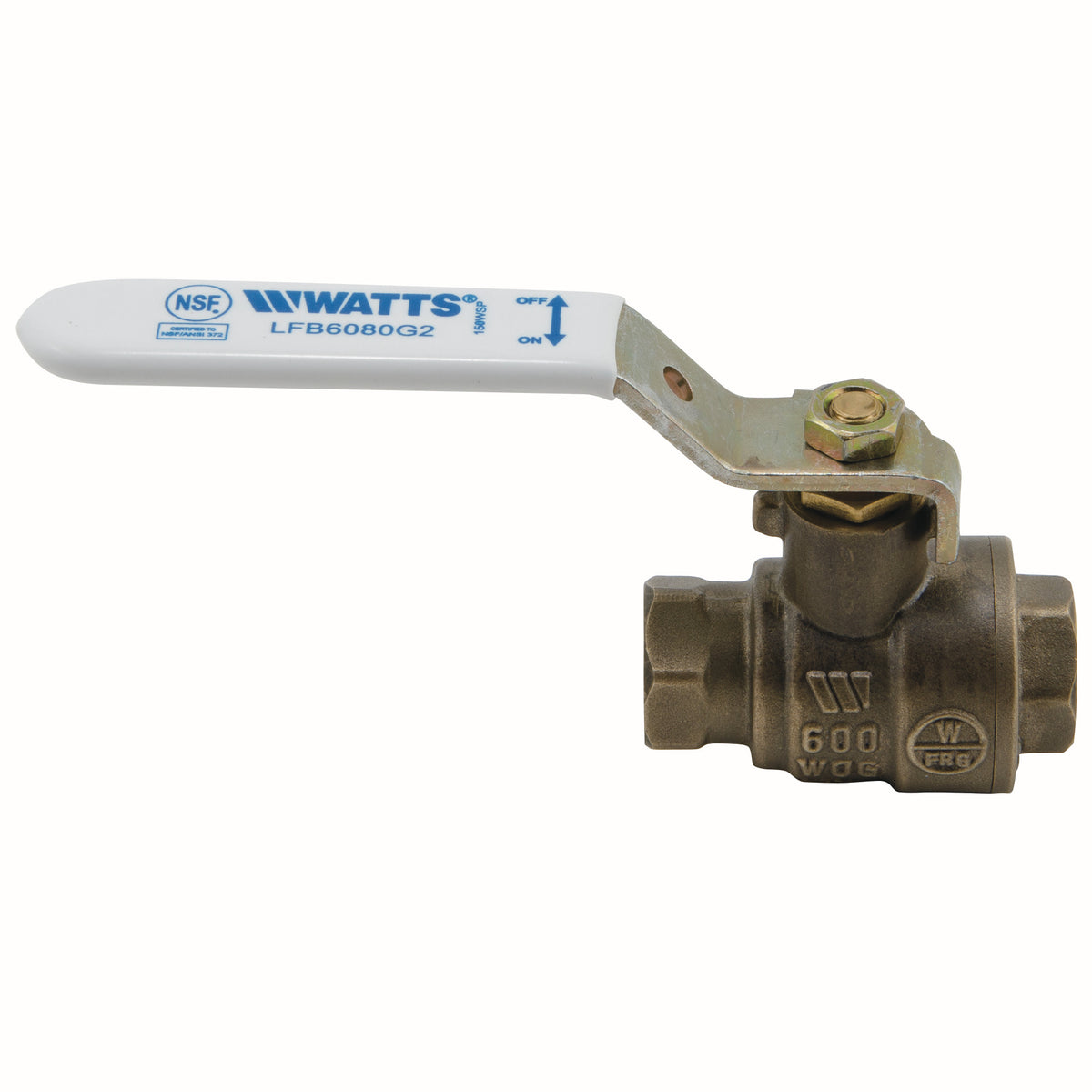

The Watts LFB6080G2 1 1/2 is a 1-1/2" lead-free 2-piece full port ball valve with NPT connections. It features a bronze body and a fkm (viton) seat. Rated to 600 psi and 0°F to 400°F. This model is certified lead-free for potable-water installations.
This 1 1/2 inch lead free 2-piece full port bronze ball valve with a threaded end connection is used in commercial and industrial applications for a full range of liquids and gases. A full port orifice ensures minimal pressure drop and the overall robust design provides lasting service. This ball valve is rated for 600 WOG/150 WSP.
Features
- Full port design
- NSF 61-G certification
- 600 psi WOG rating
- NPT threaded end connection
Common Questions
- Is this full port or standard port?
- Full port. The ball bore matches the 1-1/2" pipe ID, so the valve adds almost no restriction — the right choice for pump suction, main shutoffs, and any run where you cannot give up head.
- Can I use this on natural gas or propane?
- No. This valve carries no fuel-gas listing, and code requires an ANSI Z21.15 / CSA listed valve for natural gas or LP. Use a Watts GBV series gas ball valve instead.
- Is this rated for potable water?
- Yes. It is a lead-free model certified to NSF/ANSI 61 and NSF/ANSI 372, so it meets the Safe Drinking Water Act limit for potable-water service.
- What's the steam rating?
- 150 psi WSP (saturated steam). Do not size steam service off the 600 psi figure — that is the WOG/CWP rating (cold water, oil, gas, non-shock).
- Can it be serviced without cutting it out?
- No. A 2-piece body is not designed for in-line rebuild; it is replaced as a unit. Choose a three-piece valve (LFB6800 / S-6800 series) where in-line serviceability matters.
Specifications
- Type: Ball
- Size: 1-1/2"
- Inlet Size: 1-1/2"
- Outlet Size: 1-1/2"
- Connection: NPT
- Body Material: Bronze
- Seat / Seal Material: FKM (Viton)
- Max Pressure (psi): 600
- Port Style: Full
- Ways: 2-Way
- Pack Quantity: 6
- Country of Origin: United States
- Warranty: 1 Year Limited
- MPN: LFB6080G2 1 1/2
- Temperature: 0°F to 400°F
- Certifications: NSF-372, NSF-61
- Lead-Free: Yes
- Valve Construction: 2-Piece
- Blowout-Proof Stem: Yes
- Handle Type: Lever
- Actuation: Manual
- Max Steam Pressure (WSP): 150
- Fuel Gas Rated: No
- Integral Drain / Waste Port: No
Product Information
| SKU | UPC | Country of Origin | Warranty | Spec Sheet |
|---|---|---|---|---|
| 0450106 | 098268763478 | United States | 1 Year Limited | Download |
Dimensions
| Size Nominal | 1-1/2" | Inlet Size | 1-1/2" |
| Outlet Size | 1-1/2" | End Connection | NPT |
Details
| Series | LFB6080G2 | Device Type | Ball |
| Lead Free | Yes | Body Material | Bronze |
| Seat Material | FKM (Viton) | Port Style | Full |
| Max Pressure PSI | 600.0 psi | Max Temp °F | 400.0 °F |
| Pack Qty | 6 | Min Temp °F | 0.0 °F |
| Valve Ways | 2-Way | Body Construction | 2-Piece |
| Blowout Proof Stem | Yes | Handle Type | Lever |
| Actuation | Manual | WSP PSI | 150.0 psi |
Certifications & Standards
| NSF-372 | NSF-61 |
