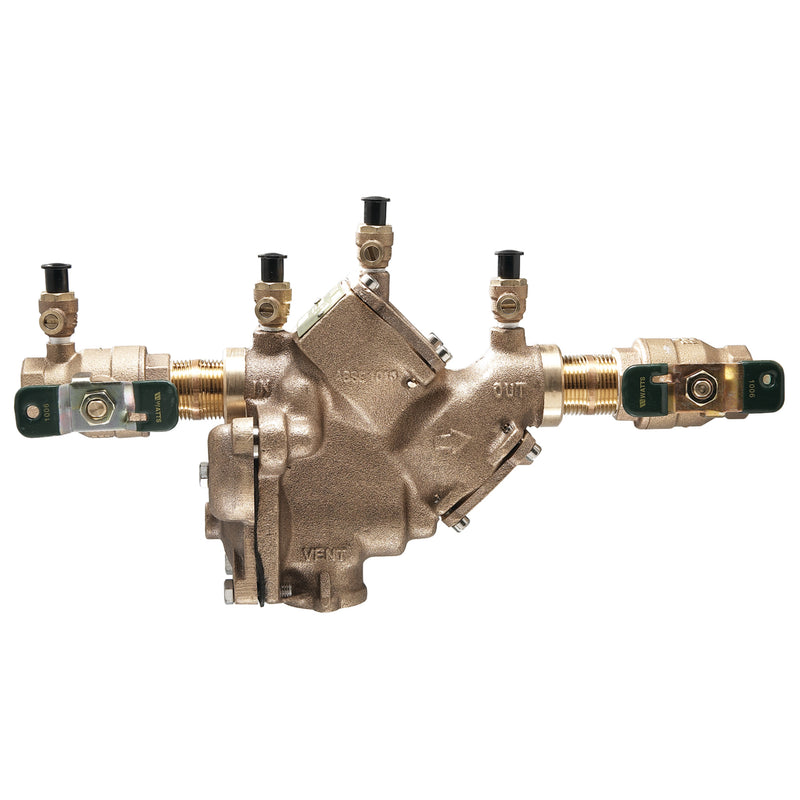

Watts LF909-QT-HW 3/4 Lead-Free RPZ Backflow Preventer, Copper

SKU: 0792031
Price:
Sale price$3,501.96 Regular price$5,030.00
Stock:

Not in regular stock. We order it, inspect it and ship it to you. Delivery times may vary.

Subtotal: $3,501.96

Free shipping over $200

Key Features

Assembly Type RPZ
Hazard Rating High Health Hazard
ASSE Standard ASSE 909, ASSE 1013
Spec Sheet Download
See all product information

Similar products

Watts 3/4" Backflow Preventer LF009M3QT.34
Watts Watts 3/4" Backflow Preventer LF009M3QT.34
Sale price$738.73 Regular price$1,590.00
Watts LF007M1-QT-FZ 2
Watts LF007-QT-FZ 1/2
Compare Products

Specifications

Description

The Watts LF909-QT-HW 3/4 is a 3/4" lead-free reduced pressure zone (RPZ) backflow preventer, approved for high health hazard protection. It features a copper body. Rated to 175 psi and 33°F to 140°F. This model is certified lead-free for potable-water installations.

This 3/4 inch lead free reduced pressure zone backflow preventer assembly with its exclusive design incorporating the patented air-in and water-out principle for protection during an emergency condition prevents the flow of polluted water from entering into the potable water supply due to backsiphonage and or backpressure in accordance with national plumbing codes and water authority requirements. Its compact modular design facilitates easy maintenance for in-line repairs. It can be installed horizontal or vertical without the need of any special tools. It is ideal for protection in continuous pressure piping applications and at cross-connections identified as health hazards and from other contaminants found at the service line entrance. This assembly consists of a lead free bronze body, quarter turn ball valve shutoffs with tee handles, stainless steel check modules for hot and harsh water conditions, replaceable seats, top mounted test cocks, and a pressure differential relief valve.

Features

  • Lead free bronze body
  • Unique patented air-in and water-out design provides high capacity relief valve discharge performance during emergency conditions
  • Compact for easy installation
  • Quarter turn ball valves with tee handles
  • Single access cover
  • Horizontal or vertical (up or down) installation
  • Top mounted test cocks
  • No special tools are required for servicing
  • Replaceable seats
  • Includes: Test Cocks

Common Questions

What hazard level is this RPZ approved for?
It is rated for high health hazard (toxic) cross-connections, so it may be used on either high or low hazard service. The assembly is listed to ASSE 909 and ASSE 1013.
Is this model legal for potable water?
Yes. It is certified lead-free to NSF/ANSI 372, which is what state plumbing codes require for any device in a drinking-water line.
Does this assembly have to be tested every year?
Yes. This is a field-testable assembly with 4 test cocks. Most water authorities require it to be tested and certified by a licensed backflow tester at installation and annually thereafter. It carries USC FCCCHR approval, which many jurisdictions accept as their sole approval list.
What shutoff valves are included?
It is supplied with quarter-turn ball valves on the inlet and outlet.
How does this have to be installed?
It is approved for either horizontal or vertical installation, with the flow arrow on the body pointing in the direction of flow.
Does the relief valve need a drain?
Yes. An RPZ relief valve is designed to discharge, and it can dump a large volume of water, so it must never be installed in a pit or below grade and the discharge must be piped to an adequate drain through an air gap. The air gap fitting is not included with this model and is ordered separately.

Specifications

  • Type: RPZ
  • Size: 3/4"
  • Inlet Size: 3/4"
  • Outlet Size: 3/4"
  • Body Material: Copper
  • Max Pressure (psi): 175
  • Application: Domestic Water
  • Backflow Protection: Both
  • Operation: Continuous
  • Country of Origin: United States
  • Warranty: 1 Year Limited
  • MPN: LF909-QT-HW 3/4
  • Temperature: 33°F to 140°F
  • Certifications: ASSE-909, ASSE-1013, CSA-B64, USC, IAPMO
  • Lead-Free: Yes
  • Assembly Type: RPZ
  • Hazard Protection Level: High Health Hazard
  • ASSE Standard: ASSE 909;ASSE 1013
  • USC FCCCHR Approved: Yes
  • Field Testable: Yes
  • Number of Test Cocks: 4
  • Shutoff Valves: Quarter-Turn Ball
  • Approved Orientation: Horizontal & Vertical
  • Flood Sensor (SentryPlus Alert): No
  • Strainer Included: No
  • Air Gap Fitting Included: No

Product Information

SKUUPCCountry of OriginWarrantySpec SheetInstall Sheet
0792031 098268434149 United States 1 Year Limited DownloadDownload

Dimensions

Size Nominal 3/4" Inlet Size 3/4"
Outlet Size 3/4" ——

Details

Series LF909 Small Device Type RPZ
Lead Free Yes Body Material Copper
Application Domestic Water Operation Continuous
Max Pressure PSI 175.0 psi Max Temp °F 140.0 °F
Backflow Protection Both Options Test Cocks
Min Temp °F 33.0 °F Assembly Type RPZ
Hazard Rating High Health Hazard ASSE Standard ASSE 909, ASSE 1013
USC Approved Yes Testable Yes
Test Cocks 4 Shutoff Valve Type Quarter-Turn Ball
Orientation Horizontal & Vertical ——

Certifications & Standards

ASSE-909 ASSE-1013
CSA-B64 USC
IAPMO —
