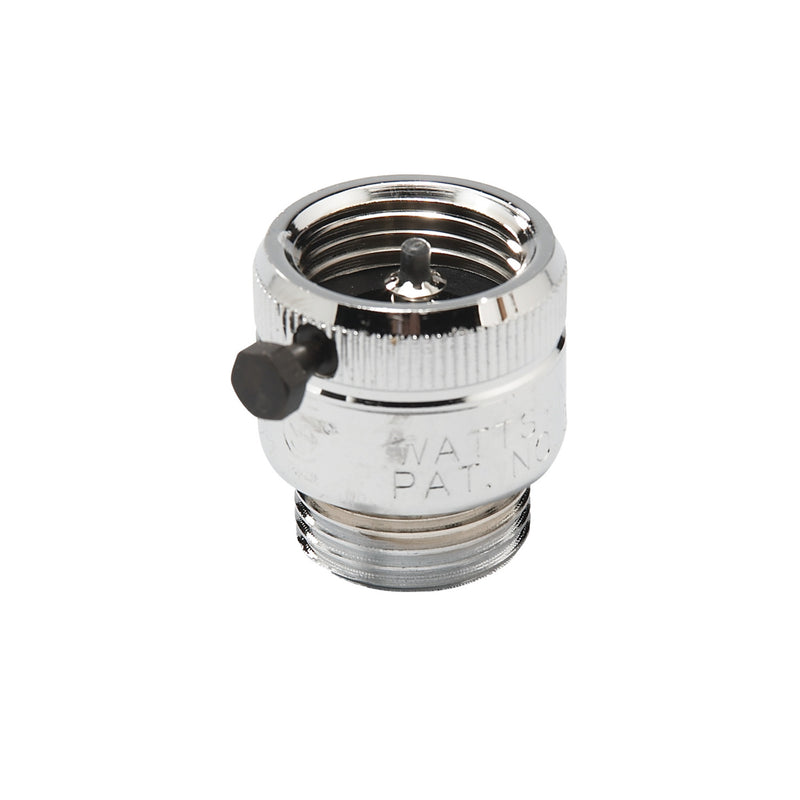

Watts LF8C 3/4 Lead-Free Anti-Siphon Vacuum Breaker, NPT

The Watts LF8C 3/4 is a 3/4" lead-free anti-siphon (atmospheric) vacuum breaker with NPT connections, approved for high health hazard protection. It features a rubber seat. Rated to 125 psi and 33°F to 180°F. This model is certified lead-free for potable-water installations.

This 3/4 inch lead free hose connection vacuum breaker backflow preventer permits the attachment of portable hoses to hose thread faucets and prevents the reverse flow of polluted water into the potable water supply due to backsiphonage. It consists of a lead free body construction, stainless steel working parts, and a rubber diaphragm and disc. It is ideal for inside and outside, health hazard installations requiring non-continuous pressure such as service sinks, swimming pools, photo developing tanks, laundry tubs, wash racks, dairy barns, marinas, and general outside gardening uses. Check with local inspection authorities for installation requirements. Maximum pressure is 125 psi (8.6 bar).

Features

• Lead Free construction
• Durable rubber diaphragm and disc for consistent positive seating
• Allen set screw
• No special tools required for servicing

Common Questions

What hazard level is this AVB approved for?

It is rated for high health hazard (toxic) cross-connections, but only against backsiphonage. The assembly is listed to ASSE 1011.

Is this model legal for potable water?

Yes. It is certified lead-free to NSF/ANSI 372, which is what state plumbing codes require for any device in a drinking-water line.

Can this device be field tested?

No. It has no test cocks and is not a testable assembly, so it cannot be certified by a backflow tester. Where a jurisdiction requires an annually tested device, specify a testable assembly (double check, RPZ, or PVB) instead.

Will this protect against backpressure?

No. An anti-siphon (atmospheric) vacuum breaker protects against backsiphonage only. It will not stop backflow caused by backpressure — a downstream pump, elevated piping or a boiler — which requires a double check or RPZ assembly. It also may not be used under continuous pressure: the supply downstream of it must not stay pressurized for more than 12 hours in any 24-hour period.

Specifications

• Type: AVB
• Size: 3/4"
• Inlet Size: 3/4"
• Outlet Size: 3/4"
• Connection: NPT
• Seat / Seal Material: Rubber
• Max Pressure (psi): 125
• Application: Domestic Water
• Backflow Protection: Backsiphonage
• Operation: Non-Continuous
• Pack Quantity: 72
• Country of Origin: Mexico
• Warranty: 1 Year Limited
• MPN: LF8C 3/4
• Temperature: 33°F to 180°F
• Certifications: ASSE-1011, ANSI-A112.1.3, IAPMO
• Lead-Free: Yes
• Assembly Type: AVB
• Hazard Protection Level: High Health Hazard
• ASSE Standard: ASSE 1011
• USC FCCCHR Approved: No
• Field Testable: No
• Number of Test Cocks: 0
• Shutoff Valves: None
• Flood Sensor (SentryPlus Alert): No
• Strainer Included: No
• Air Gap Fitting Included: No
