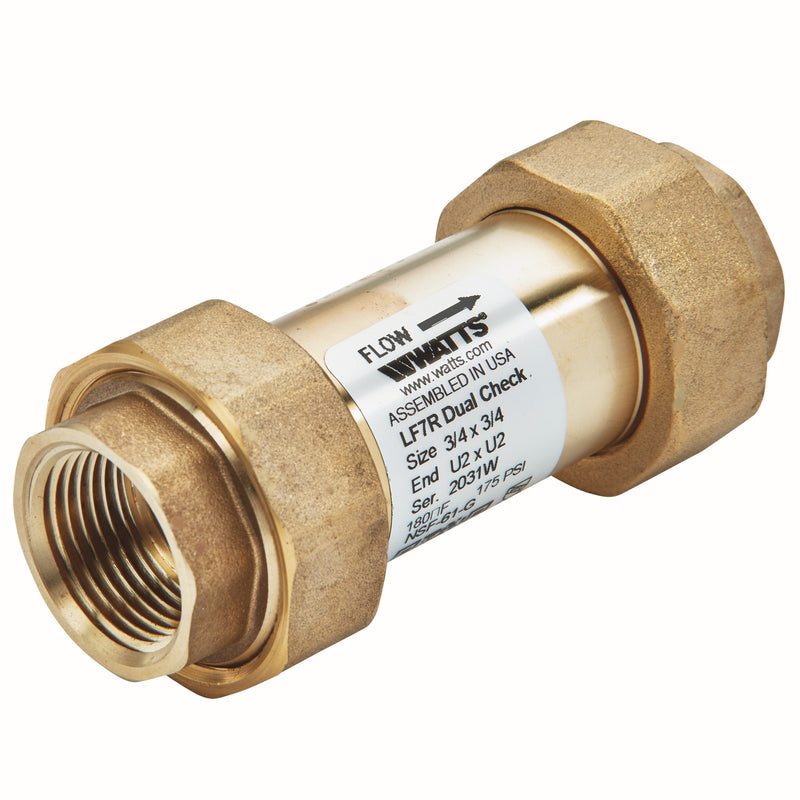

Watts LF7RU2-U2 3/4 X 3/4 Lead-Free Dual Check Valve Backflow Preventer, Copper, FNPT

The Watts LF7RU2-U2 3/4 X 3/4 is a 3/4" lead-free dual check valve with FNPT connections, approved for low health hazard protection. It features a copper body and a epdm seat. Rated to 175 psi. This model is certified lead-free for potable-water installations.

This 3/4 by 3/4 inch lead free dual check valve backflow preventer helps prevent the reverse flow of polluted water from entering into the drinking water supply at the service entrance or at individual outlets. This valve consists of a lead free brass body construction, 3/4 inch union female NPT inlet by 3/4 union female NPT outlet, two plastic replaceable check valves, and stainless steel springs. It is designed for non-health hazard residential water system containment, continuous pressure applications and is to be installed immediately downstream of the residential water meter, in a vertical or horizontal position. The minimum working pressure is 10 psi (69 kPa) and maximum working pressure is 175 psi (12 bar).

Features

• Lead free brass body for durability
• Can be installed vertically or horizontally
• Compact design
• Meets ANSI/ASSE Standard 1024

Common Questions

What hazard level is this Dual Check approved for?

It is rated for low health hazard (non-toxic, "pollutant") cross-connections only. Where the substance downstream could be a health hazard, codes require a reduced pressure zone (RPZ) assembly instead. The assembly is listed to ASSE 1024.

Is this model legal for potable water?

Yes. It is certified lead-free to NSF/ANSI 372, which is what state plumbing codes require for any device in a drinking-water line.

Can this device be field tested?

No. It has no test cocks and is not a testable assembly, so it cannot be certified by a backflow tester. Where a jurisdiction requires an annually tested device, specify a testable assembly (double check, RPZ, or PVB) instead.

How does this have to be installed?

It is approved for either horizontal or vertical installation, with the flow arrow on the body pointing in the direction of flow.

Specifications

• Type: Dual Check
• Size: 3/4"
• Inlet Size: 3/4"
• Outlet Size: 3/4"
• Connection: FNPT
• Body Material: Copper
• Seat / Seal Material: EPDM
• Max Pressure (psi): 175
• Application: Domestic Water
• Backflow Protection: Backpressure
• Operation: Continuous
• Pack Quantity: 25
• Country of Origin: United States
• Warranty: 1 Year Limited
• MPN: LF7RU2-U2 3/4 X 3/4
• Certifications: ASSE-1024
• Lead-Free: Yes
• Assembly Type: Dual Check
• Hazard Protection Level: Low Health Hazard
• ASSE Standard: ASSE 1024
• USC FCCCHR Approved: No
• Field Testable: No
• Number of Test Cocks: 0
• Shutoff Valves: None
• Approved Orientation: Horizontal & Vertical
• Flood Sensor (SentryPlus Alert): No
• Strainer Included: No
• Air Gap Fitting Included: No
