Specifications
Description

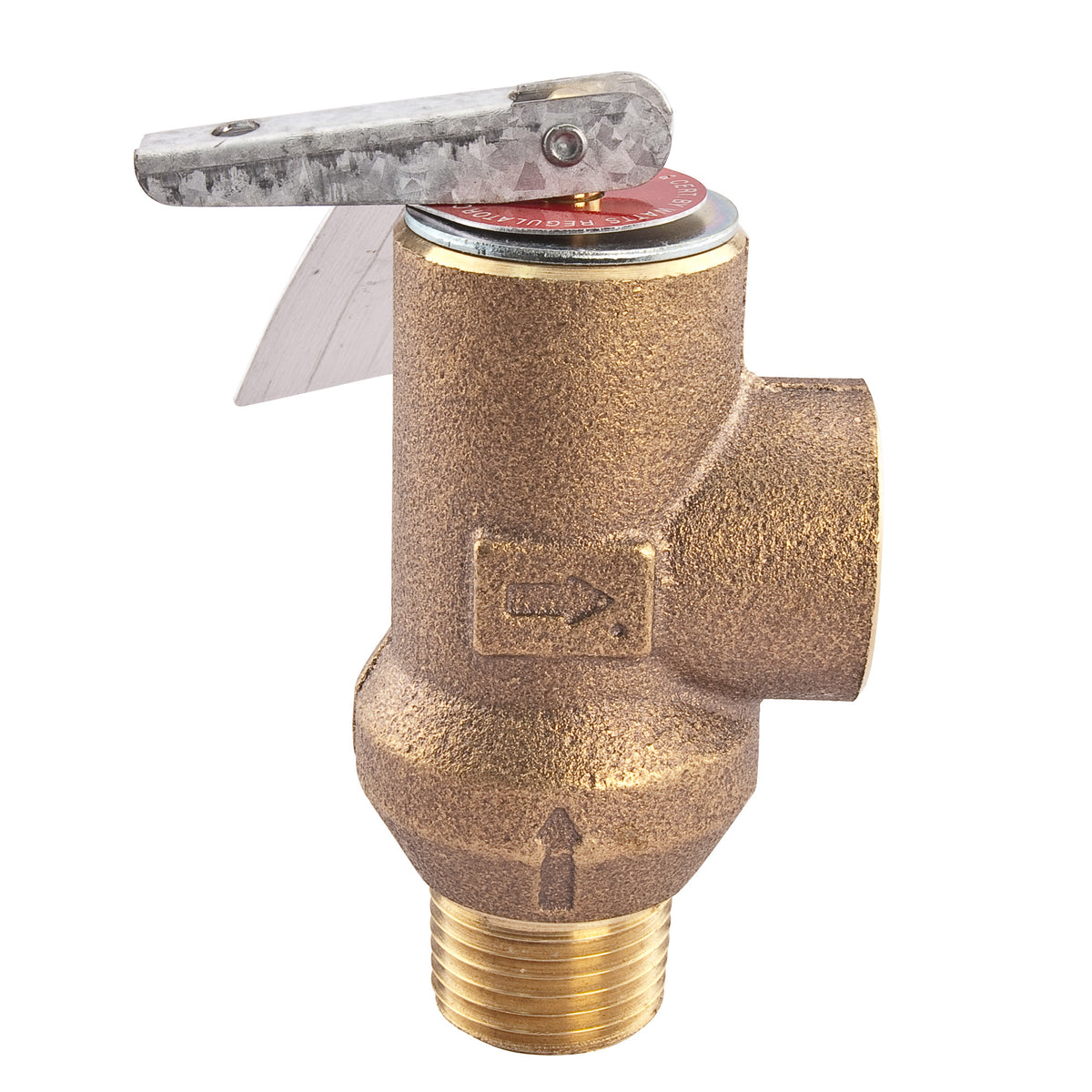

The Watts LF53L-125 1/2 is a 1/2" lead-free pressure relief valve for tankless / thermal expansion service, factory set at 125 psi. It is rated to 150 psi. This model is certified lead-free for potable-water installations.
This 1/2 inch lead free pressure relief valve is used in residential applications to protect against excessive pressure on domestic storage tanks and tankless water heaters. It consists of a lead free copper silicon alloy body construction with NPT threaded male inlet and NPT threaded female (drain) outlet, test lever, and stainless steel spring. It is ANSI Z21.22 approved, listed and certified by CSA. The pressure relief is set at 125 psi (8.6 bar).
Features
- Lead free copper silicon alloy body construction
- CSA certified
- Relieves excessive pressure on tankless water heaters
- Test lever included
Common Questions
- What pressure is this valve set to?
- It is factory set to relieve at 125 psi. The setting is fixed and is not field-adjustable. Note the 150 psi figure in the specifications is the maximum of the series' pressure range — the ceiling the body is built for, not this valve's relief point. This valve opens at 125 psi. Match it to the appliance nameplate: the relief setting must not exceed the working pressure stamped on the vessel you are protecting.
- Can I use this on potable water?
- Yes. It is certified lead-free to NSF/ANSI 372, which is what plumbing codes require for any device in a drinking-water line.
- Does the discharge have to be piped?
- Yes. Codes require the outlet to be piped full-size to a safe point of discharge, terminating with an air gap and no valve, cap, or reducer anywhere in the line — a relief valve that cannot discharge freely is not protecting anything. The manual test lever should be operated at least annually to confirm the valve is not seized.
Specifications
- Type: Relief
- Size: 1/2"
- Inlet Size: 1/2"
- Outlet Size: 1/2"
- Connection: NPT
- Max Pressure (psi): 150
- Pack Quantity: 50
- Country of Origin: United States
- Warranty: 1 Year Limited
- MPN: LF53L-125 1/2
- Certifications: ANSI Z21.22, CSA 4.4
- Lead-Free: Yes
- Relief Type: Pressure Only
- Factory Set Pressure (psi): 125
- Application: Tankless / Thermal Expansion
- Shank Length: Standard
- Connection Configuration: MNPT inlet x FNPT outlet
- Manual Test Lever: Yes
- Approved for Potable Water: Yes
- SentryPlus Alert Flood Sensor: No
Product Information
Dimensions
| Size Nominal | 1/2" | Inlet Size | 1/2" |
| Outlet Size | 1/2" | End Connection | NPT |
| Shank Length | Standard | — | — |
Details
| Series | LF53L | Device Type | Relief |
| Lead Free | Yes | Max Pressure PSI | 150.0 psi |
| Pack Qty | 50 | Relief Type | Pressure Only |
| Set Pressure PSI | 125.0 psi | Application Class | Tankless / Thermal Expansion |
| Connection Config | MNPT inlet x FNPT outlet | Test Lever | Yes |
| Potable Approved | Yes | — | — |
Certifications & Standards
| ANSI Z21.22 | CSA 4.4 |
Compare with similar products
| Relief Type | Pressure Only
| Pressure Only
| Pressure Only
| Pressure Only
| Pressure Only
| Pressure Only
|
| Set Pressure PSI | 125.0 psi | 125.0 psi | 125.0 psi | 150.0 psi | 150.0 psi | 75.0 psi |
| Application Class | Tankless / Thermal Expansion
| Tankless / Thermal Expansion
| Tankless / Thermal Expansion
| Tankless / Thermal Expansion
| Tankless / Thermal Expansion
| Tankless / Thermal Expansion
|
| Shank Length | Standard
| Standard
| Standard
| Standard
| Standard
| Standard
|
| Connection Config | MNPT inlet x FNPT outlet
| MNPT inlet x FNPT outlet
| MNPT inlet x FNPT outlet
| MNPT inlet x FNPT outlet
| MNPT inlet x FNPT outlet
| MNPT inlet x FNPT outlet
|
| Test Lever | Yes | — | Yes | — | Yes | Yes |
| Potable Approved | Yes | — | — | — | Yes | Yes |
| Series | LF53L
| 111
| 53L
| 53
| LF53L
| LF3L
|
| Country Of Origin | United States
| United States
| United States
| United States
| United States
| United States
|
| Warranty | 1 Year Limited
| 1 Year Limited
| 1 Year Limited
| 1 Year Limited
| 1 Year Limited
| 1 Year Limited
|
| Spec Sheet | — | |||||
| Install Sheet | — | |||||
| Device Type | Relief
| Relief
| Relief
| Relief
| Relief
| Relief
|
| Size Nominal | 1/2"
| 1/2"
| 1/2"
| 3/4"
| 1/2"
| 3/4"
|
| Inlet Size | 1/2"
| 1/2"
| 1/2"
| 3/4"
| 1/2"
| 3/4"
|
| Outlet Size | 1/2"
| 1/2"
| 1/2"
| 3/4"
| 1/2"
| 3/4"
|
| Lead Free | Yes | — | — | — | Yes | Yes |
| End Connection | NPT
| MNPT
| MNPT
| NPT
| MNPT
| NPT
|
| Body Material | — | Bronze
| Bronze
| Bronze
| — | — |
| Max Pressure PSI | 150.0 psi | 125.0 psi | 150.0 psi | 175.0 psi | 150.0 psi | 150.0 psi |
| Certifications | ANSI Z21.22, CSA 4.4
| — | ANSI Z21.22, CSA 4.4
| ANSI Z21.22, CSA 4.4
| ANSI Z21.22, CSA 4.4
| ASME Section XIII (HV), ANSI Z21.22, CSA 4.4
|
| Pack Qty | 50
| 50
| 50
| 50
| 50
| 50
|
