Specifications
Description

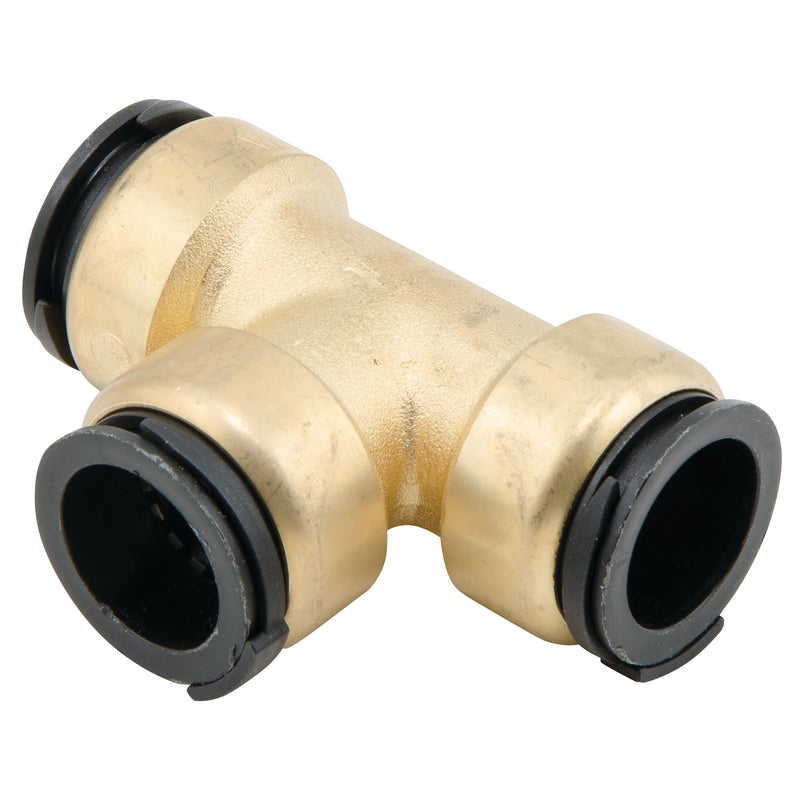

The Watts LF4723-10 is a lead-free brass Push-to-Connect (CTS) tee. It features a brass body. This model is certified lead-free for potable-water installations.
This 1/2 inch CTS AquaLock™ brass tee works with copper, CPVC, PEX, and CTS rated pipe. It is easy to install, no tools or tube inserts are required. The fitting can be used for hot and cold water applications. The unique O-ring guide feature provides a zero-leak connection. Unlike barb fittings, this fitting joins the tubing on the outside, increasing the flow capacity. After a connection has been made even under maximum pressure, the tubing is able to swivel, making the fitting ideal for vibrating and dynamic applications.
Features
- No tools required for installation or removal
- Rotates under pressure after installed for high flexibility during installation
- Can be used for hot and cold water applications, including behind the wall applications
- Works with copper, CPVC, PEX, and CTS rated pipe
- Zero-leak connections
- 25-year limited warranty
Common Questions
- How does it join the pipe?
- It is a Push-to-Connect (CTS) fitting.
- What is it made of?
- The body is brass. It is certified lead-free for potable water.
Specifications
- Size: 1/2"
- Inlet Size: 1/2"
- Outlet Size: 1/2"
- Connection: PEX
- Body Material: Brass
- Pack Quantity: 120
- Country of Origin: Thailand
- Warranty: 1 Year Limited
- MPN: LF4723-10
- Certifications: NSF-61, NSF-14, CSA-B137.5
- Lead-Free: Yes
- Fitting Type: Tee
- Connection System: Push-to-Connect (CTS)
Please note: this item is sold in multiples of 12 units. Orders must be placed in quantities of 12, 24, 36, etc.
Product Information
| SKU | UPC | Country of Origin | Warranty | Spec Sheet |
|---|---|---|---|---|
| 0472035 | 098268022315 | Thailand | 1 Year Limited | Download |
Dimensions
| Size Nominal | 1/2" | Inlet Size | 1/2" |
| Outlet Size | 1/2" | End Connection | PEX |
Details
| Series | Tee LF4723 | Lead Free | Yes |
| Body Material | Brass | Pack Qty | 120 |
| Connection system | Push-to-Connect (CTS) | Fitting type | Tee |
Certifications & Standards
| NSF-61 | NSF-14 |
| CSA-B137.5 | — |
Compare with similar products
| Series | Tee LF4723
| Tee LF4723
| Tee 3523
| QQPT443X
| QQPT434X
|
| Country Of Origin | Thailand
| China
| China
| — | — |
| Warranty | 1 Year Limited
| 1 Year Limited
| 1 Year Limited
| — | — |
| Spec Sheet | |||||
| Install Sheet | — | — | — | ||
| Device Type | — | — | — | Qick Sert CR® Large Diameter Polymer Tee
| Qick Sert CR® Large Diameter Polymer Tee
|
| Size Nominal | 1/2"
| 3/4"
| 1/2"
| 3/4"
| 3/4"
|
| Inlet Size | 1/2"
| 3/4"
| 1/2"
| — | — |
| Outlet Size | 1/2"
| 3/4"
| 1/2"
| — | — |
| Lead Free | Yes | Yes | — | Yes | Yes |
| End Connection | PEX
| PEX
| PEX
| Barb
| Barb
|
| Body Material | Brass
| Brass
| Polyethylene
| Acetal
| Acetal
|
| Max Pressure PSI | — | — | — | 160.0 psi | 160.0 psi |
| Certifications | NSF-61, NSF-14, CSA-B137.5
| NSF-61, NSF-14, CSA-B137.5
| NSF-61, NSF-14, CSA-B137.5, CSA
| ASTM F2159, ASTM F877, CSA-B137.5, NSF-14, NSF-61
| ASTM F2159, ASTM F877, CSA-B137.5, NSF-14, NSF-61
|
| Pack Qty | 120
| 50
| 30
| — | — |
