Specifications
Description

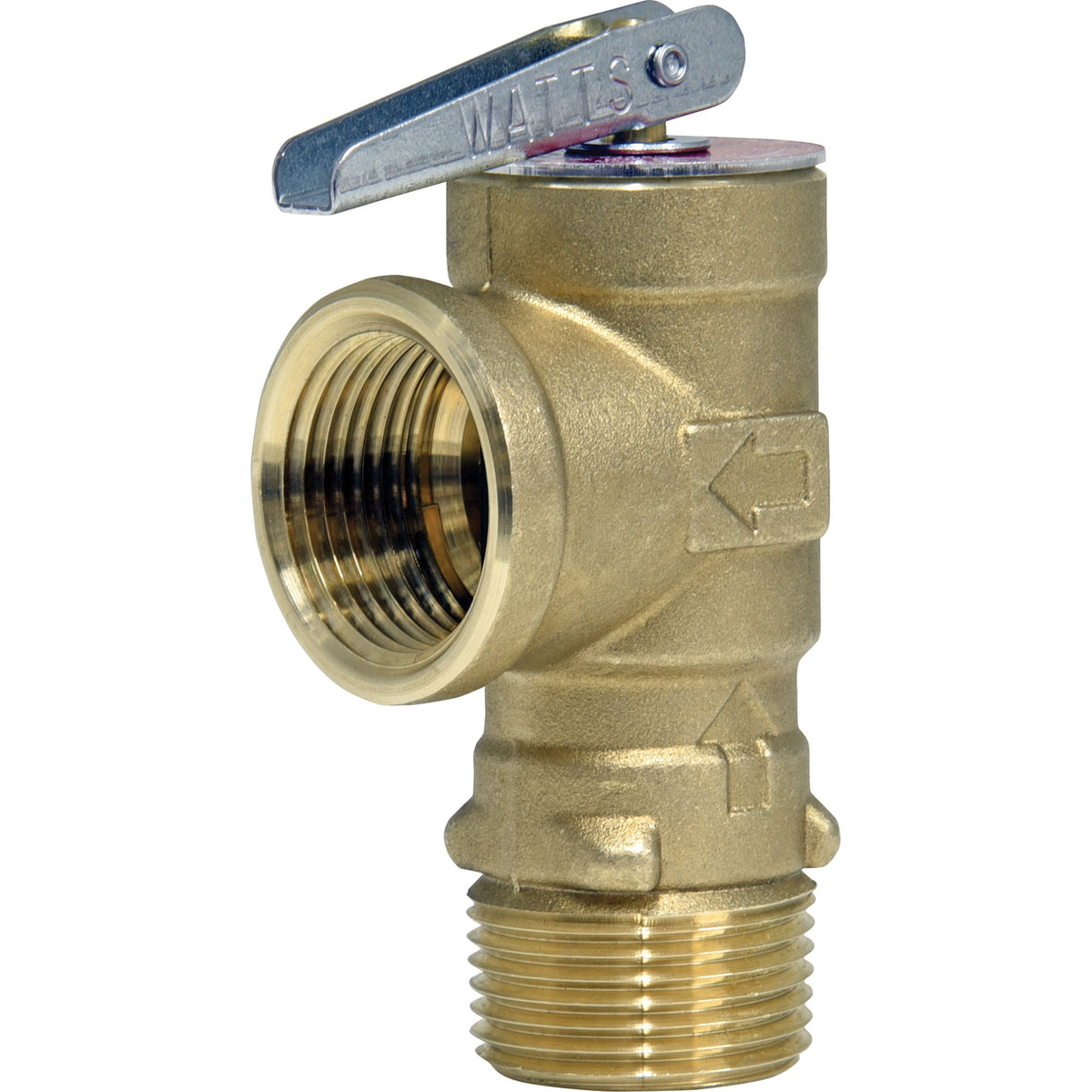

The Watts LF3L-150-Z9 3/4 is a 3/4" lead-free pressure relief valve for tankless / thermal expansion service, factory set at 150 psi. It is rated to 150 psi. This model is certified lead-free for potable-water installations.
This 3/4 inch lead free pressure relief valve is used in residential applications to protect against excessive pressure on storage tanks and tankless water heaters used in outside solar applications. It consists of a lead free copper alloy body construction with NPT threaded male inlet and NPT threaded female (drain) outlet, stainless steel test lever, pin and spring. It is ANSI Z21.22 approved, ASME rated and design certified and listed by CSA. The pressure relief is set at 150 psi (10.3 bar).
Features
- Lead free copper alloy body construction
- Test lever included
- For solar applications
- ASME rated and CSA certified
Common Questions
- What pressure is this valve set to?
- It is factory set to relieve at 150 psi. The setting is fixed and is not field-adjustable.
- Is this ASME rated?
- Yes. It is ASME rated and carries the "HV" code symbol under ASME BPVC Section XIII (the section that replaced Section IV for overpressure protection), and it is National Board (NBBI) certified. It is also ANSI Z21.22 / CSA 4.4 approved, which is the listing water heater relief valves are required to carry. Inspectors look for that stamp on the valve body, and it is there.
- Can I use this on potable water?
- Yes. It is certified lead-free to NSF/ANSI 372, which is what plumbing codes require for any device in a drinking-water line.
- Does the discharge have to be piped?
- Yes. Codes require the outlet to be piped full-size to a safe point of discharge, terminating with an air gap and no valve, cap, or reducer anywhere in the line — a relief valve that cannot discharge freely is not protecting anything. The manual test lever should be operated at least annually to confirm the valve is not seized.
Specifications
- Type: Relief
- Size: 3/4"
- Inlet Size: 3/4"
- Outlet Size: 3/4"
- Connection: NPT
- Max Pressure (psi): 150
- Pack Quantity: 50
- Country of Origin: United States
- Warranty: 1 Year Limited
- MPN: LF3L-150-Z9 3/4
- Certifications: ASME Section XIII (HV), ANSI Z21.22, CSA 4.4
- Lead-Free: Yes
- Relief Type: Pressure Only
- Factory Set Pressure (psi): 150
- ASME Code Rating: ASME Section XIII (HV)
- Application: Tankless / Thermal Expansion
- Shank Length: Standard
- Connection Configuration: MNPT inlet x FNPT outlet
- Manual Test Lever: Yes
- Approved for Potable Water: Yes
- SentryPlus Alert Flood Sensor: No
Product Information
Dimensions
| Size Nominal | 3/4" | Inlet Size | 3/4" |
| Outlet Size | 3/4" | End Connection | NPT |
| Shank Length | Standard | — | — |
Details
| Series | LF3L | Device Type | Relief |
| Lead Free | Yes | Max Pressure PSI | 150.0 psi |
| Pack Qty | 50 | Relief Type | Pressure Only |
| Set Pressure PSI | 150.0 psi | ASME Rating | ASME Section XIII (HV) |
| Application Class | Tankless / Thermal Expansion | Connection Config | MNPT inlet x FNPT outlet |
| Test Lever | Yes | Potable Approved | Yes |
Certifications & Standards
| ASME Section XIII (HV) | ANSI Z21.22 |
| CSA 4.4 | — |
Compare with similar products
| Relief Type | Pressure Only
| Pressure Only
| Pressure Only
| Pressure Only
| Pressure Only
| Pressure Only
|
| Set Pressure PSI | 150.0 psi | 125.0 psi | 125.0 psi | 150.0 psi | 150.0 psi | 75.0 psi |
| ASME Rating | ASME Section XIII (HV)
| — | — | — | — | ASME Section XIII (HV)
|
| Application Class | Tankless / Thermal Expansion
| Tankless / Thermal Expansion
| Tankless / Thermal Expansion
| Tankless / Thermal Expansion
| Tankless / Thermal Expansion
| Tankless / Thermal Expansion
|
| Shank Length | Standard
| Standard
| Standard
| Standard
| Standard
| Standard
|
| Connection Config | MNPT inlet x FNPT outlet
| MNPT inlet x FNPT outlet
| MNPT inlet x FNPT outlet
| MNPT inlet x FNPT outlet
| MNPT inlet x FNPT outlet
| MNPT inlet x FNPT outlet
|
| Test Lever | Yes | — | Yes | — | Yes | Yes |
| Potable Approved | Yes | — | — | — | Yes | Yes |
| Series | LF3L
| 111
| 53L
| 53
| LF53L
| LF3L
|
| Country Of Origin | United States
| United States
| United States
| United States
| United States
| United States
|
| Warranty | 1 Year Limited
| 1 Year Limited
| 1 Year Limited
| 1 Year Limited
| 1 Year Limited
| 1 Year Limited
|
| Spec Sheet | — | |||||
| Install Sheet | — | |||||
| Device Type | Relief
| Relief
| Relief
| Relief
| Relief
| Relief
|
| Size Nominal | 3/4"
| 1/2"
| 1/2"
| 3/4"
| 1/2"
| 3/4"
|
| Inlet Size | 3/4"
| 1/2"
| 1/2"
| 3/4"
| 1/2"
| 3/4"
|
| Outlet Size | 3/4"
| 1/2"
| 1/2"
| 3/4"
| 1/2"
| 3/4"
|
| Lead Free | Yes | — | — | — | Yes | Yes |
| End Connection | NPT
| MNPT
| MNPT
| NPT
| MNPT
| NPT
|
| Body Material | — | Bronze
| Bronze
| Bronze
| — | — |
| Max Pressure PSI | 150.0 psi | 125.0 psi | 150.0 psi | 175.0 psi | 150.0 psi | 150.0 psi |
| Certifications | ASME Section XIII (HV), ANSI Z21.22, CSA 4.4
| — | ANSI Z21.22, CSA 4.4
| ANSI Z21.22, CSA 4.4
| ANSI Z21.22, CSA 4.4
| ASME Section XIII (HV), ANSI Z21.22, CSA 4.4
|
| Pack Qty | 50
| 50
| 50
| 50
| 50
| 50
|
