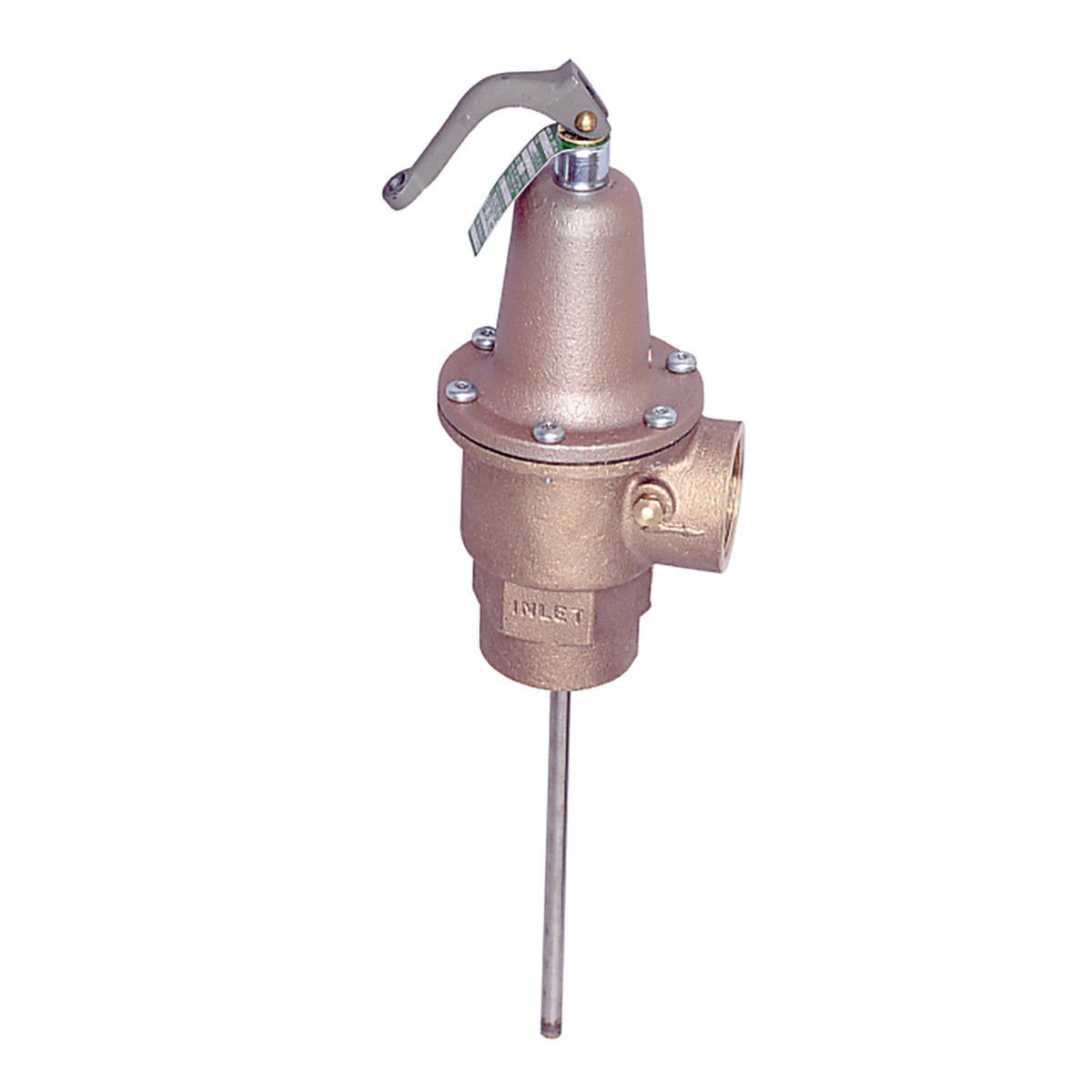

Watts LF340 150-210 1 1/2 Lead-Free Relief Valve, NPT

The Watts LF340 150-210 1 1/2 is a 1-1/2" lead-free temperature and pressure (T&P) relief valve for commercial water heater service, factory set at 150 psi and 210°F. It is rated to 150 psi and up to 210°F. This model is certified lead-free for potable-water installations.

This 1 1/2 inch lead free automatic reseating temperature and pressure relief valve with a 3 inch thermostat is installed directly in tank tapings and is used in commercial applications to provide automatic temperature and pressure protection for hot water supply tanks and hot water heaters. It features a lead free body with NPT male inlet and NPT female outlet connections, thermo-bonded coated thermostat, tamper resistant bonnet screws, automatic reseating feature, and test lever. The temperature relief is 210 degrees and the pressure relief is 150 psi.

Features

• Lead free construction
• Tamper resistant bonnet screws
• 3 Inch thermostat length
• Non-mechanical seat to disc alignment
• Includes: Tamper Switch

Common Questions

What pressure is this valve set to?

It is factory set to relieve at 150 psi and 210°F. The setting is fixed and is not field-adjustable.

Will it fit my water heater — what BTU input does it cover?

Sizing a T&P valve is a capacity question, not just a thread question: the valve's BTU/hr discharge rating must equal or exceed the input on the heater's data plate. Watts does not publish a capacity for this specific model in the data we carry, so check the BTU/hr figure on the valve's spec sheet against your heater's nameplate input before ordering. The 3" thermostat probe also has to reach the hot water in the tank — confirm it suits your tapping.

Is this ASME rated?

Yes. It is ASME rated and carries the "HV" code symbol under ASME BPVC Section XIII (the section that replaced Section IV for overpressure protection), and it is National Board (NBBI) certified. It is also ANSI Z21.22 / CSA 4.4 approved, which is the listing water heater relief valves are required to carry. Inspectors look for that stamp on the valve body, and it is there.

Can I use this on potable water?

Yes. It is certified lead-free to NSF/ANSI 372, which is what plumbing codes require for any device in a drinking-water line.

What thermostat length do I need?

This valve has a 3" thermostat probe. The probe must reach into the top 6" of the tank's stored water to sense temperature, so it has to match the depth of your tapping — too short and the valve never sees the overheat it exists to catch. Watts builds this series in several probe lengths; measure before ordering.

Does the discharge have to be piped?

Yes. Codes require the outlet to be piped full-size to a safe point of discharge, terminating with an air gap and no valve, cap, or reducer anywhere in the line — a relief valve that cannot discharge freely is not protecting anything. The manual test lever should be operated at least annually to confirm the valve is not seized.

Specifications

• Type: Relief
• Size: 1-1/2"
• Inlet Size: 1-1/2"
• Outlet Size: 1-1/2"
• Connection: NPT
• Max Pressure (psi): 150
• Pack Quantity: 6
• Country of Origin: United States
• Warranty: 1 Year Limited
• MPN: LF340 150-210 1 1/2
• Temperature: up to 210°F
• Certifications: ASME Section XIII (HV), NBBI, ANSI Z21.22, CSA 4.4
• Lead-Free: Yes
• Relief Type: Temperature & Pressure
• Factory Set Pressure (psi): 150
• Temperature Setting (°F): 210
• ASME Code Rating: ASME Section XIII (HV)
• Application: Commercial Water Heater
• Thermostat / Element Length (in.): 3
• Shank Length: Standard
• Connection Configuration: MNPT inlet x FNPT outlet
• Automatic Reseating: Yes
• Manual Test Lever: Yes
• Approved for Potable Water: Yes
• SentryPlus Alert Flood Sensor: No
