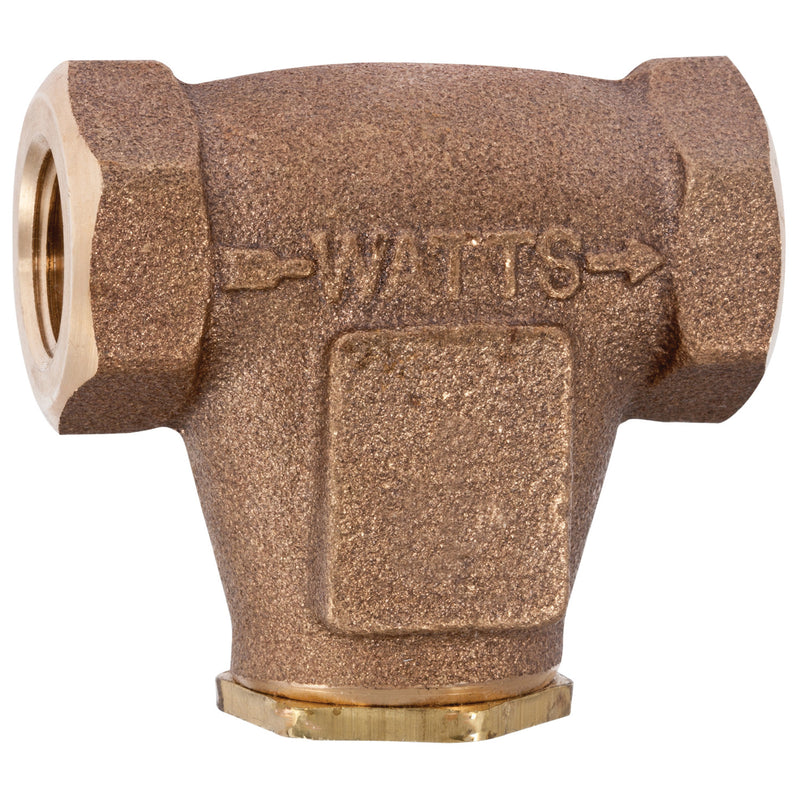

Watts LF27-40 3/8 Lead-Free Strainer, Copper, NPT

The Watts LF27-40 3/8 is a 3/8" lead-free v-pattern-pattern strainer with NPT connections that removes pipeline debris and particulates to protect downstream equipment. It ships with a 40 mesh 304 stainless steel screen. It features a copper body. Rated to 250 psi. This model is certified lead-free for potable-water installations.

This 3/8 inch lead free V-pattern strainer is designed to protect system components from dirt, rust, and other damaging debris in the piping system. This strainer is ideal for beverage dispensers, ice cube machines, dental equipment, instrument control systems, and similar applications. This assembly consists of a lead free body construction, threaded end connections, and a 40 mesh screen.

Features

• Lead free brass body
• V-pattern
• Threaded end connections
• Lead free brass retainer cap and gasket
• Includes: Strainer

Common Questions

What mesh or screen size does it come with?

LF27-40 3/8 ships with a 40 mesh 304 Stainless Steel screen (40 openings per linear inch). The screen is called out by the number in the model code.

Can I get a finer or coarser screen?

Yes. Watts builds this body with a range of screens and encodes the choice in the model number, so a finer or coarser screen is a different part number rather than an accessory. This one is 40 mesh. Finer screens catch smaller particles but clog faster and cost more pressure drop, so size the screen to the debris you actually have.

Does it have a blowoff / blowdown port?

No. This model has a solid retainer cap, so cleaning means removing the cap and lifting out the screen. If you want to blow the strainer down in place, order the tapped-cap version of this body instead.

Specifications

• Type: Strainer
• Size: 3/8"
• Connection: NPT
• Body Material: Copper
• Max Pressure (WOG, psi): 250
• Application: Domestic Water
• Pack Quantity: 50
• Country of Origin: United States
• Warranty: 1 Year Limited
• MPN: LF27-40 3/8
• Certifications: NSF-372
• Lead-Free: Yes
• Strainer Pattern: V-Pattern
• Screen Type: Mesh
• Screen Mesh: 40
• Screen Material: 304 Stainless Steel
• Blowoff / Drain Tapping: No
• Blowoff Plug Included: No
• Body Coating: None
• Alternate Screens Available: Yes
