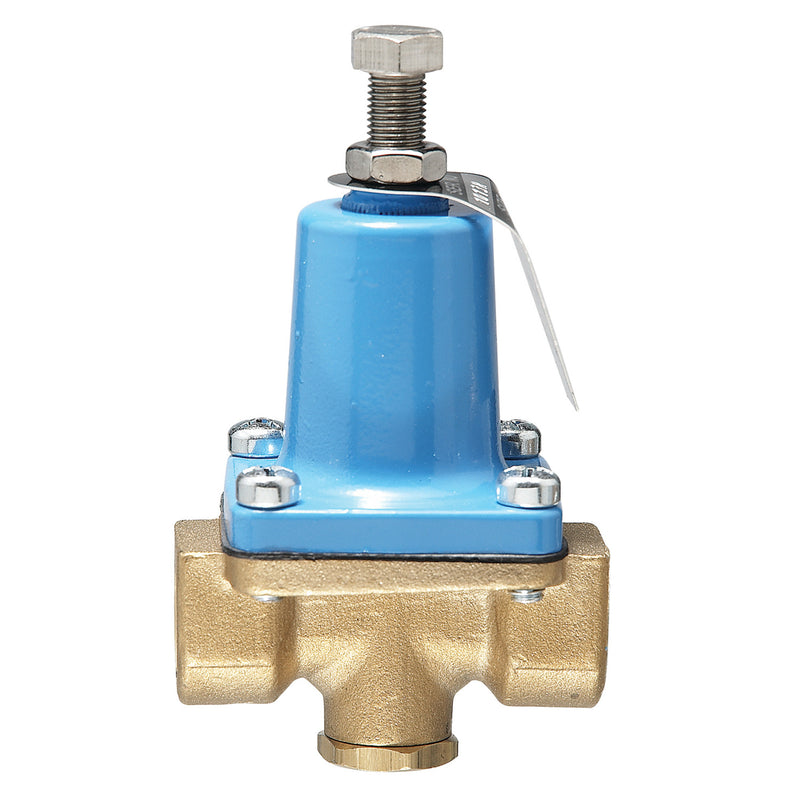

The Watts LF263AP 1/2 20-175 is a 1/2" lead-free pressure reducing valve. It reduces inlet pressure of up to 400 psi to an adjustable 20-175 psi downstream. It features a brass body and a buna-n seat. Rated to 400 psi. This model is certified lead-free for potable-water installations.
Features
- Lead free brass body construction
- Stainless steel stem and spring
- Oversized orifice
- Tee handle adjustment
Common Questions
- What pressure is it set to out of the box?
- The adjustable reduced-pressure range of LF263AP 1/2 20-175 is 20 to 175 psi. Verify the outlet setting with a gauge after installation and adjust to your target pressure.
- Does it include a strainer?
- No - LF263AP 1/2 20-175 does not have an integral strainer. On dirty or older supply lines, install a separate inline strainer upstream to keep debris off the seat.
- Does it come with a gauge?
- No - LF263AP 1/2 20-175 has no gauge and no gauge tapping. Set the outlet pressure using a gauge elsewhere on the downstream piping.
Specifications
-
Type: Pressure Regulator
-
Size: 1/2"
-
Inlet Size: 1/2"
-
Outlet Size: 1/2"
-
Body Material: Brass
-
Seat / Seal Material: Buna-N
-
Max Pressure (psi): 400
-
Shutoff: None
-
Country of Origin: United States
-
Warranty: 1 Year Limited
-
MPN: LF263AP 1/2 20-175
-
Lead-Free: Yes
-
Adjustable Range - Min (psi): 20
-
Adjustable Range - Max (psi): 175
-
Thermal Expansion Bypass: No
-
Integral Strainer: No
-
Gauge: None
-
Union Configuration: None
-
Capacity Class: Small Process
-
Regulated Media: Water
