Specifications
Description
The Watts LF WDS-E220 3/4 is a 3/4" lead-free FloodSafe water detector shutoff. It features a rubber seat. Rated to 150 psi and up to 210°F. This model is certified lead-free for potable-water installations.

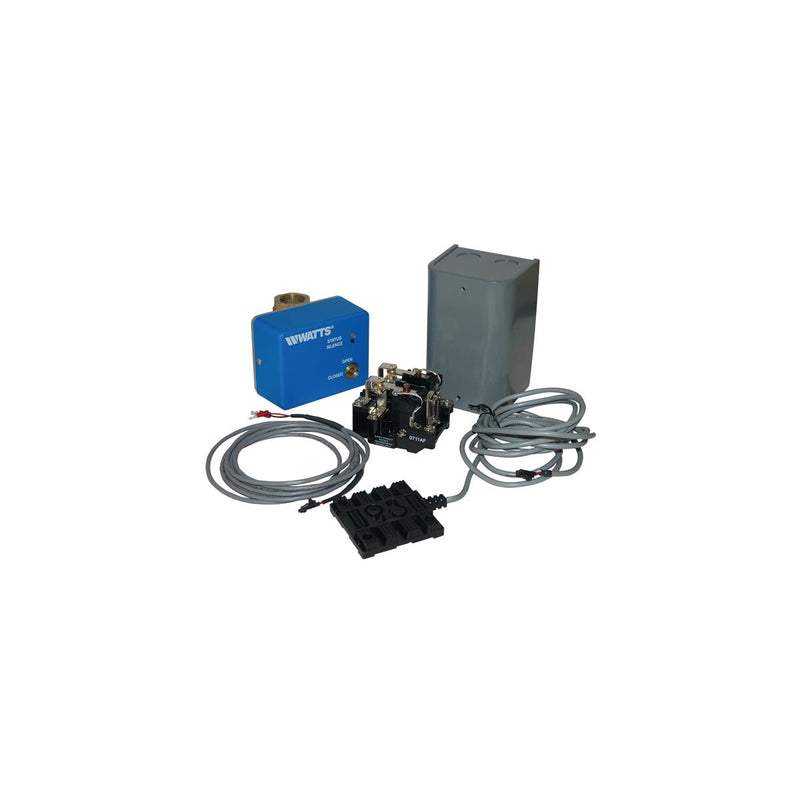

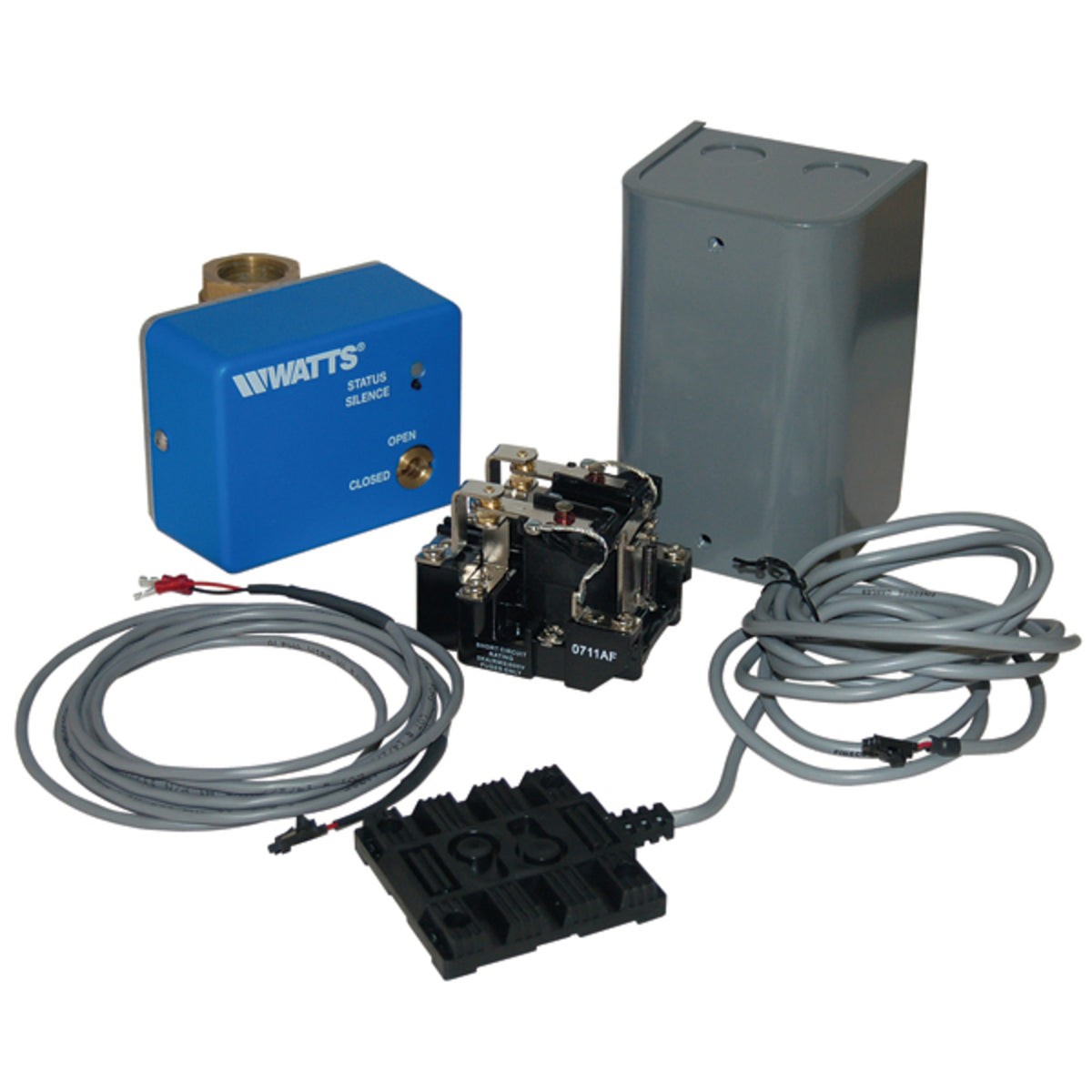

This FloodSafe® water detector shutoff protects the homeowner from catastrophic damage in the event of a water heater leak by using state of the art water detection technology. It detects the presence of water on the floor beneath the water heater and will automatically shut off the water supply and power source to the water heater. This 3/4 inch safety valve detector is easily testable and resettable by the contractor or homeowner to ensure proper operation. It consists of an integral control unit, a water dam, power supply, power cut-out module with electric 220 V pilot, and water detection pad.
Features
- Easily tested and reset to assure proper operation
- No terminals to corrode or to impair operation
- Provides contacts for monitored alarm detection systems
- Water dam included for concrete, linoleum, tile, or other hard surfaces
Common Questions
- How does it shut the water off?
- The FloodSafe sensor detects water on the floor under the heater and closes the valve, cutting the water supply and the power to the heater. It is testable and resettable, and provides contacts for a monitored alarm system.
- Is it approved for potable water?
- Yes. This is a Watts LF (lead-free) model, certified to NSF/ANSI 372 for potable-water service.
Specifications
- Type: Leak Detection Shutoff
- Size: 3/4"
- Inlet Size: 3/4"
- Outlet Size: 3/4"
- Seat / Seal Material: Rubber
- Max Pressure (psi): 150
- Application: Domestic Water
- Country of Origin: United States
- Warranty: 1 Year Limited
- MPN: LF WDS-E220 3/4
- Temperature: up to 210°F
- Certifications: NSF/ANSI 372
- Lead-Free: Yes
- Valve Style: Leak-Detection Shutoff
- Replacement Part: No
Product Information
Dimensions
| Size Nominal | 3/4" | Inlet Size | 3/4" |
| Outlet Size | 3/4" | — | — |
Details
| Series | LFWDS | Device Type | Leak Detection Shutoff |
| Lead Free | Yes | Seat Material | Rubber |
| Application | Domestic Water | Max Pressure PSI | 150.0 psi |
| Max Temp °F | 210.0 °F | Valve Style | Leak-Detection Shutoff |
Certifications & Standards
| NSF/ANSI 372 | — |
